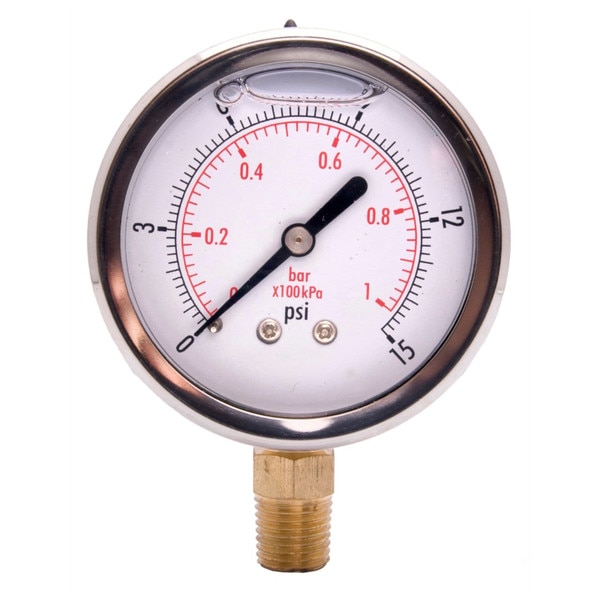

  • 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection

2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection

SKU: PBG204L

Manufacturer: DuraChoice

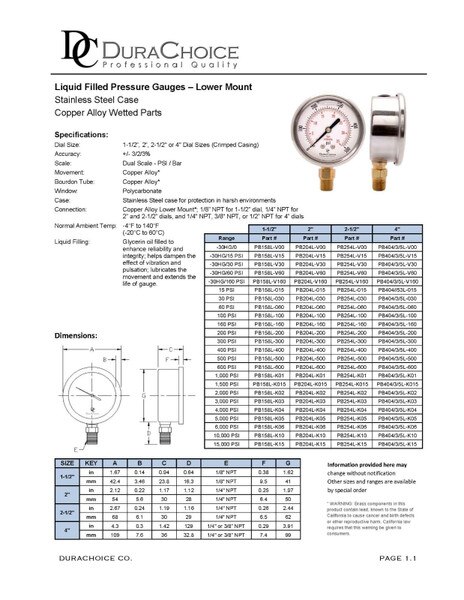

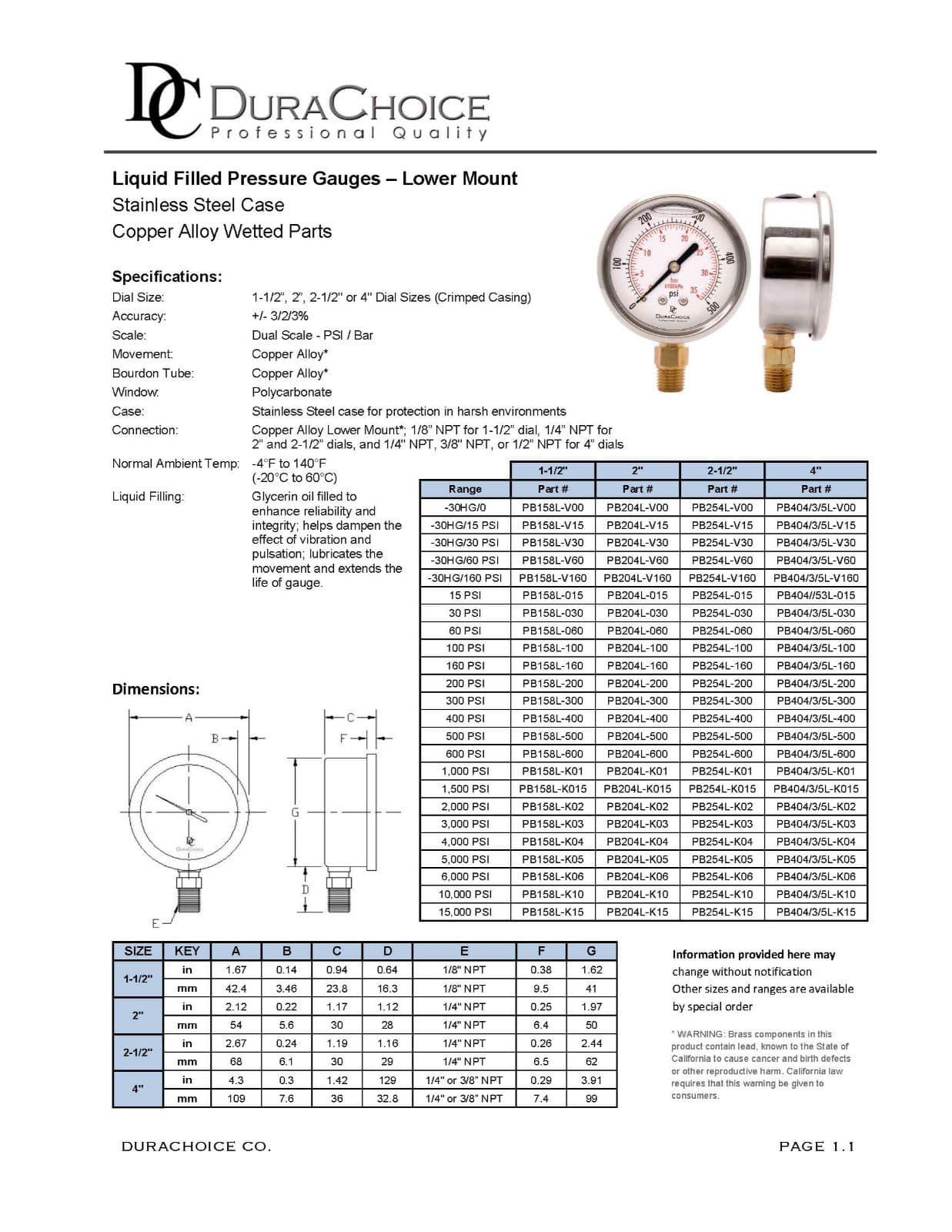

2" Liquid Filled Pressure Gauges - 1/4" NPT Lower Mount - OEM


Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)Â
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI / BarÂ
Movement: Copper Alloy*Â
Bourdon Tube: Copper Alloy*Â
Window: PolycarbonateÂ
Case: Stainless Steel case for protection in harsh environmentsÂ
Connection: Copper Alloy Lower Mount*; 1/8" NPT for 1-1/2" NPT for 4" dialsÂ
Normal Ambient Temp: -4 to +140 Degrees F (-20 to +60 Degrees C)Â
Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life gauge.Â


Please Note: Brass components in this product contain lead, known to the State o(more...)

2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection

SKU: PBG204L

Manufacturer: DuraChoice

From: $9.27 to $10.94
  • PBG204L-015 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection
    Qty. $9.27
  • PBG204L-160 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection
    Qty. $9.27
  • PBG204L-V00 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection
    Qty. $10.94
  • PBG204L-K015 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection
    Qty. $9.27
  • PBG204L-030 2" Oil Pressure Gauge - Stainless Steel Face, Brass, 1/4" NPT Lower Mount Connection
    Qty. $9.27
Items:0  |  Total:$0.00

DESCRIPTION

2" Liquid Filled Pressure Gauges - 1/4" NPT Lower Get the same DuraChoice Brand 2" liquid filled pressure gauges without the logo. These gauges offer outstanding performance in adverse conditions. Each manometer has a stainless steel case with a brass connection, bourdon tube and movement.Â

The liquid filling in these gauges is glycerin oil. It helps prevent vibration and pulsation which could damage the gauge.Â

They are available in pressure ranges from vacuum to 15000 PSI.

SpecificationsÂ
Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)Â
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI / BarÂ
Movement: Copper Alloy*Â
Bourdon Tube: Copper Alloy*Â
Window: PolycarbonateÂ
Case: Stainless Steel case for protection in (more...)
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
