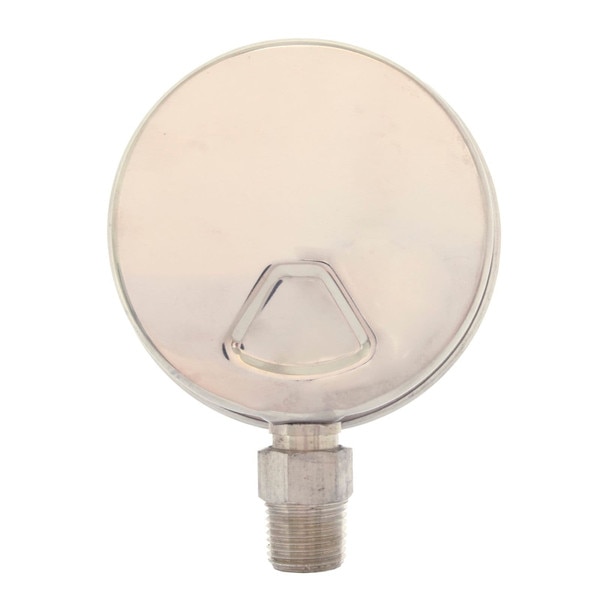

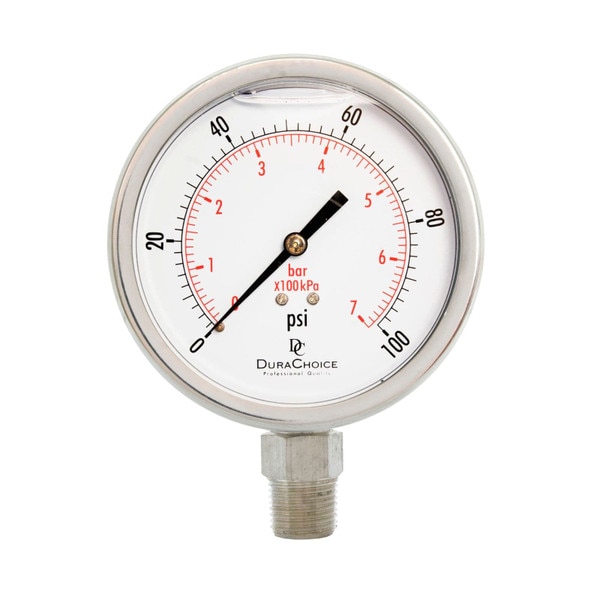

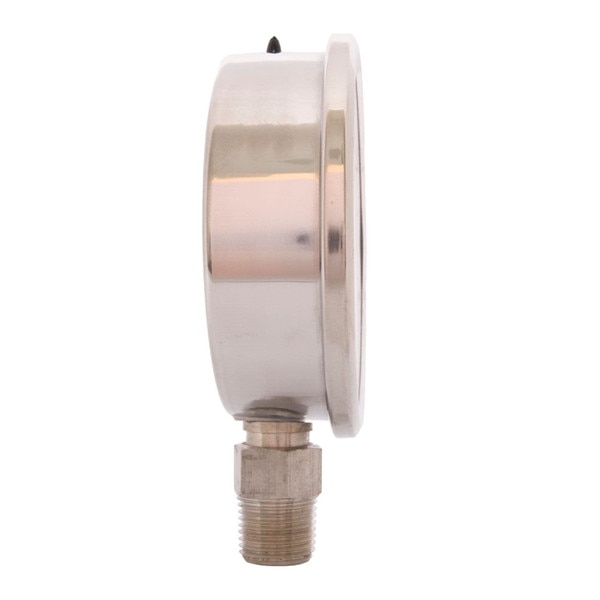

DuraChoice'a all stainless steel 4" liquid filled pressure gauges provides great corrosion resistance. This model features a 1/2" NPT stainless steel lower mount connection, bourdon tube, and movement. It is cased in stainless steel and filled with glycerin oil to help correct the effects of vibration and pulsation.

Gauges with pressure ranges from vacuum to 15000 PSI are available and work with water, oil, gas (WOG) or diesel.

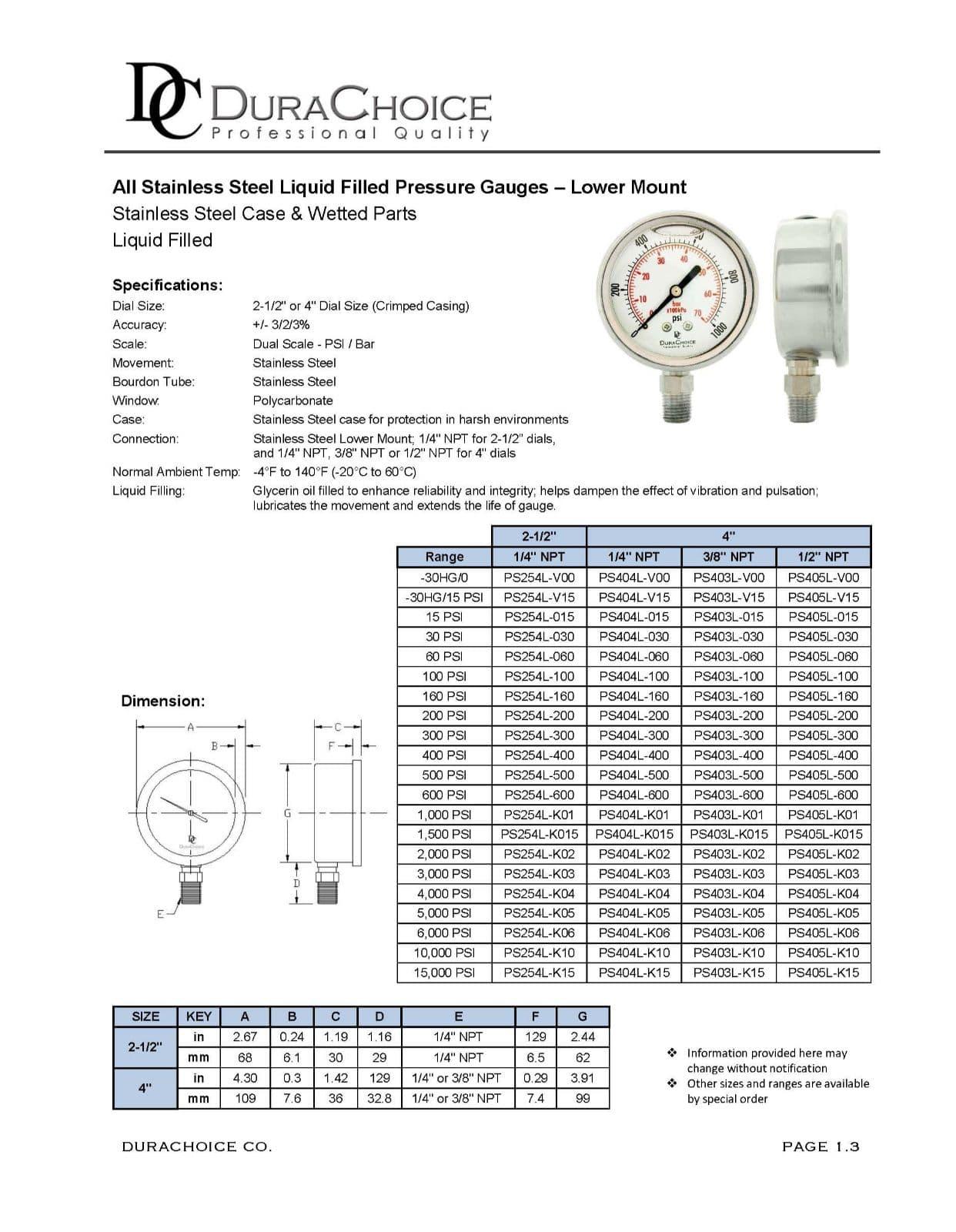

Features

• Dial Size: 2-1/2" or 4" Dial Size (Crimped Casing)
• Accuracy: +/- 3/2/3%
• Scale: Dual Scale - PSI/Bar
• Movement: Stainless Steel
• Bourdon Tube: Stainless Steel
• Window: Polycarbonate
• Case: Stainless Steel case for protection in harsh environments
• Connection: Stainless Steel Lower Mount; 1/4" NPT for 2-1/2" dials, and 1/4" NPT, 3/8" NPT or 1/2" NPT for 4" dials
• Normal Ambient Temp: -4F to +140F (-20C to +60C)
• Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
