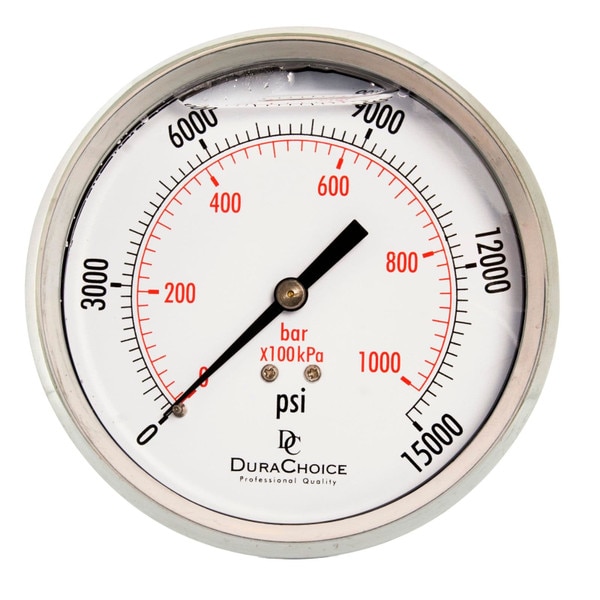

4" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT, Center Back Mount Connection

SKU: PS404B-K15

Manufacturer: DuraChoice

From: $36.09 to $36.09
  • PS404B-K15 4" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Center Back Mount 15000PSI
    Qty. $36.09
Items:0  |  Total:$0.00

DESCRIPTION

DuraChoice all stainless steel 4" liquid filled pressure gauges provide great corrosion resistance. This model features a 1/4" NPT stainless steel center back mount connection, bourdon tube, and movement. It is cased in stainless steel and filled with glycerin oil to help dampen the effects of vibration and pulsation.

This center back mount mount gauge is available in 15000 PSI. It can measure pressure in water, oil, gas and diesel. IP66 Rating.

Dial Size:4" Dial Size (Crimped Casing)
Accuracy:+/- 2/1/2%
Scale:Dual Scale - PSI / Bar

Movement:Stainless Steel
Bourdon Tube:Stainless Steel
Window:Polycarbonate
Case:Stainless Steel case for protection in harsh environments

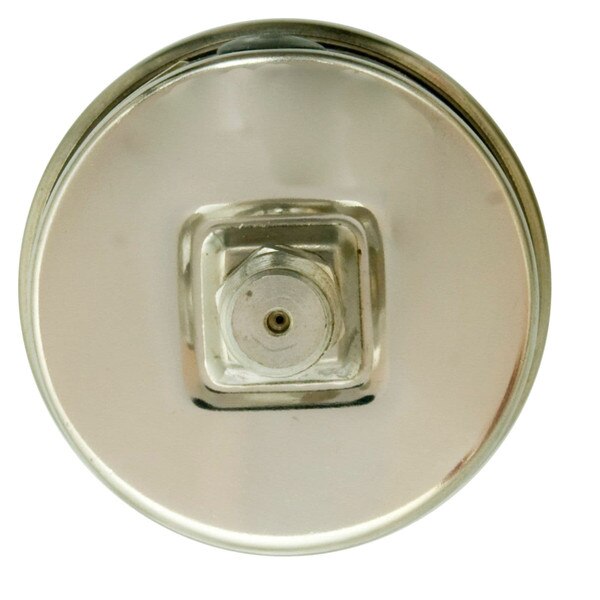

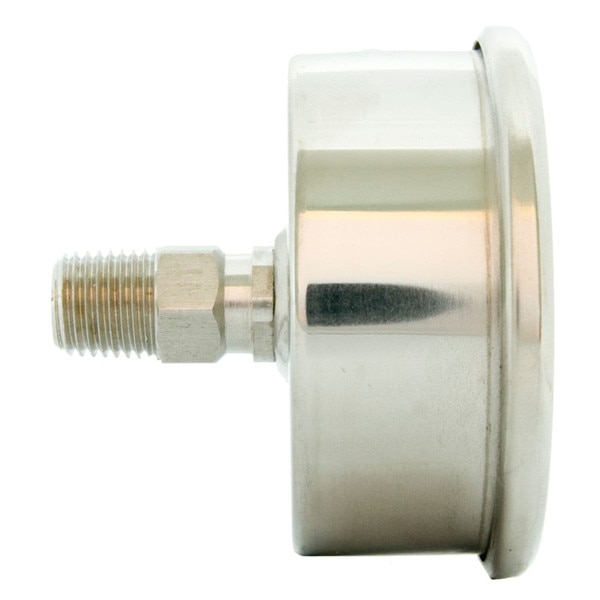

Connection:Stainless Steel Center Back Mount; 1/4" NPT (for 4" dial)
Normal Ambient Temp.:-4F to +140F (-20C to +60C)
Liquid Filling:Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
