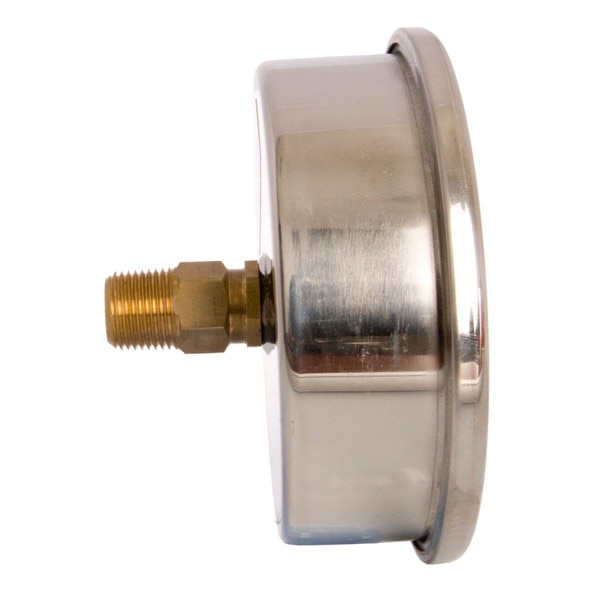

4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection

SKU: PB403B

Manufacturer: DuraChoice

2 Reviews
From: $25.93 to $31.19
  • PB403B-015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-15PSI Low Stock - Chat or Call to check
    Qty. $25.93
  • PB403B-030 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-30PSI
    Qty. $25.93
  • PB403B-060 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-60PSI
    Qty. $25.93
  • PB403B-100 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-100PSI
    Qty. $25.93
  • PB403B-160 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-160PSI
    Qty. $25.93
  • PB403B-200 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-200PSI
    Qty. $25.93
  • PB403B-300 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-300PSI
    Qty. $25.93
  • PB403B-600 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-600PSI
    Qty. $25.93
  • PB403B-K01 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-1000PSI
    Qty. $25.93
  • PB403B-K015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-1500PSI
    Qty. $25.93
  • PB403B-K02 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-2000PSI
    Qty. $25.93
  • PB403B-K05 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-5000PSI
    Qty. $25.93
  • PB403B-K06 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-6000PSI
    Qty. $25.93
  • PB403B-K10 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-10000PSI
    Qty. $29.33
  • PB403B-K15 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-15000PSI Low Stock - Chat or Call to check
    Qty. $29.33
  • PB403B-V00 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, -30HG/0PSI
    Qty. $29.33
  • PB403B-K03 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection, 0-3000PSI
    Qty. $31.19
  • PB403B-V160 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 3/8" NPT, Center Back Mount Connection Low Stock - Chat or Call to check
    Qty. $25.93
Items:0  |  Total:$0.00

DESCRIPTION

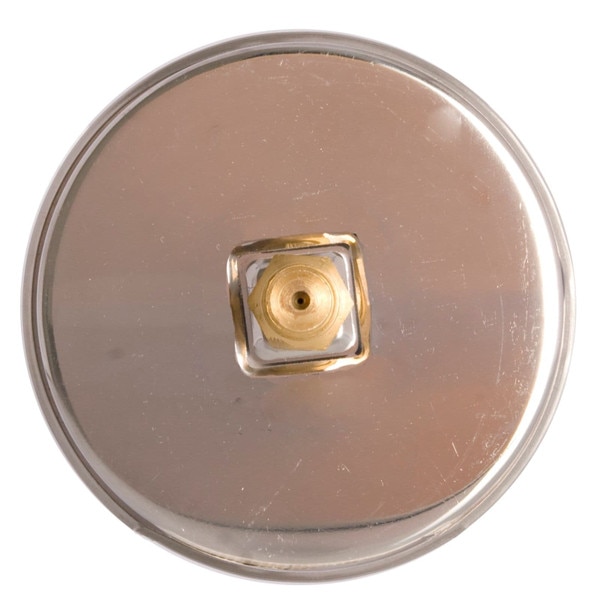

DuraChoice 4" liquid filled pressure gauges can be read easily from a distance and can take the rough working conditions you do. The gauge is glycerin oil filled to improve the gauge's life and limit the effects of pulsation and vibration. This model has a brass 3/8" NPT center back connection, which makes panel mounting more accessible.

It is available in pressure ranges from vacuum to 0-15000 PSI. Great for gauging pressure in water, gas, oil or diesel.


Dial Size: 4" Dial Size (Crimped Casing)

Accuracy: +/- 3/2/3%

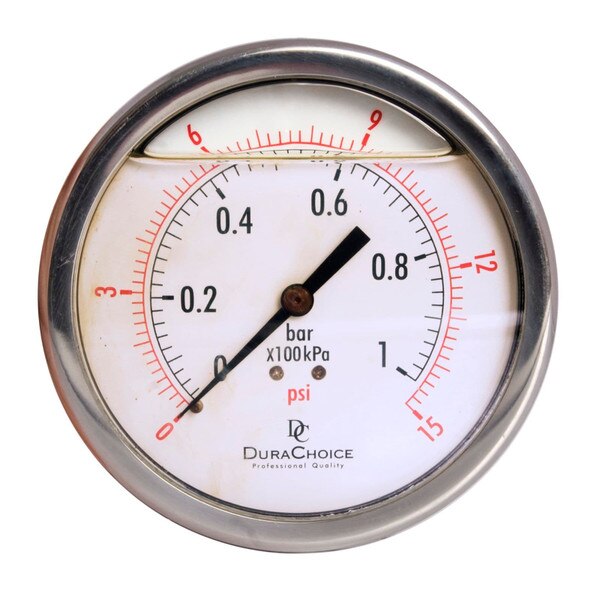

Scale: Dual Scale - PSI / Bar

Movement: Copper Alloy

Bourdon Tube:Copper Alloy

Window:Polycarbonate

Case:Stainless Steel case for protection in harsh environments

Connection:Copper Alloy Center Back Mount; 3/8" NPT (for 4" dial)

Normal Ambient Temp.:-4F to +140F (-20C to +60C)

Liquid Filling:Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.


Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
