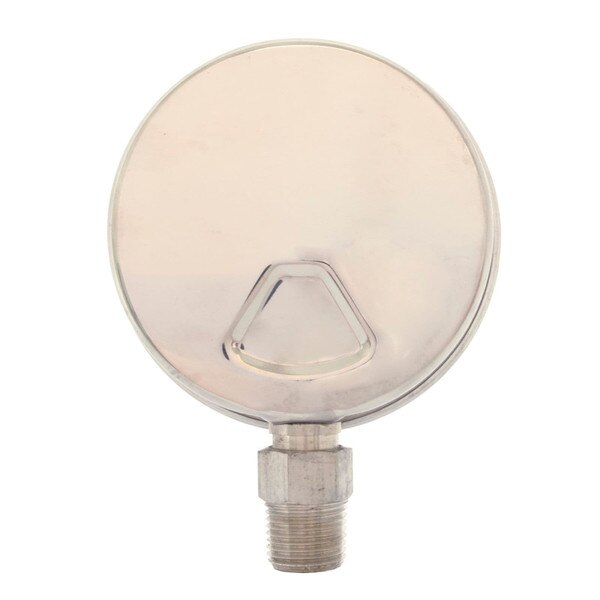

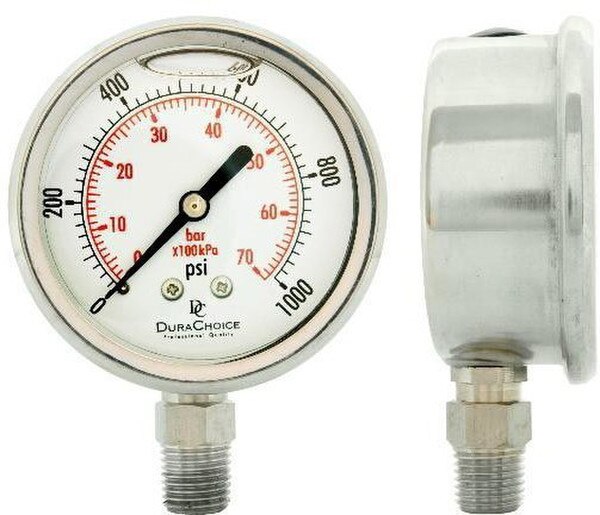

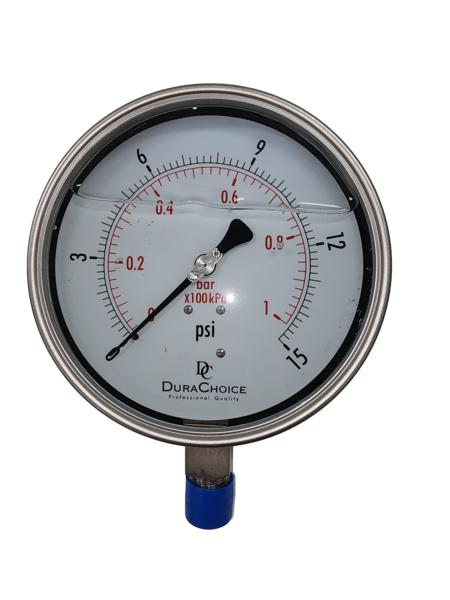

6" All SS Glycerin Fillable Pressure Gauge, 1/2" NPT, Lower Mount Connection
Manufacturer: Durachoice
6" All Stainless Steel Liquid Fillable Pressure Gauge, 1/2" NPT, Lower Mount Connection
Dial Size: 6" Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/Bar
Movement: Stainless Steel
Bourdon Tube: Stainless Steel
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Stainless Steel Lower Mount; 1/2" NPT 6" dials
Normal Ambient Temp: -4F to +140F (-20C to +60C)
Liquid Filling: Ships dry, glycerin fillable; when filled, glycerin enhances reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
6" All SS Glycerin Fillable Pressure Gauge, 1/2" NPT, Lower Mount Connection
Manufacturer: Durachoice
DESCRIPTION
DuraChoice'a all stainless steel 6" liquid fillable pressure gauges provide great corrosion resistance. This model features a 1/2" NPT stainless steel lower mount connection, bourdon tube, and movement. It is cased in stainless steel and ships dry; it can be filled with glycerin to help correct the effects of vibration and pulsation.
Features
- Dial Size: 6" Dial Size (Crimped Casing)
- Accuracy:+/- 3/2/3%
- Scale:Dual Scale - PSI / Bar
- Movement:Stainless Steel
- Bourdon Tube:Stainless Steel
- Window:Polycarbonate
- Case:Stainless Steel case for protection in harsh environments
- Connection:Stainless Steel Lower Mount; 1/2" NPT (for 6" dial)
- Normal Ambient Temp.:-4F to +140F (-20C to +60C)
- Liquid Filling:Ships dry, glycerin fillable; when filled, glycerin enhances the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
