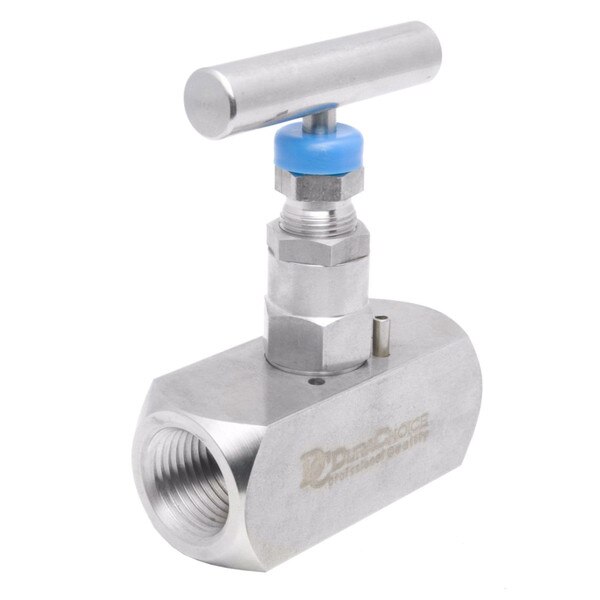

Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI

SKU: VNS01

Manufacturer: Durachoice

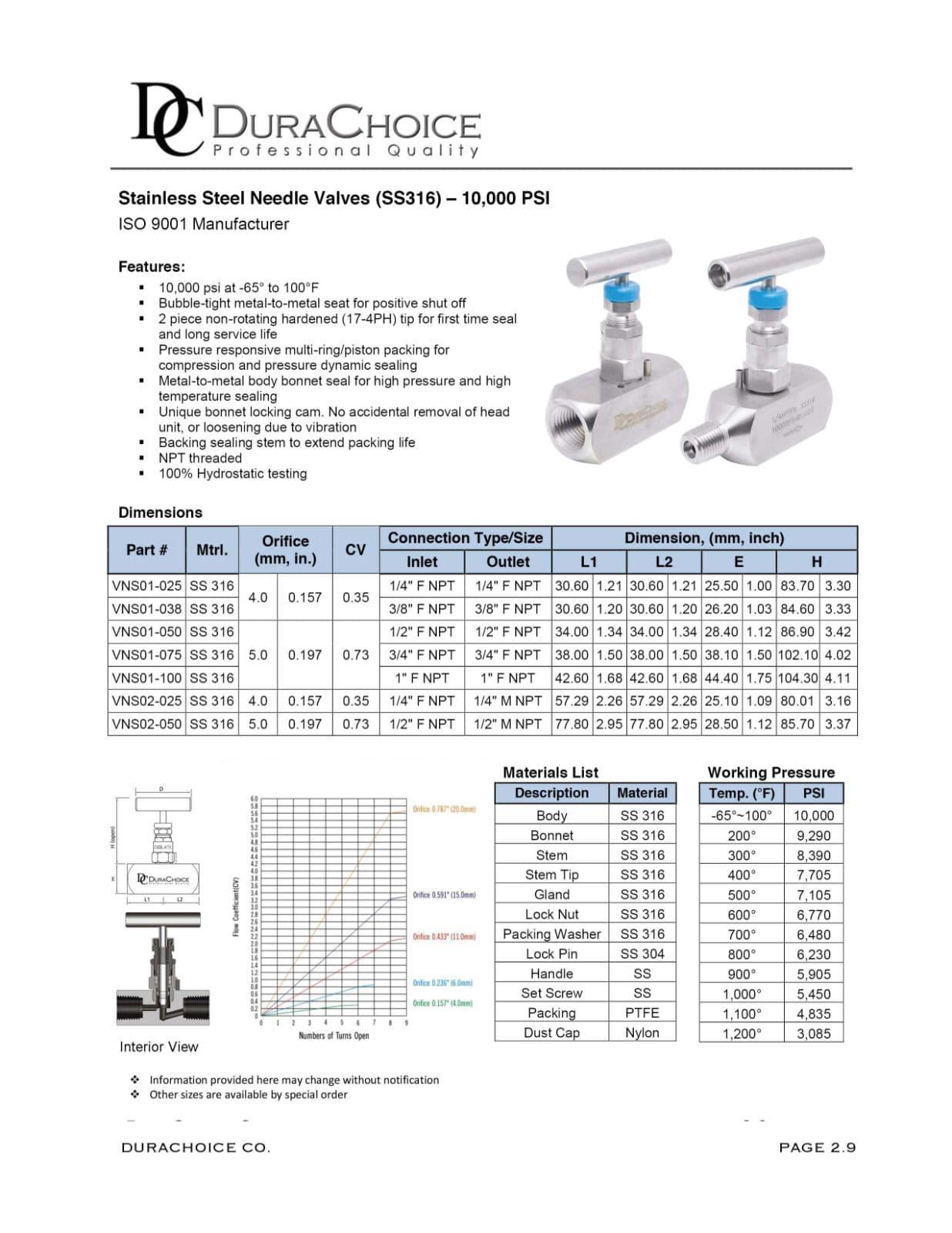

Stainless Steel Needle Valves (SS316) - 10,000 PSI

  • 10,000 PSI at -65 to 100 Degrees F
  • Bubble-tight metal-to-metal seat
  • for positive shut off
  • 2 piece non-rotating hardened (17-4PH) tip for first time seal and long service
  • Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
  • Metal-to-metal body bonnet seal for high pressure and high temperature sealing
  • Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
  • Backing sealing stem to extend to extend packing life
  • NPT threaded
  • 100% Hydrostatic threafing

Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI

SKU: VNS01

Manufacturer: Durachoice

From: $88.24 to $231.10
  • VNS01-025 1/4" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $88.24
  • VNS01-038 3/8" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $88.24
  • VNS01-050 1/2" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $105.45
  • VNS01-075 3/4" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $140.76
  • VNS01-100 1" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $231.10
Items:0  |  Total:$0.00

DESCRIPTION

Stainless Steel Needle Valves (SS316) - 10,000 PSI


  • 10,000 PSI at -65 to 100 Degrees F
  • Bubble-tight metal-to-metal seat positive shut off
  • 2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
  • Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
  • Metal-to-metal body bonnet seal for high pressure and high temperature sealing
  • Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
  • Backing sealing stem to extend packing life
  • NPT threaded
  • 100% Hydrotastic testing
Description: Material
Body: SS 316
Bonnet: SS 316
Stem: SS 316
Stem Tip: SS 316
Gland: 316
Lock Nut: SS 316
Packing Washer: SS 316
Locking Pin: SS 304
Handle: SS
Set Screw: SS
Packing: PTFE
Dust Cap: Nylon

Temp (F): PSI
-65~100: 10,000
200: 9,290
300: 8,390
400: 7,705
500: 7,105
600: 6,770
700: 6,480
800: 6,230
900: 5,905
1,000: 5,450
1,100: 4,835
1,200: 3,085
