Carbon Steel Needle Valves (CS-A105) - 10,000 PSI
10,000 PSI at -65 to 100 Degrees F
Bubble-tight metal-to-metal seat for positive shut off
2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
Metal-to-metal body bonnet seal for high pressure and high temperature sealing
Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
Backing sealing stem to extend packing life
NPT threaded
100% Hydrostatic testing

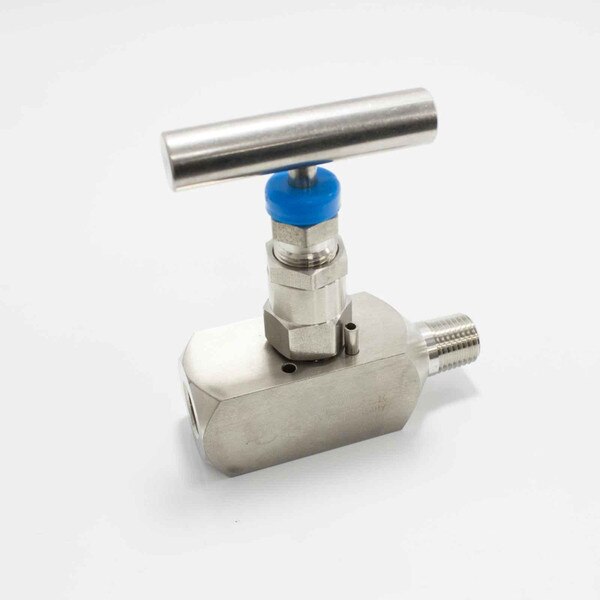

Stainless Steel (316) Needle Valve - Packed Bonnet FxM NPT, 10,000 PSI
SKU: VNS02
Manufacturer: Durachoice
DESCRIPTION
Carbon Steel Needle Valves (Cs-A105) - 10,000 PSI
10,000 PSI at -65 to 100 Degrees F
Bubble-tight metal-to-metal seat for positive shut off
2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
Metal-to-metal body bonnet seal for high pressure and high temperature sealing
Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
Backing sealing stem to extend packing life
NPT threaded
100% Hydrostatic testing
Description: Material
Body: SS 316
Bonnet: SS 316
Stem: SS 316
Stem Tip: SS 316
Gland: SS 316
Lock Nut: SS 316
Packing Washer: SS 316
Lock Pin: SS 304
Handle: SS
Set Screw: SS
Packing: PTFE
Dust Cap: Nylon
Temp (F): PSI
-65~100: 10,000
200: 9,290
300: 8,390
400: 7,705
500: 7,105
600: 6,770
700: 6,480
800: 6,230
900: 5,905
1,000: 5,450
1,100: 4,835
1,200: 3,085
10,000 PSI at -65 to 100 Degrees F
Bubble-tight metal-to-metal seat for positive shut off
2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
Metal-to-metal body bonnet seal for high pressure and high temperature sealing
Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
Backing sealing stem to extend packing life
NPT threaded
100% Hydrostatic testing
Description: Material
Body: SS 316
Bonnet: SS 316
Stem: SS 316
Stem Tip: SS 316
Gland: SS 316
Lock Nut: SS 316
Packing Washer: SS 316
Lock Pin: SS 304
Handle: SS
Set Screw: SS
Packing: PTFE
Dust Cap: Nylon
Temp (F): PSI
-65~100: 10,000
200: 9,290
300: 8,390
400: 7,705
500: 7,105
600: 6,770
700: 6,480
800: 6,230
900: 5,905
1,000: 5,450
1,100: 4,835
1,200: 3,085
