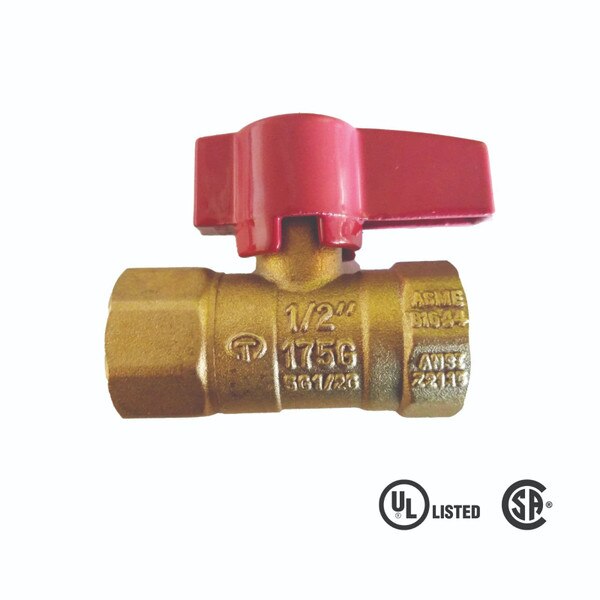

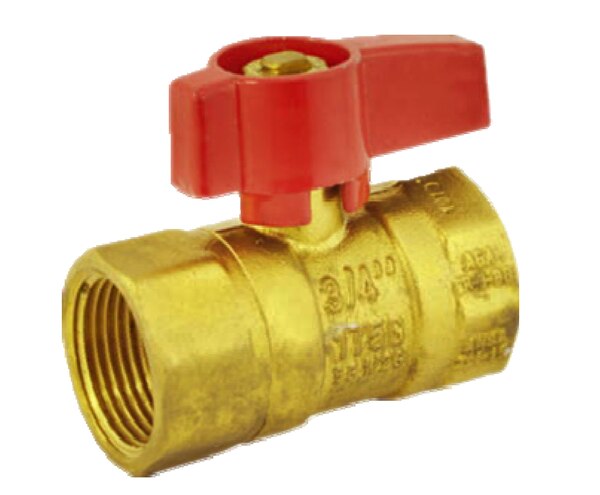

Brass Gas Ball Valve - UL Listed, CSA, Female by Female

SKU: VBBXGB

Manufacturer: DuraChoice

From: $4.70 to $9.11
  • VBBXGB-038 Brass Gas Ball Valve - UL Listed, CSA, Female by Female
    Qty. $4.70
  • VBBXGB-050 Brass Gas Ball Valve - UL Listed, CSA, Female by Female
    Qty. $5.97
  • VBBXGB-075 Brass Gas Ball Valve - UL Listed, CSA, Female by Female
    Qty. $9.11
Items:0  |  Total:$0.00

DESCRIPTION

This item qualifies for volume pricing!

Order discount tiers for qualifying products are:

Over $500 total - 5% off | Over $1000 total - 10% off | Over $2500 total - 15% off

*Applies to sum of applicable items only. Only DuraChoice branded items are applicable. Volume discount cannot be combined with other promotions.

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.

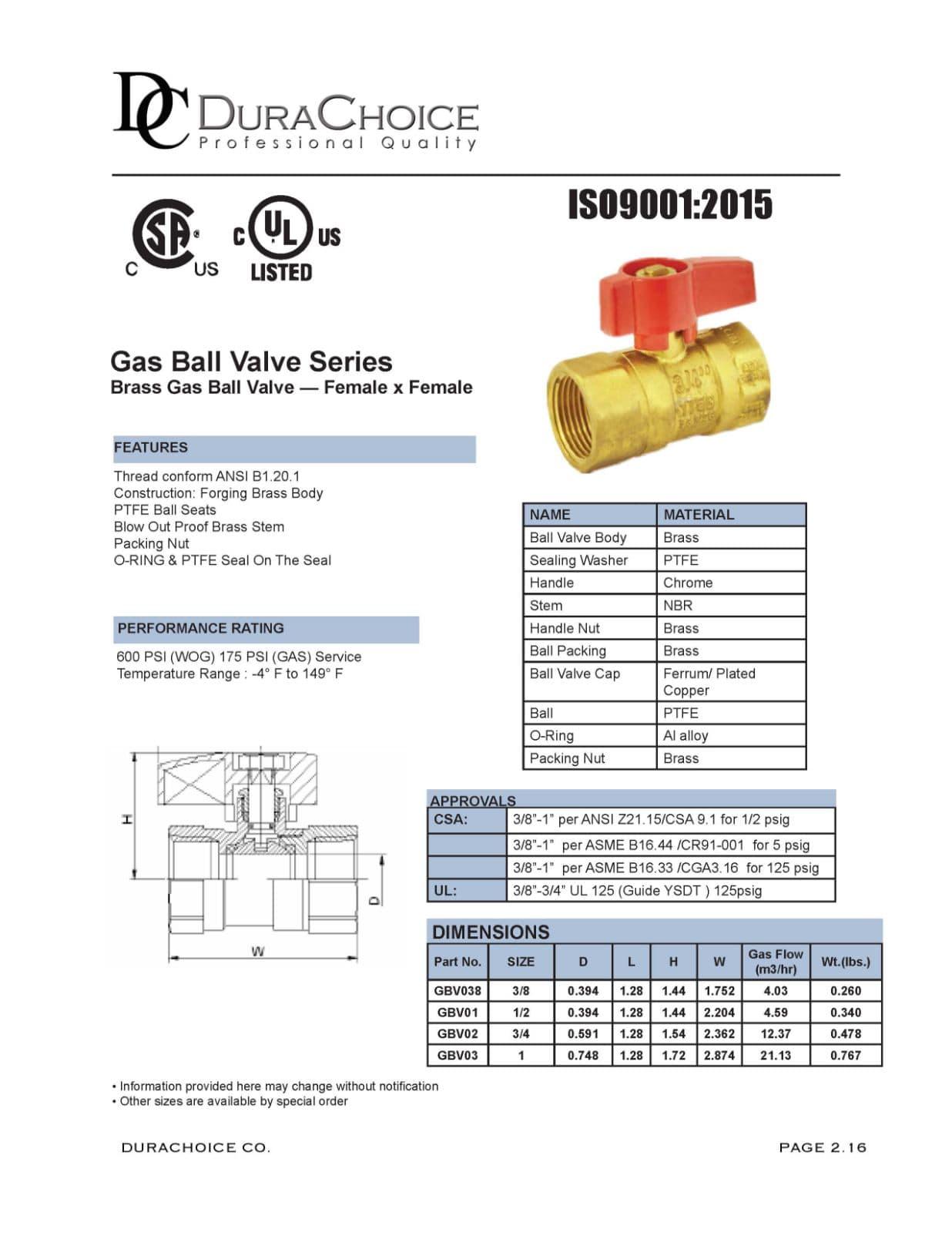

FEATURES

  • Thread conform ANSI B1.20.1
  • Construction:Forging Brass Body
  • PTFE Ball Seats
  • Blow Out Proof Brass Stem
  • Packing NutO-RING & PTFE Seal On The Seal

Performance Rating
- 600 PSI (WOG) 175 PSI (GAS) Service
- Temperature Range: -4° F to 149° F

APPROVALS
CSA:

3/8"-1" per ANSI Z21.15/CSA 9.1 for 1/2 psig

3/8"-1" per ASME B16.44 /CR91-001 for 5 psig

3/8"-1" per ASME B16.33 /CGA3.16 for 125 psig

UL:

3/8"-3/4" UL 125 (Guide YSDT )125psig

MATERIAL

Name

Material

Ball Valve Body

Brass

Sealing Washer

PTFE

Ball

Chrome Plated Brass

O-Ring

NBR

Packing Nut

Brass

Stem

Brass

Handle Nut

Ferrum/ Plated Copper

Ball Packing

PTFE

Handle

Al alloy

Ball Valve Cap

Brass


DIMENSIONS

Part No.

SIZE

D

L

H

W

Gas Flow(m3/hr)

Wt.(lbs.)

VBBXGB-038

3/8

0.394

1.28

1.44

1.752

4.03

0.260

VBBXGB-050

1/2

0.394

1.28

1.44

2.204

4.59

0.340

VBBXGB-075

3/4

0.591

1.28

1.54

2.362

12.37

0.478

VBBXGB-100

1

0.748

1.28

1.72

2.874

21.13

0.767
