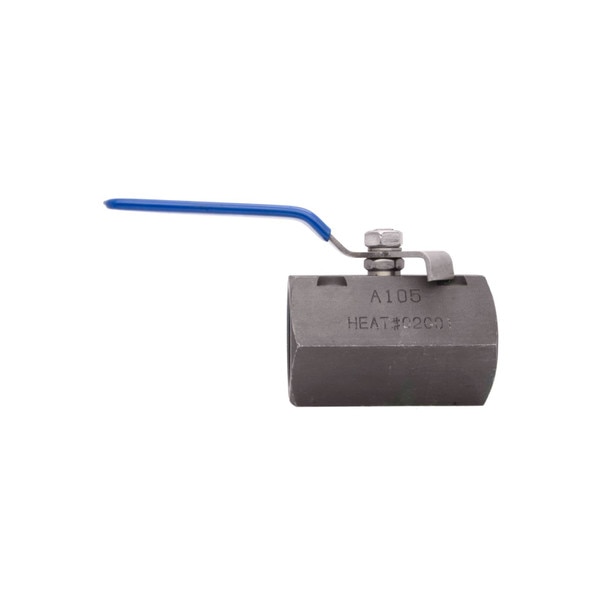

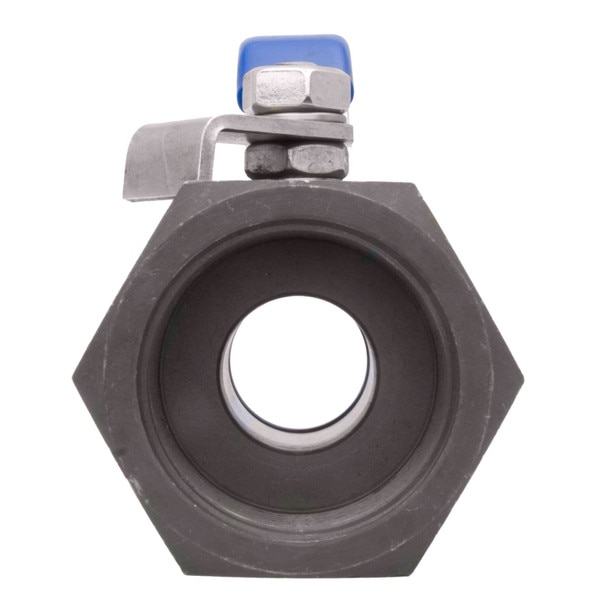

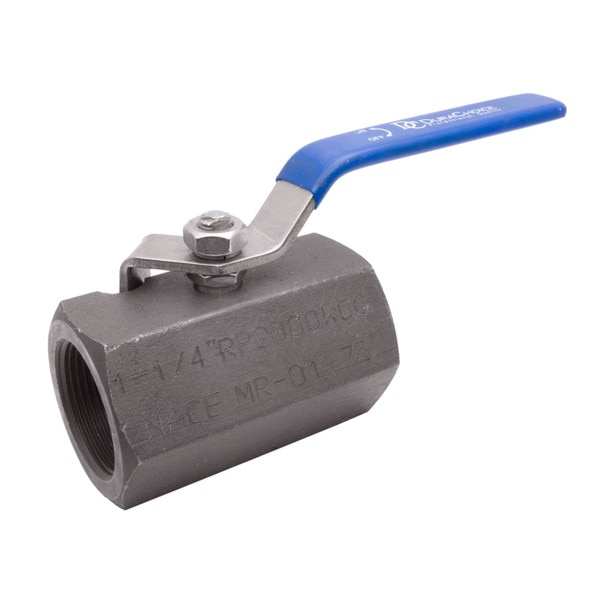

Carbon Steel Standard Port Ball Valve, Hex Bar Stock - 2,000 PSI (WOG)
• Wrought carbon standard port body design
• Working pressure of 2,000 PSI (WOG)
• Suitable for full range of liquids and gas
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• NPT threaded ends to ANSI B1.20.1
• Heavy duty locking handle with insulator
• Meets NACE MR0175 standard
• ISO 9001 standard
Carbon Steel Standard Port Ball Valve, Hex Bar Stock, 2,000 PSI (WOG)
SKU: VBC2KRH
Manufacturer: DuraChoice
DESCRIPTION
Great for oilfield and natural gas work, the DuraChoice VBC2KRH is a standard port design that delivers optimal performance under heavy stresses. The one-piece WCB carbon steel body has been engineered to resist corrosion and pressure tested to ensure it works for your high pressure valve needs.
Features:
Wrought carbon standard port body design
Working pressure of 2,000 PSI (WOG)
Suitable for full range of liquids and gas
Low operation torque
100% individually tested
Blowout-proof stem
NPT threaded ends to ANSI B1.20.1
Heavy duty locking handle with insulator
Meets NACE MR0175 standard
ISO 9001 standard
Materials List
Body - A105
Ball - SS 304
Cap - A105
Cap Seat - RPTFE
Ball Seat - RPTFE
Thrust Washer - PTFE
Stem Packing - PTFE
Stem - SS 304
Gland Nut - SS 304
Handle Washer - SS 304
Handle Nut - A2-70
Handle - SS 201
Handle Cover - Plastic
