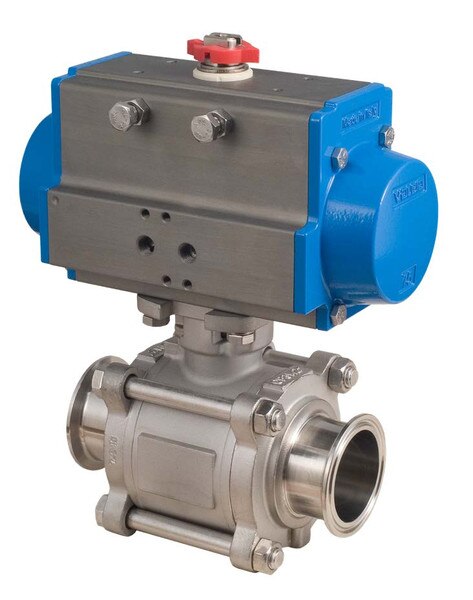

Double Acting 3 Piece S.S. (316) Sanitary Connection, Non-Cavity Filled, Full Port Ball Valve
Manufacturer: Valbia
Double Acting 3 Piece S.S. (316) Sanitary Connection, Non-Cavity Filled, Full Port Ball Valve - Made in Italy!

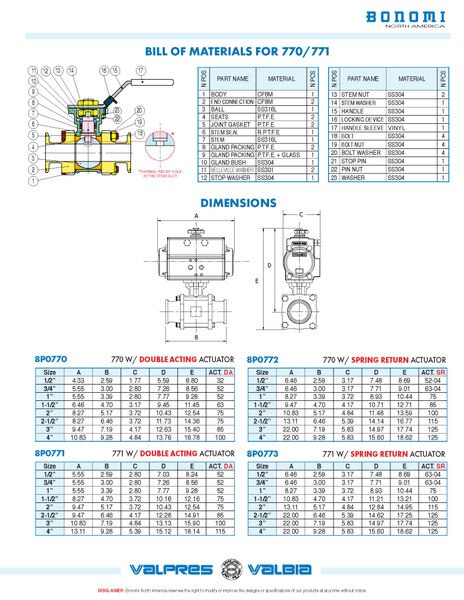

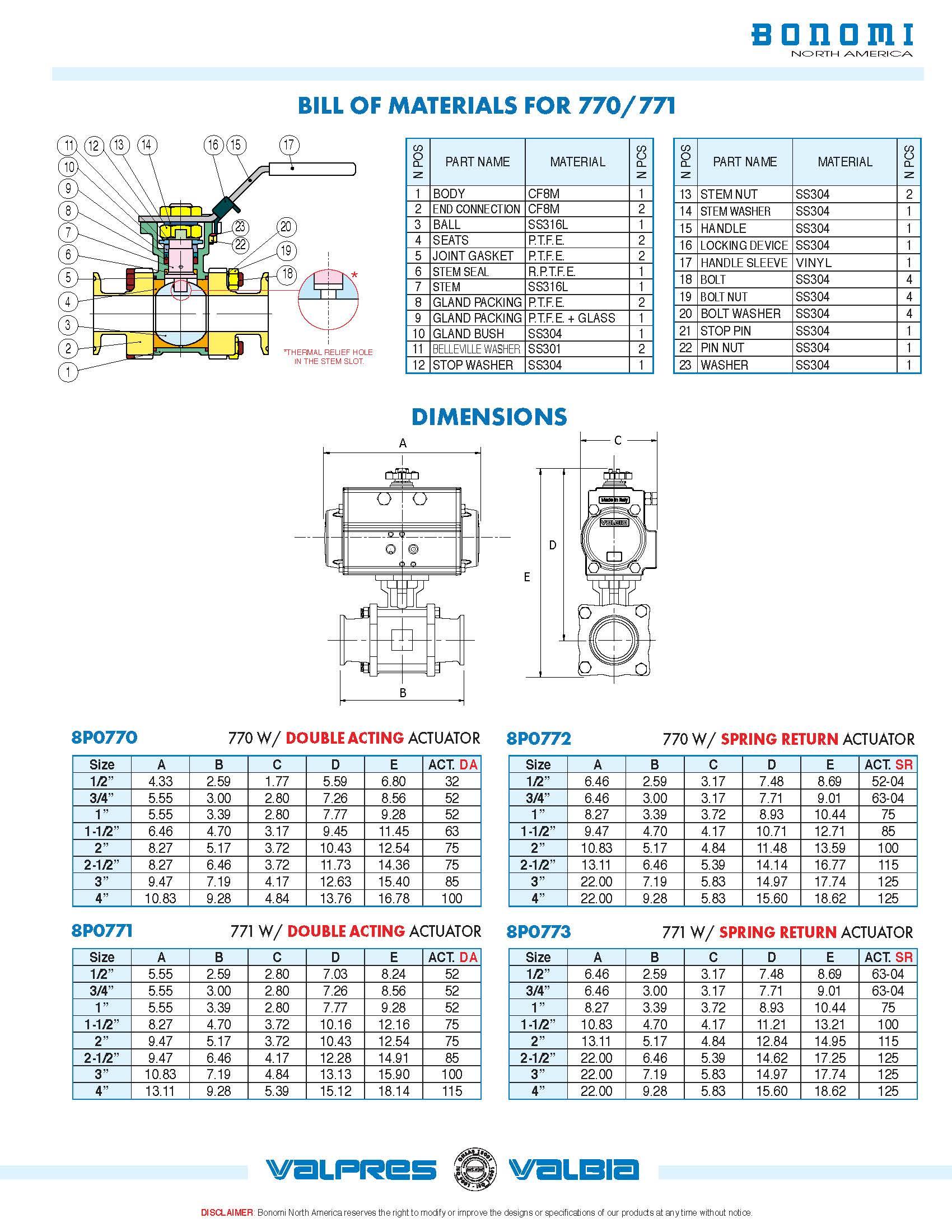

The Bonomi 8P0770 series pneumatic actuated packages feature the 770[ non-cavity filled] three-piece full port stainless steel ball valves with sanitary connections. Both valve series are ISO 5211 direct mount, and come with a grounded ball and stem, and a Ra 15 finish. A grounded ball & stem is standard.
Double Acting 3 Piece S.S. (316) Sanitary Connection, Non-Cavity Filled, Full Port Ball Valve
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302°F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Minimum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrication maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- Stainless Steel, 3 Piece Direct Mount
- Full port, sizes 1/2” to 4”
- 770 - Non-Cavity Filled
- ISO 5211 mounting pad with double “D” stem
- Temperature range -20°F to 450°F
- Working pressure 1000 psi WOG (1/2” to 1”) 800 psi WOG (1-1/2” to 2”) 600 psi WOG (2-1/2” to 4”)
- Blow-out proof stem
- Anti-static Device
- International polishing to Ra 15 micron
- Tri-clamp style end connections
- Ball valves comply with standards: ISO 5211, ANSI B16.11, MSS SP-25, MSS SP-55
