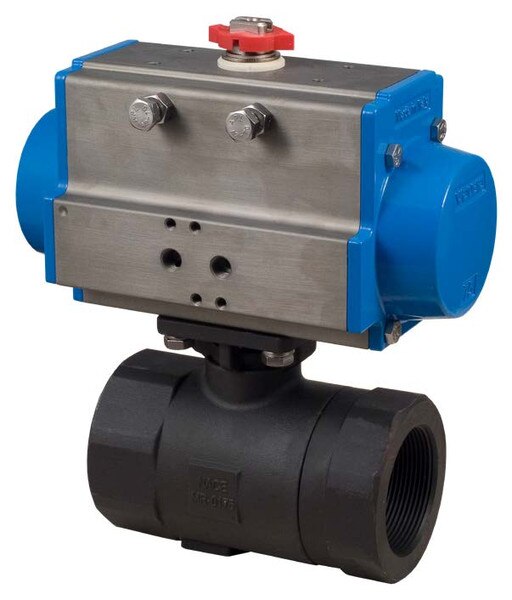

Double Acting Pneumatic Actuator w/Direct Mount 2-Piece Carbon Steel Full Port Ball Valve
SKU: 8P3000
Manufacturer: Valbia
Double Acting Pneumatic Actuator w/Direct Mount 2-Piece Carbon Steel Full Port Ball Valve - Made in Italy!
The Bonomi 8P3000 series pneumatic actuated package features a 3000psi an investment cast ASTM A216-WCB carbon steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball & stem.
Double Acting Pneumatic Actuator w/Direct Mount 2-Piece Carbon Steel Full Port Ball Valve
SKU: 8P3000
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coat-ed end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302°F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Mininum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrification maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- 2-piece WCB body
- Full port, sizes 1/4” to 1-½”
- Reduced port, sizes 2”
- Blow out proof stem/anti-static design
- Pressure rating 3000 psi (100°F)
- Temperature range -20°F to 185°F
- ISO 5211 mounting pad
