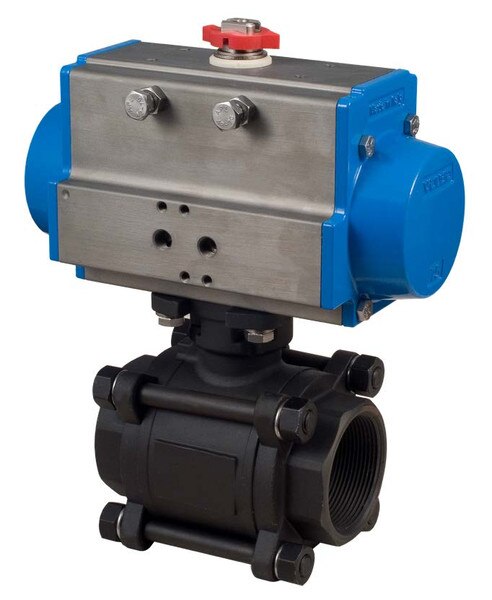

Double Acting Pneumatic Actuator w/Direct Mount 3-Piece Carbon Steel Full Port Ball Valve
SKU: 8P0620
Manufacturer: Valbia
Double Acting Pneumatic Actuator w/Direct Mount 3-Piece Carbon Steel Full Port Ball Valve - Made in Italy!
The 8P0620 pneumatic actuated package includes an ISO 5211, complete direct mount ASTM A216-WCB carbon steel full port ball valve 620LL[NPT] with TFM-1600 seats, multiple stem packing, thermal relief hole in the stem slot, and a grounded ball & stem.
Double Acting Pneumatic Actuator w/Direct Mount 3-Piece Carbon Steel Full Port Ball Valve
SKU: 8P0620
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Minimum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrication maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- 3-piece WCB body
- Full port, sizes 1/4” to 4”
- ISO 5211 mounting pad w/ square stem
- Pressure rating 1/4” to 2” 1,000 psi, 2-1/2” to 4” 800 psi - 150 psi steam
- Temperature range -60°F to +440°F
- Blow out proof stem, multi-layer V-ring adjustable stem packing
- TFM-1600 seats, P.T.F.E. packing and thrust washer
