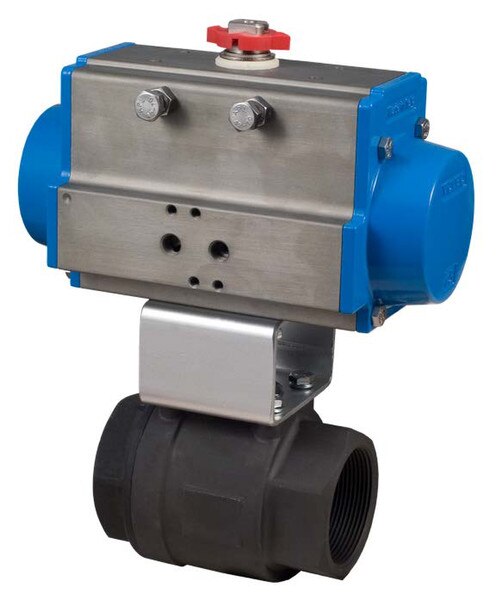

Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve

SKU: 8P0224

Manufacturer: Valbia

Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve

SKU: 8P0224

Manufacturer: Valbia

From: $353.56 to $765.31
  • 8P0224-025 1/4" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $353.56
  • 8P0224-038 3/8" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $353.56
  • 8P0224-050 1/2" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $353.56
  • 8P0224-075 3/4" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $373.32
  • 8P0224-100 1" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $480.93
  • 8P0224-125 1-1/4" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $505.08
  • 8P0224-150 1-1/2" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $601.70
  • 8P0224-200 2" Double Acting Valbia Pneumatic Actuator w/2-Way Unibody Carbon Steel, Seal Weld Ball Valve Low Stock - Chat or Call to check
    Qty. $765.31
Items:0  |  Total:$0.00

DESCRIPTION

The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Actuator Features

  • Hard anodized extruded aluminum body
  • Concentric spring sets
  • Die cast aluminum end caps
  • Solid steel barstock pinion (not casting)
  • 0°-90° rotation adjustment cam
  • 0°-90° rotation adjustment bolts
  • POM piston guides
  • Mininum air pressure rating: 80 psi
  • Maximum air pressure rating: 116 psi
  • Working temperature: -4°F - 302°F
  • No lubrication maintenance required for the entire actuator lifetime
  • 100% factory tested

Valve Features

  • 2-piece Seal Welded WCB body
  • Full port, sizes 1/4” to 2”
  • Self adjusting stem packing
  • Blow out proof stem design
  • 100% air tested under water at 80 psi
  • Pressure rating 1/4” to 1” 2,000 psi, 1-1/4” to 2” 1000 psi - 150 psi steam
  • Temperature range -4°F to 450°F
  • Mounting pad for actuator
  • Thermal relief hole in stem slot
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
