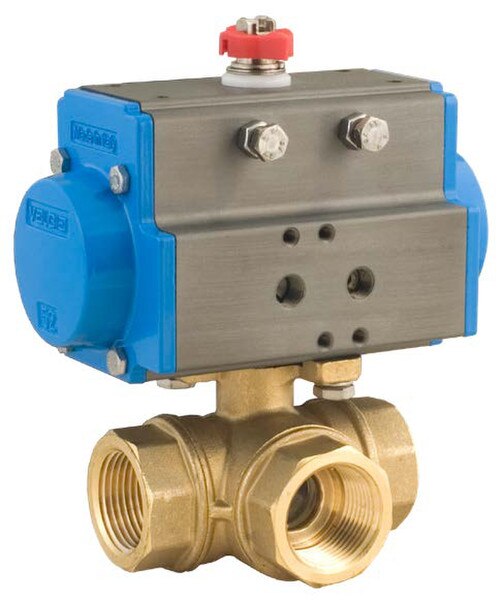

Double Acting Valbia Pneumatic Actuator w/ Brass 3-Way Standard T-Port Ball Valve
Manufacturer: Valbia
Double Acting Valbia Pneumatic Actuator w/ Standard Port Brass 3-Way Stand Port Ball Valve - Made in Italy!

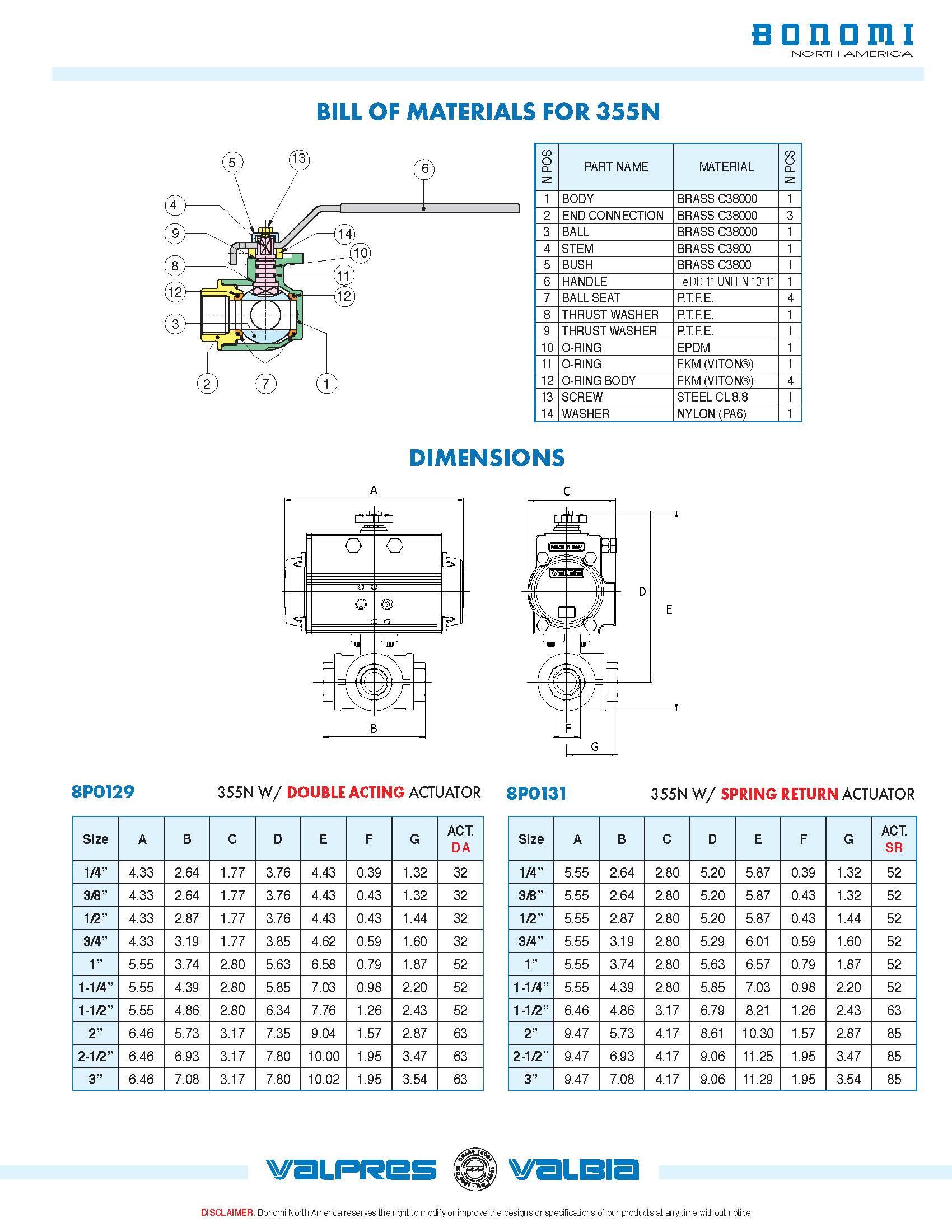

The 8P0129 series features the 355N in a 3-way forged brass, standard port ball valve, with four seats, and a T ported configuration. The 355N valve is also an ISO 5211 direct mount style, with four seats. The four seats allow one to use any port as an entry port and offers an optional straight through flow and shut-off capabilities. The 355N also is a low torque design with O-ring backed seats and has dual O-ring stem seals for high cyclic applications.
Double Acting Valbia Pneumatic Actuator w/ Brass 3-Way Standard T-Port Ball Valve
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Acuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Mininum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrication maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- Brass
- Standard Port, Sizes 1/4” to 3”
- ISO 5211 pad and square stem
- Pressure rating to 400 WOG
- Temperature range -4°F to 366°F
- Four (4) seat design for sealing between pressured ports
- Blow-out proof stem, chrome plated brass ball
- Low torque design with back up o-ring seats
- Double o-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position@80 Psi
