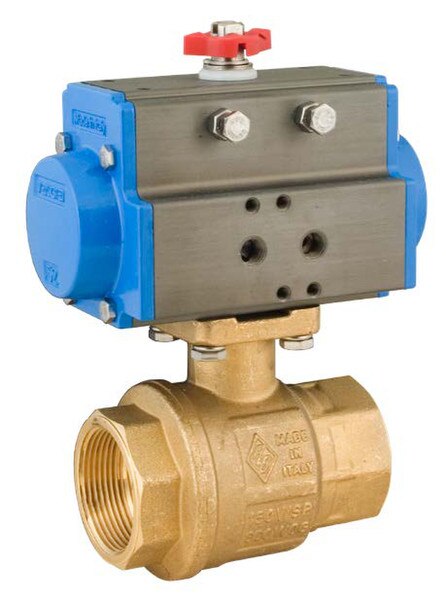

Double Acting Valbia Pneumatic Actuator with Brass Full-Port Ball Valve (Stainless Steel Ball/Stem)
Manufacturer: Valbia
Double Acting Valbia Pneumatic Actuator with Brass Full-Port Ball Valve (Stainless Steel Ball/Stem) - Made in Italy!

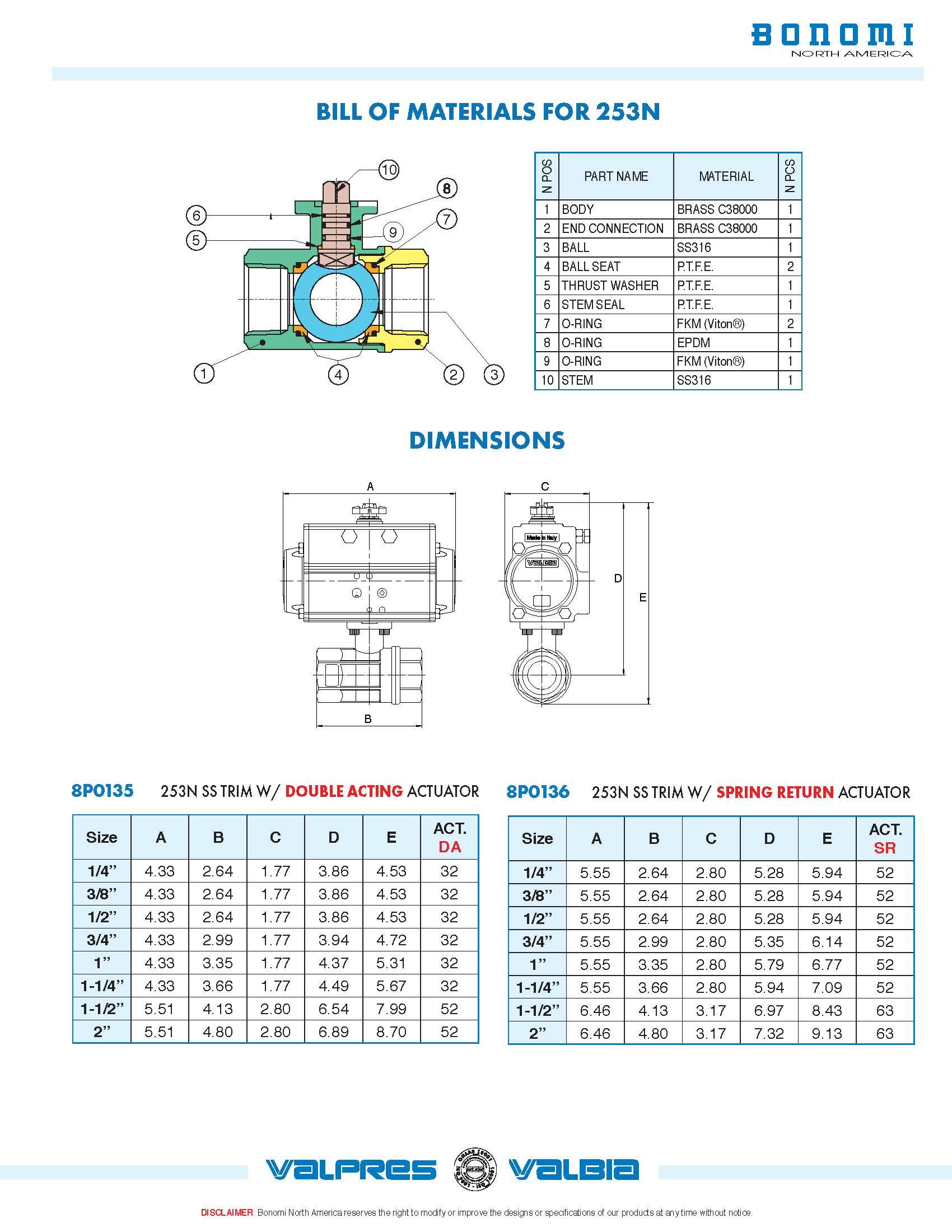

The 8P0135 series features the 253N forged brass, full port, ISO direct mount ball valve with a Stainless-steel ball and stem. The 253N also features O-ring back energized seats for touch sealing both up and downstream. In addition, there is a double O-ring stem seal for high cyclic conditions. This series has the lowest break torque in the industry.
Double Acting Valbia Pneumatic Actuator with Brass Full-Port Ball Valve (Stainless Steel Ball/Stem)
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Minimum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrication maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- Brass
- Full Port, Sizes 1/4” to 2”
- ISO 5211 pad and square stem
- Pressure rating to 600 WOG
- Low torque design
- Double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position@80 Psi
