Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount

SKU: 8P0080LF

Manufacturer: Valbia

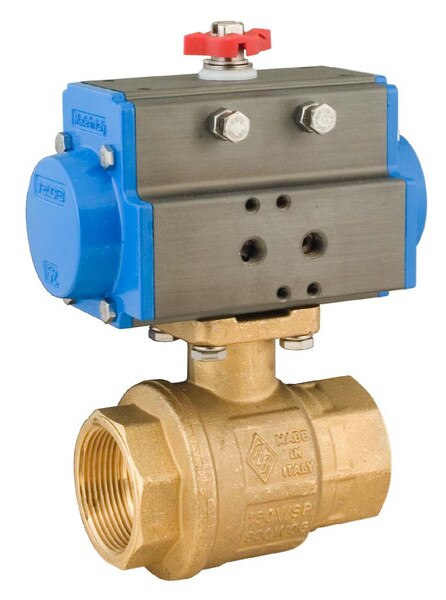

Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount - Made in Italy!

Bonomi North America series 8P0080LF lead-free brass automated ball valve package features a rugged NEMA 4 metal housing and a full port 600 psi lead free brass ball valve.

Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount

SKU: 8P0080LF

Manufacturer: Valbia

From: $240.46 to $1,593.20
  • 8P0080LF-025 1/4" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $240.46
  • 8P0080LF-038 3/8" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $240.46
  • 8P0080LF-050 1/2" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $240.46
  • 8P0080LF-075 3/4" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $248.15
  • 8P0080LF-100 1" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $272.31
  • 8P0080LF-125 1-1/4" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $327.20
  • 8P0080LF-150 1-1/2" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $464.45
  • 8P0080LF-200 2" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $575.35
  • 8P0080LF-250 2-1/2" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $786.17
  • 8P0080LF-300 3" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $988.20
  • 8P0080LF-400 4" Double Action Pneumatic Actuator with 2 Way Lead-Free Brass Full Port Ball Valve Direct Mount Low Stock - Chat or Call to check
    Qty. $1,593.20
Items:0  |  Total:$0.00

DESCRIPTION

The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Actuator Features

  • Hard anodized extruded aluminum body
  • Concentric spring sets
  • Die cast aluminum end caps
  • Solid steel barstock pinion (not casting)
  • 0°-90° rotation adjustment cam
  • 0°-90° rotation adjustment bolts
  • POM piston guides
  • Mininum air pressure rating: 80 psi
  • Maximum air pressure rating: 116 psi
  • Working temperature: -4°F - 302°F
  • No lubrification maintenance required for the entire actuator lifetime
  • 100% factory tested

Valve Features

  • Lead-Free Brass
  • Full Port, Sizes 1/4" to 4"
  • ISO 5211 pad and square stem
  • 253N LF - Stainless steel ball and stem
  • Pressure rating to 600 WOG
  • Temperature range -4°F to 366°F
  • Low torque design with back up O-ring seats
  • Double O-ring stem seal design for extended cycle life
  • 100% electronically tested in the open and closed position @ 80PSI
  • NSF 61/372
