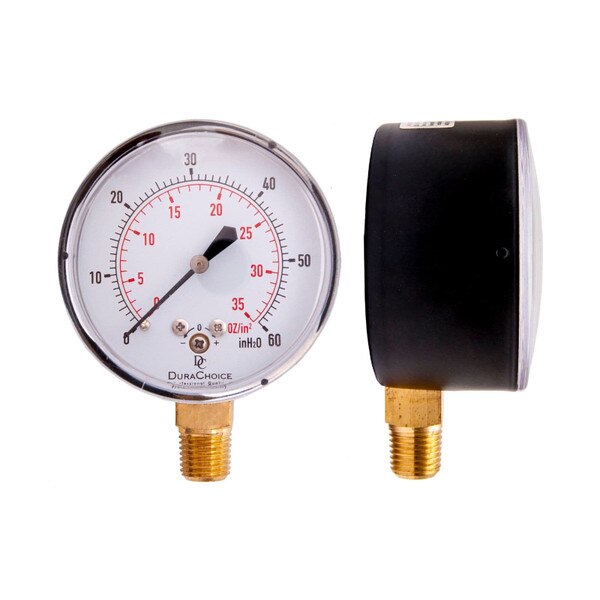

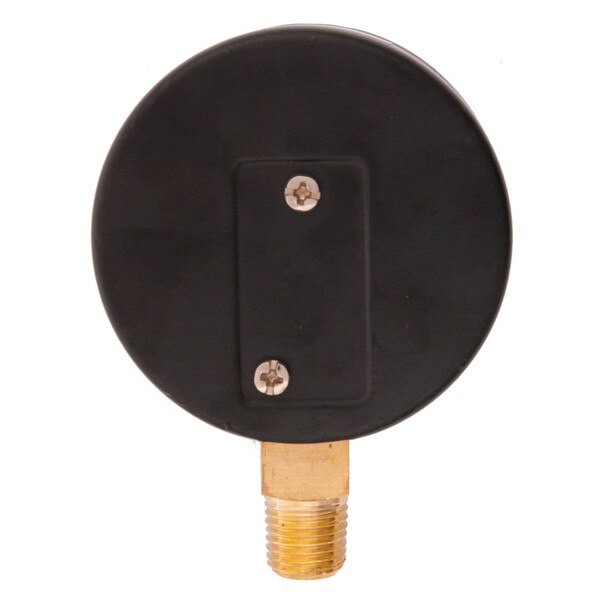

Low Pressure Capsule Gauge (Black Steel) - 2-1/2" Face 1/4" NPT

SKU: PL254L

Manufacturer: DuraChoice

From: $24.38 to $24.38
  • PL254L-060X35 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Dual scale 35 OZ/in2 and 60 inH2O
    Qty. $24.38
  • PL254L-015 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 15 psi. Dual Scale w/ Bar.
    Qty. $24.38
  • PL254L-015X09 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT. Dual scale 9 OZ/in2 and 15 inH2O
    Qty. $24.38
  • PL254L-035X20 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Dual scale 20 OZ/in2 and 35 inH2O.
    Qty. $24.38
  • PL254L-100X60 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Dual scale 60 OZ/in2 and 100 inH2O
    Qty. $24.38
  • PL254L-003 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 3 psi. Dual Scale w/ Bar.
    Qty. $24.38
  • PL254L-005 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 5 psi. Dual Scale w/ Bar.
    Qty. $24.38
  • PL254L-010 2 1/2" Black Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 10 psi. Dual Scale w/ Bar.
    Qty. $24.38
Items:0  |  Total:$0.00

DESCRIPTION

Extremely accurate capsule gauges designed measure pressure below inH2O. Dual scale reads to 35 OZin2. Made for work in gaseous media. The gauges have a recalibration screw to adjust the pointer if necessary.

These gauges are made for extremely low pressure situations. A one-piece capsule inside the gauge expands to register minute changes in pressure.



Specifications:

Dial Size: 2-1/2"

Accuracy: +/- 1.5%

Scale: Dual Scale - PSI/Bar or OZin2/inH2O

Movement: Copper Alloy*

Capsule Element: Copper Alloy*

Window: Acrylic; Removable

Case: Black Steel case

Connection: Copper Alloy Lower Mount*; 1/4" NPT

Normal Ambient Temp: -4F to +140F (-20C to +60C)

Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
