  • Low Pressure Capsule Gauge (Stainless Steel) - 2 1/2" Face 1/4" NPT

Low Pressure Capsule Gauge (Stainless Steel) - 2 1/2" Face 1/4" NPT

SKU: PLS254L

Manufacturer: DuraChoice

From: $40.69 to $40.69
  • PLS254L-060X35 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT. <br><br>Dual scale 35 OZ/in2 and 60 inH2O
    Qty. $40.69
  • PLS254L-015 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 15 psi. Dual Scale w/ Bar.
    Qty. $40.69
  • PLS254L-015X09 Low Pressure Capsule Gauge (Stainless Steel) - 2 1/2" Face 1/4" NPT - 15 inH2O
    Qty. $40.69
  • PLS254L-035X20 Low Pressure Capsule Gauge (Stainless Steel) - 2 1/2" Face 1/4" NPT - 35 inH2O
    Qty. $40.69
  • PLS254L-100X60 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT. <br><br>Dual scale 60 OZ/in2 and 100 inH2O
    Qty. $40.69
  • PLS254L-003 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 3 psi. Dual Scale w/ Bar.
    Qty. $40.69
  • PLS254L-005 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 5 psi. Dual Scale w/ Bar.
    Qty. $40.69
  • PLS254L-010 2 1/2" Stainless Steel/Brass Low Pressure Capsule Gauge Lower Mount 1/4" NPT Range: 10 psi. Dual Scale w/ Bar.
    Qty. $40.69
Items:0  |  Total:$0.00

DESCRIPTION

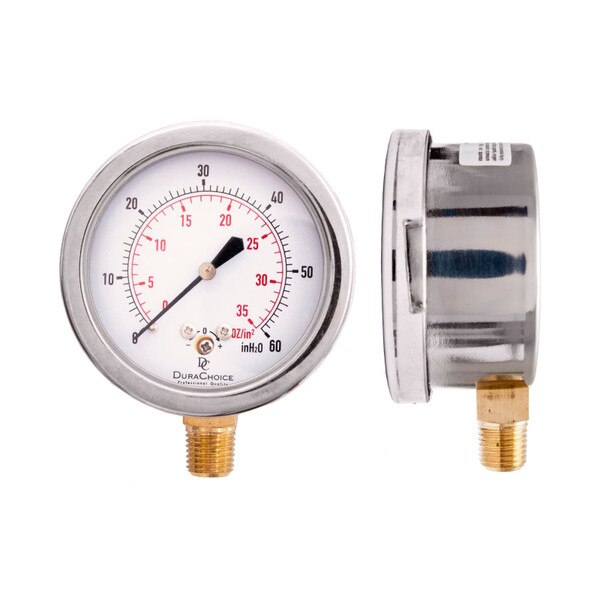

Highly accurate stainless steel cased capsule gauges designed measure low pressure. Dual scale reads inH2O and OZin2. Made for work in gaseous media. The gauges have a recalibration screw to adjust the pointer if necessary.

These gauges are made for extremely low pressure situations. A one-piece capsule inside the gauge expands to register very subtle changes in pressure.

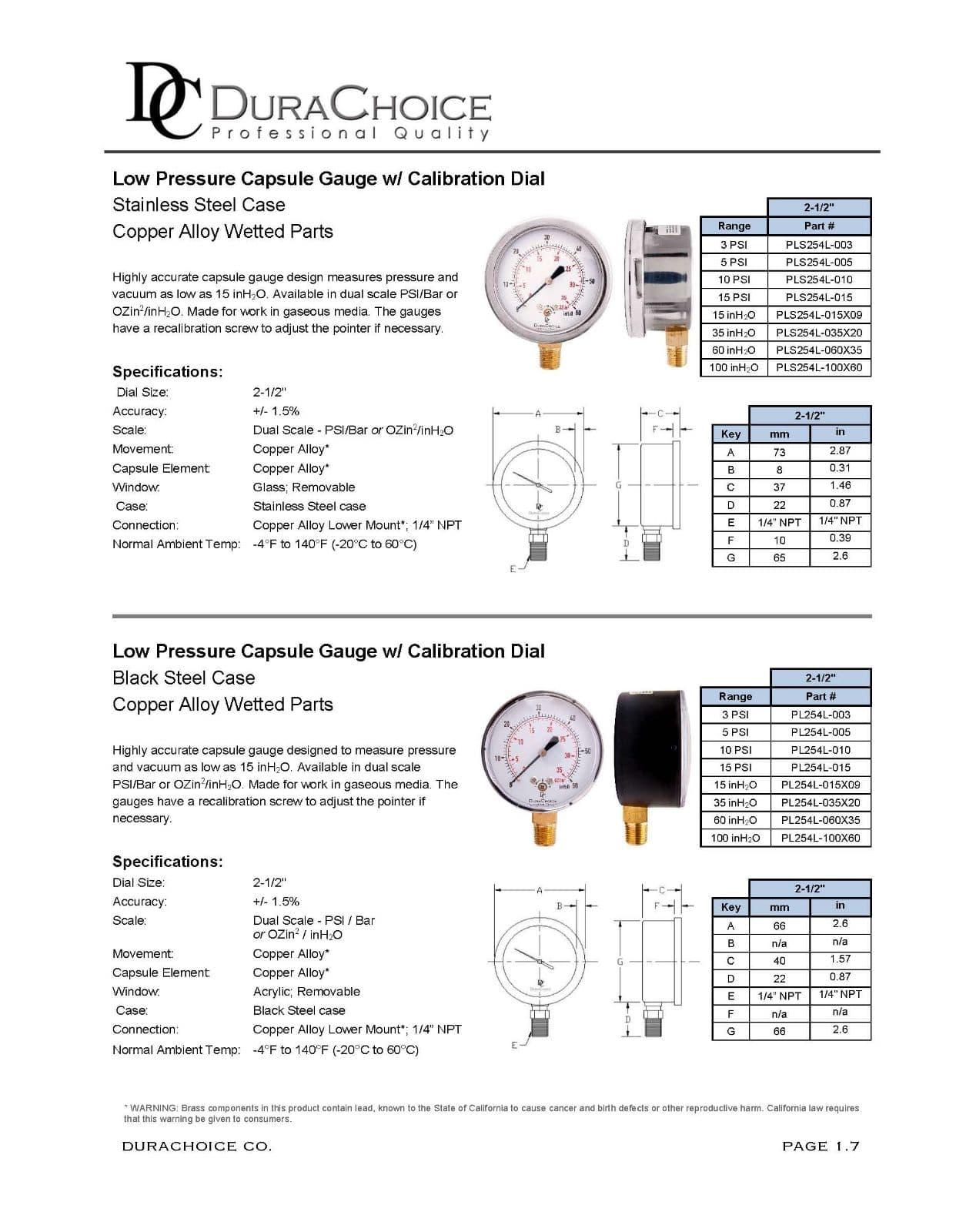

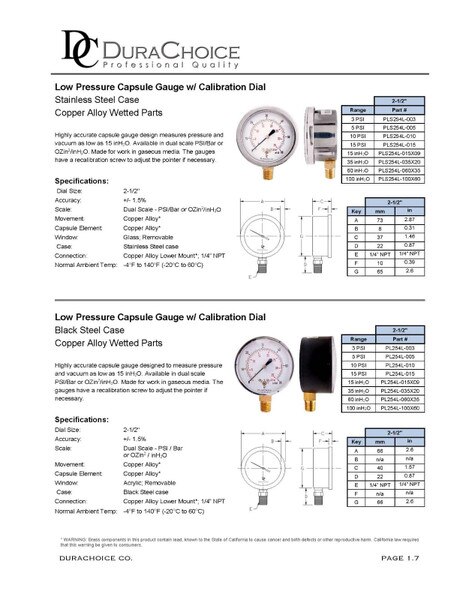

Specifications:

Dial Size: 2-1/2"

Accuracy: +/- 1.5%

Scale: Dual Scale - PSI/Bar or OZin2/inH2O

Movement: Copper Alloy*

Capsule Element: Copper Alloy*

Window: Glass; Removable

Case: Stainless Steel case

Connection: Copper Alloy Lower Mount*; 1/4" NPT

Normal Ambient Temp: -4F to +140F (-20C to +60C)

Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
