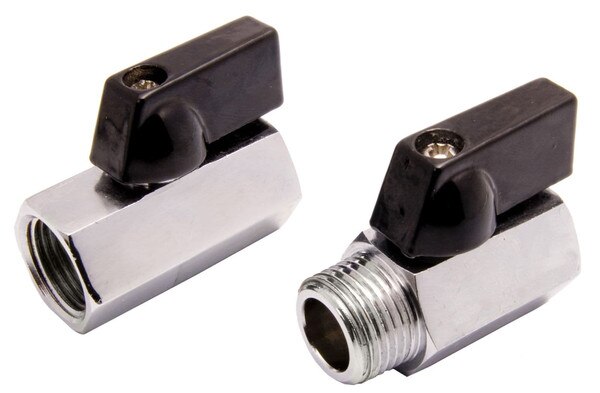

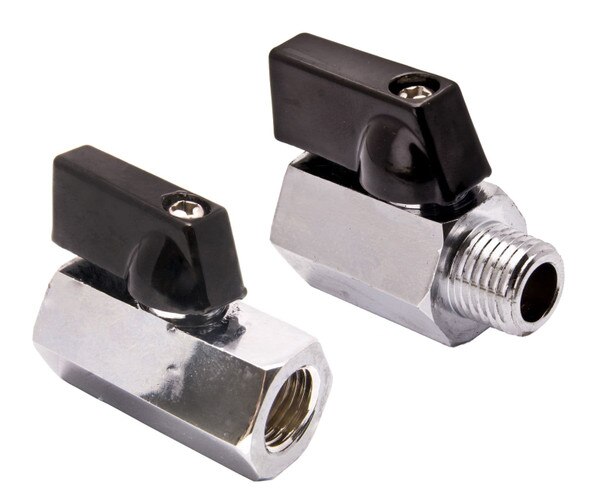

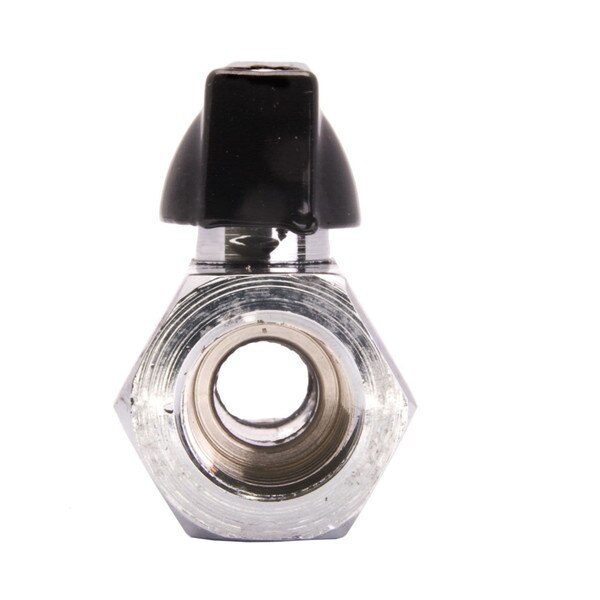

Mini Brass Ball Valves - Chrome Plated, 200 PSI (WOG), FxF and MxF
SKU: VBBM
Manufacturer: DuraChoice
Mini Brass Ball Valves - Chrome Plated, 200 PSI (WOG), FxF and MxF.
• Chrome-plated brass body - for extra strength and corrosion resistance• Working pressure of 200 PSI (WOG)
• Solid chrome-plated brass ball
• NPT Threaded ends (ANSI B1.20.1)
• Double-seal system allows flow in either direction
• Heavy duty Zinc Alloy handles
• Working temperature of 2 to 175 Degrees F
• Fast 1/4 turn opening and closing operation
• Each valve individually tested for maximum safety
Mini Brass Ball Valves - Chrome Plated, 200 PSI (WOG), FxF and MxF
SKU: VBBM
Manufacturer: DuraChoice
DESCRIPTION
Brass Mini-Ball Valves - Chrome Plated
Features:
• Chrome-plated brass body - for extra strength and corrosion resistance
• Working pressure of 200 PSI (WOG)
• Solid chrome-plated brass ball
• NPT threaded ANSI B1.20.1
• Double-seal system allows flow in either direction
• Heavy duty Zinc Alloy handles
• Working temperature of 2 to 175 Degrees F
• Fast 1/4 turn opening and closing operation
• Each valve individually tested for maximum safety
Description: Material
Body: SS 316 (CF8M)
Ball: SS 316 (CF8M)
Cap: SS 316 (CF8M)
Ball Seat: RPTFE
Stem Packing: PTFE
Stem: SS 304
Gland Nut: SS 304
Stem Nut: SS 304
Locking Device: SS 304
Stem Seal: PTFE
Body Seal: PTFE
Blind Cap: SS 316 (CF8M)
Blind Cap Seal: PTFE
Handle: SS 304
Handle Cover: Plastic
Description: Material
Body: Chrome-plated forged brass
Ball: Solid chrome-plated brass
Cap: Brass
Seats: Teflon
Stem: Brass
Bolt: Brass
O-Ring: EPDM
Handle: Zinc Alloy
Features:
• Chrome-plated brass body - for extra strength and corrosion resistance
• Working pressure of 200 PSI (WOG)
• Solid chrome-plated brass ball
• NPT threaded ANSI B1.20.1
• Double-seal system allows flow in either direction
• Heavy duty Zinc Alloy handles
• Working temperature of 2 to 175 Degrees F
• Fast 1/4 turn opening and closing operation
• Each valve individually tested for maximum safety
Description: Material
Body: SS 316 (CF8M)
Ball: SS 316 (CF8M)
Cap: SS 316 (CF8M)
Ball Seat: RPTFE
Stem Packing: PTFE
Stem: SS 304
Gland Nut: SS 304
Stem Nut: SS 304
Locking Device: SS 304
Stem Seal: PTFE
Body Seal: PTFE
Blind Cap: SS 316 (CF8M)
Blind Cap Seal: PTFE
Handle: SS 304
Handle Cover: Plastic
Description: Material
Body: Chrome-plated forged brass
Ball: Solid chrome-plated brass
Cap: Brass
Seats: Teflon
Stem: Brass
Bolt: Brass
O-Ring: EPDM
Handle: Zinc Alloy
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
