FxF NPT threaded coupling

SKU: F84-F86

Manufacturer: DuraChoice

FxF NPT threaded coupling

SKU: F84-F86

Manufacturer: DuraChoice

From: $0.00 to $149.83
  • FS084-0125 1/8" COUPLING SS 304
    Qty. $4.69
  • FS084-025 1/4" COUPLING SS 304
    Qty. $4.54
  • FS084-0375 3/8" COUPLING SS 304 Low Stock - Chat or Call to check
    Qty. $5.82
  • FS084-050 1/2" COUPLING SS 304
    Qty. $6.27
  • FS084-075 3/4" COUPLING SS 304
    Qty. $8.68
  • FS084-100 1" COUPLING SS 304
    Qty. $17.08
  • FS084-125 1-1/4" COUPLING SS 304
    Qty. $11.94
  • FS084-150 1-1/2" COUPLING SS 304
    Qty. $29.74
  • FS084-200 2" COUPLING SS 304
    Qty. $43.15
  • FS084-250 2-1/2" COUPLING SS 304
    Qty. $50.04
  • FS084-300 3" COUPLING SS 304
    Qty. $86.60
  • FS084-400 4" COUPLING SS 304
    Qty. $140.71
  • F86-025 COUPLING SS 316 1/4"
    Qty. $5.04
  • F86-0375 COUPLING SS 316 3/8" Low Stock - Chat or Call to check
    Qty. $5.49
  • F86-050 COUPLING SS 316 1/2"
    Qty. $7.70
  • F86-075 COUPLING SS 316 3/4"
    Qty. $10.81
  • F86-100 COUPLING SS 316 1"
    Qty. $17.57
  • F86-125 COUPLING SS 316 1-1/4"
    Qty. $24.63
  • F86-150 COUPLING SS 316 1-1/2" Low Stock - Chat or Call to check
    Qty. $22.00
  • F86-200 COUPLING SS 316 2"
    Qty. $0.00
  • F86-250 COUPLING SS 316 2-1/2"
    Qty. $53.28
  • F86-300 COUPLING SS 316 3"
    Qty. $92.21
  • F86-400 COUPLING SS 316 4"
    Qty. $149.83
Items:0  |  Total:$0.00

DESCRIPTION

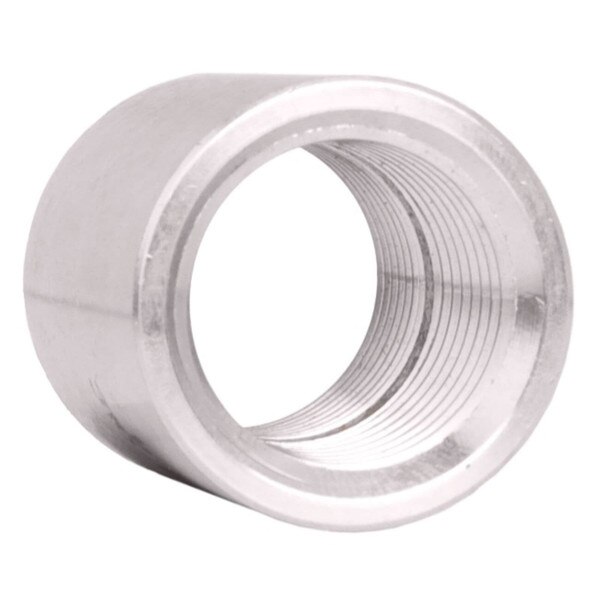

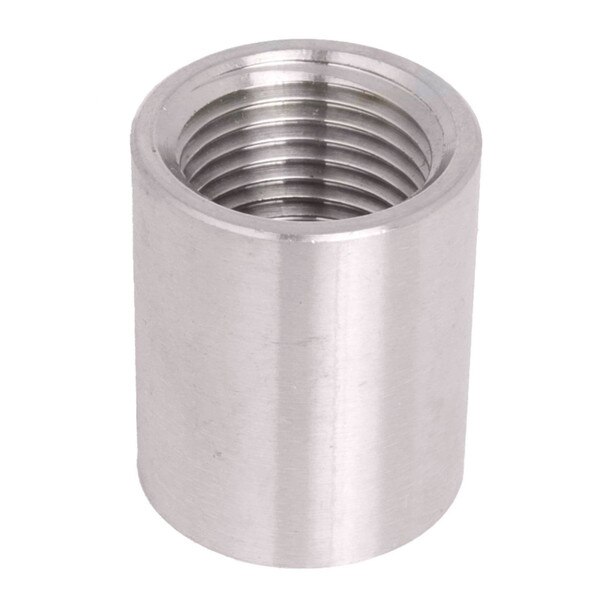

FxF threaded coupling


Coupling pipe fittings are components used for connecting, terminating, controlling flow, and extending pipes going in the same direction. Made of stainless steel 304 to ensure higher corrosion resistance than 302 grade school. Class 150 is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.


Features

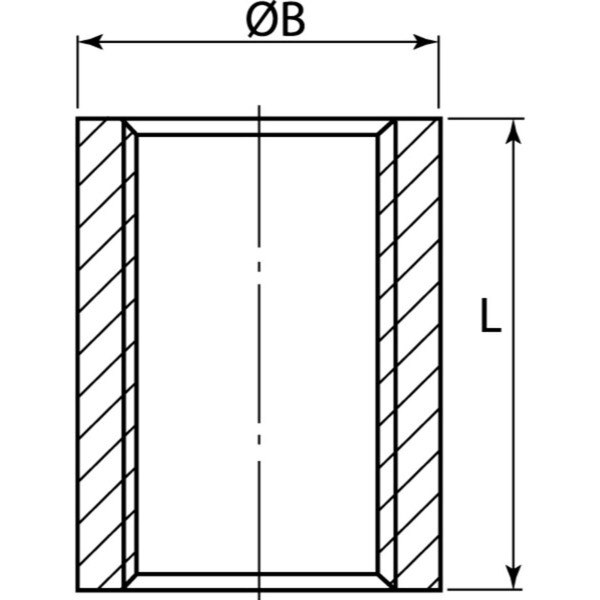

Cast pipe fitting size: coupling NPT female 1/2 inch; length: 30 mm
The coupling fitting can be used in fuel equipment, plumbing, gas, refrigeration, and vacuum applications
Coupling pipe fittings are components used for connecting, terminating, controlling flow, and extending pipes going in the same direction
Temperature rating: -20 to 460 Degrees F
Working Pressure: 0-360 PSI
Pressure rating: Class 150
Pipe fitting coupling material: made of stainless steel 304 for strength, low carbon content for greater resistance to corrosion, which can be connected to copper, brass, plastic, aluminum. and welded steel


Part# SS 304SizePart # SS 316
F84-01251/8"F86-0125
F84-0251/4"F86-025
F84-03753/8"F86-0375
F84-0501/2"F86-050
F84-0753/4"F86-075
F84-1001"F86-100
F84-1251-1/4"F86-125
F84-1501-1/2"F86-150
F84-2002"F86-200
F84-2502-1/2"F86-250
F84-3003"F86-300
F84-4004"F86-400
