The role of ball valves cannot be overstated in fluid control systems. These essential components offer reliable performance, but their effectiveness depends on proper installation and maintenance. Understanding the nuances of installation and the importance of adequate tightening will not only prevent leaks but also increase your system’s efficiency.Here are a few proper installation and tightening tips for ball valves so that your ball valves operate optimally, safeguarding your equipment and investment.
The Importance of Correct Ball Valve Installation
Correct ball valve installation is fundamental to a piping system’s functionality and longevity. Improperly installed valves can lead to leaks, inefficient flow control, and increased maintenance costs, potentially compromising safety. A well-installed ball valve provides a tight seal and reduces the risk of pressure drops, which can disrupt system operations.
The orientation of the valve, whether horizontal or vertical, impacts its performance and ease of use. Understanding the specifications and installation requirements will improve system reliability and extend the valve’s lifespan, benefiting operational budgets and safety standards.
Tools and Materials Needed for Installation
When installing ball valves, having the right tools and materials is essential for a successful outcome. Below is a list of the necessary items to install and tighten ball valves:
- socket wrench set
- torque wrench
- piping aligners
- thread sealant or tape
- cutting tool
- deburring tool
- measuring tape
Equip yourself with these tools and materials to install the ball valve correctly for peak performance and safety in your piping system.
Step-by-Step Guide to Installing Ball Valves
Successfully installing ball valves requires a systematic approach. Follow the steps below for a successful ball valve installation.
Step 1: Prepare the Pipe Ends
Start by preparing the pipe ends where you will install the ball valve. Clean the pipe ends thoroughly to remove dirt, debris, or old sealant. This step ensures a clean, smooth surface for the valve connection, reducing the risk of leaks.
Use a wire brush or pipe cleaner to scrub the pipe ends, and wipe them down with a clean cloth. Inspect the pipe ends for any signs of damage or corrosion, and address any issues before proceeding.
Quick Tip
Before starting installation, double-check the valve specs against your system requirements. Make sure the pressure ratings, size, and material compatibility fit your application. This prevents complications during installation and enhances the valve’s long-term performance and reliability.
Step 2: Apply Teflon Tape or Pipe Dope
After prepping your pipes and double-checking specifications, apply Teflon tape or pipe dope to the threads of the pipe ends. Teflon tape is a thin, flexible material that wraps around the threads to create a seal. Pipe dope is a paste applied to the threads to achieve the same effect.
Wrap the Teflon tape around the threads clockwise, covering the entire threaded area. If using pipe dope, apply a thin, even layer to the threads. Both methods help create a tight seal and prevent leaks.

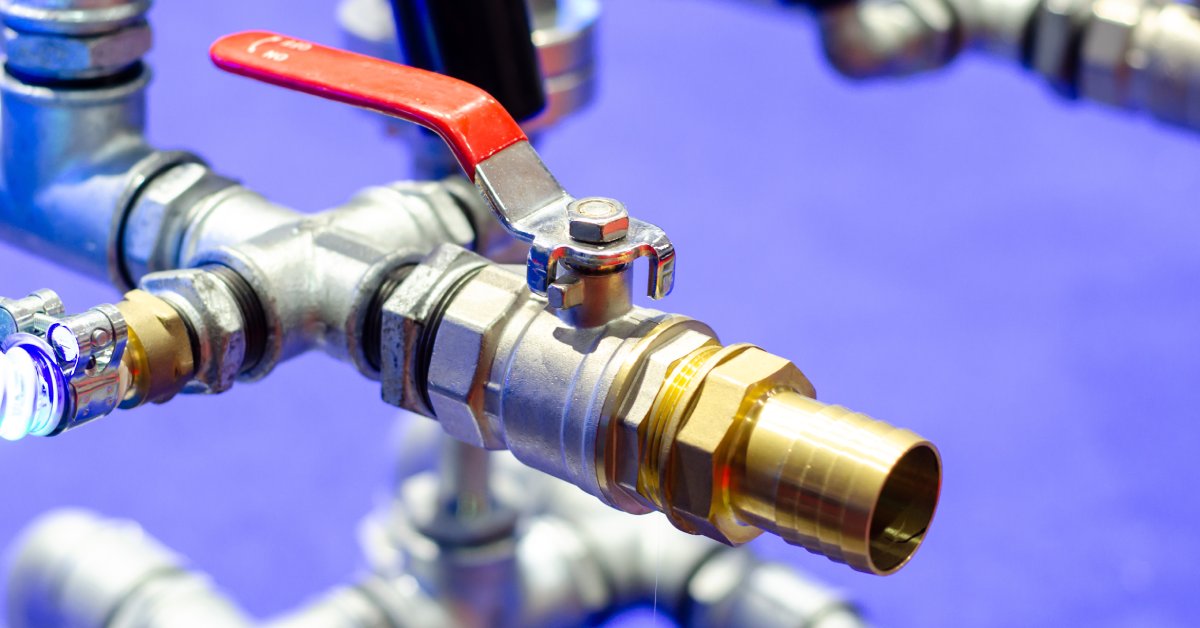

Step 3: Attach the Ball Valve
Now, it’s time to attach the valve! Position the ball valve onto the prepared pipe ends, aligning it correctly with the flow direction. Hand-tighten the valve onto the threads, ensuring it is secure but not overly tight.
Once the valve is in place, use a pipe wrench to tighten it further. Avoid overtightening, as this can damage the threads and compromise the seal. Tighten the valve until it is snug, using the pipe wrench for leverage.
Step 4: Check for Proper Alignment
After attaching the ball valve, check for proper alignment. Ensure the valve handle is in the correct position, and the valve body is aligned with the pipe. Proper alignment is essential for smooth operation and flow control.
Adjust the valve as needed to achieve the correct alignment. Loosen the valve slightly, and reposition it before tightening it again if necessary. This step ensures that the valve operates smoothly and efficiently.
Step 5: Tighten Using a Torque Wrench
Use a torque wrench to apply the recommended torque value for the final tightening. Each valve manufacturer provides specific torque values for their products, so refer to the manufacturer’s guidelines for the correct torque setting.
Set the torque wrench to the recommended value, and tighten the valve until it clicks, indicating that the correct torque has been applied. This step ensures that the valve is securely tightened without over-torquing, preventing damage to the threads and providing a reliable seal.

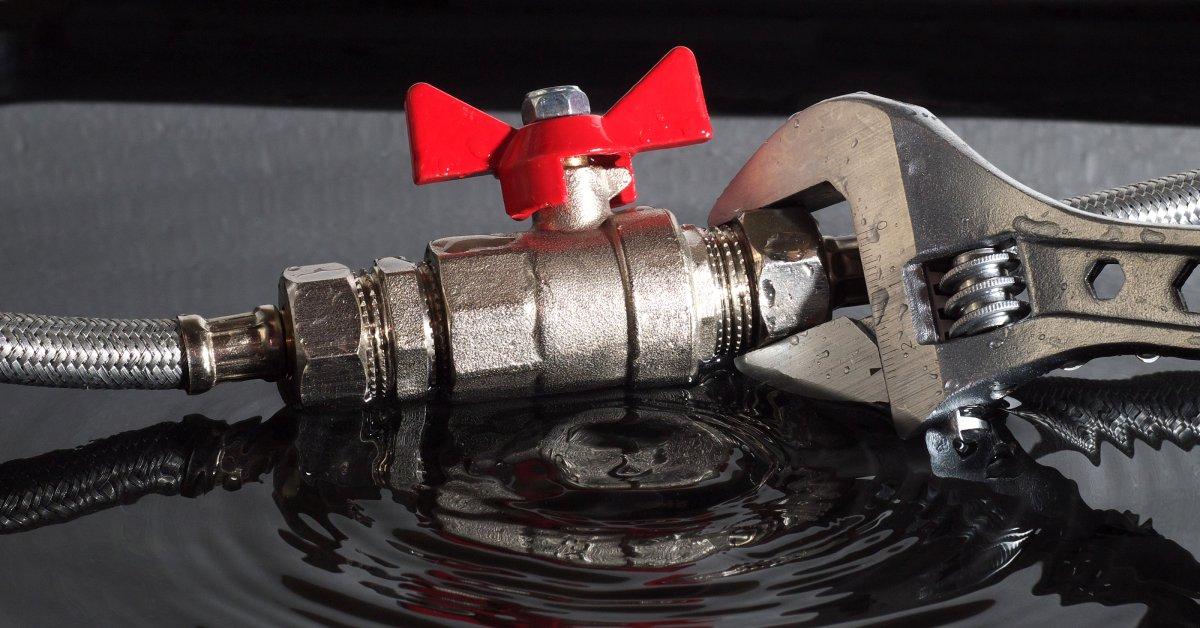

Tips for a Secure Seal
A secure seal is crucial for preventing leaks and maintaining system efficiency. Follow these tips to achieve a tight and reliable seal:
- Use the correct amount of Teflon tape or pipe dope. Too little can result in leaks, while too much can cause the threads to bind.
- Tighten the valve evenly, avoiding overtightening. Apply force gradually, and check for proper alignment throughout the process.
- Inspect the valve and connections after installation for signs of leaks. If you notice any leaks, address them immediately by tightening the valve or reapplying sealant.
The Importance of Regular Maintenance
Regular maintenance is key to keeping ball valves working well and lasting longer. Like any mechanical part, ball valves can wear down over time, causing leaks or poor flow control.
By establishing a routine inspection schedule, you can catch problems early and fix them before they become bigger issues that disrupt operations. Regular maintenance extends the life of your ball valves and boosts overall system reliability, safety, and efficiency.
Choosing the Right Ball Valve for Your Application
Choosing the right ball valve is essential for optimal performance. Key considerations include the type of fluid or gas, operating pressure, temperature, and required flow rate. Ensure the valve material is compatible with the liquid or gas, like stainless steel for corrosive environments or brass for water applications.
Consult with valve suppliers or manufacturers for tailored recommendations. Installing and tightening ball valves prevents leaks and makes systems more reliable. For high-quality options, explore our wholesale brass ball valves at DirectMaterial.
