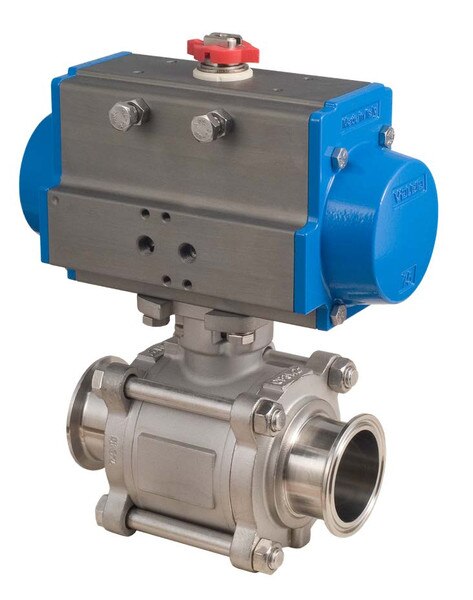

The Bonomi 8P0773 series pneumatic actuated packages feature the 771[cavity filled] three-piece full port stainless steel ball valves with sanitary connections. Both valve series are ISO 5211 direct mount, and come with a grounded ball and stem, and a Ra 15 finish. A grounded ball & stem is standard.

The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302°F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Actuator Features

• Hard anodized extruded aluminum body
• Concentric spring sets
• Die cast aluminum end caps
• Solid steel barstock pinion (not casting)
• 0°-90° rotation adjustment cam
• 0°-90° rotation adjustment bolts
• POM piston guides
• Minimum air pressure rating: 80 psi
• Maximum air pressure rating: 116 psi
• Working temperature: -4°F - 302°F
• No lubrication maintenance required for the entire actuator lifetime
• 100% factory tested

Valve Features

• Stainless Steel, 3 Piece Direct Mount
• Full port, sizes 1/2” to 4”
• 771 - Cavity Filled
• ISO 5211 mounting pad with double “D” stem
• Temperature range -20°F to 450°F
• Working pressure 1000 psi WOG (1/2” to 1”) 800 psi WOG (1-1/2” to 2”) 600 psi WOG (2-1/2” to 4”)
• Blow-out proof stem
• Anti-static Device
• International polishing to Ra 15 micron
• Tri-clamp style end connections
• Ball valves comply with standards: ISO 5211, ANSI B16.11, MSS SP-25, MSS SP-55
