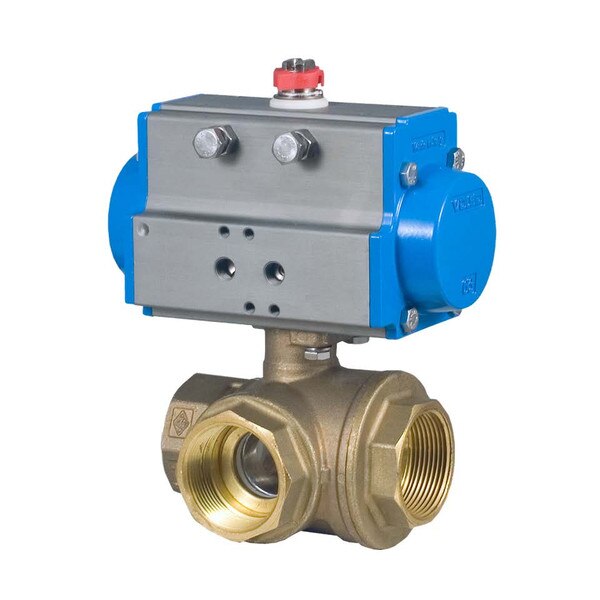

Spring Return Valbia Pneumatic Actuator w/ Lead-Free Brass 3-Way Stand Port Ball Valve
Manufacturer: Valbia
Spring Return Valbia Pneumatic Actuator w/ Lead-Free Brass 3-Way Stand Port Ball Valve - Made in Italy!
The 8P0131LF 3-way T port and 8P0130LF/8P0132LF L port lead-free low torque brass ball valves using the light weight VB series technopolymer electric actuator offer the best in durability for commercial and light industrial applications. The 8P0129LF/8P0131LF lead-free series 3-way T port with its four-seated design can allow straight through flow, diversion, and complete shut-off capability. The 8P0130LF/8P0132LF L port is also four seated, allowing one to utilize any port as an entry. The valve is also approved under the NSF standard 61/372 for potable water use.
Spring Return Valbia Pneumatic Actuator w/ Lead-Free Brass 3-Way Stand Port Ball Valve
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Mininum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrification maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- Lead-Free Brass - NSF 61/372
- Standard Port, Sizes 1/4” to 3”
- ISO 5211 pad and square stem
- Pressure rating to 400 WOG
- Temperature range -4°F to 366°F
- Four (4) seat design for sealing between pressured ports
- Blow-out proof stem, chrome plated brass ball
- Low torque design with back up O-ring seats
- Double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position@80 Psi
