Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem)

SKU: 8P0136

Manufacturer: Valbia

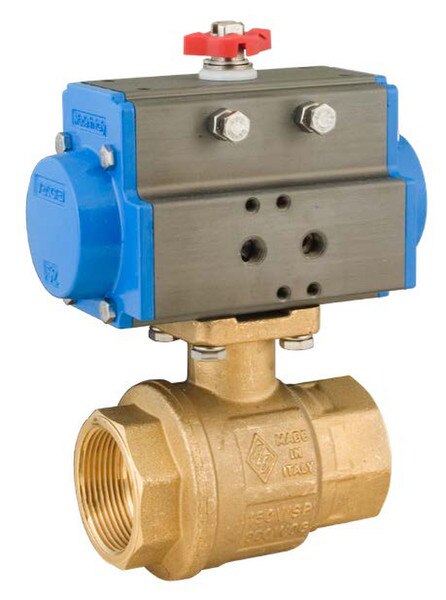

Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem)

SKU: 8P0136

Manufacturer: Valbia

From: $357.95 to $687.35
  • 8P0136-025 1/4" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $357.95
  • 8P0136-038 3/8" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $357.95
  • 8P0136-050 1/2" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $357.95
  • 8P0136-075 3/4" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $389.79
  • 8P0136-100 1" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $397.48
  • 8P0136-125 1-1/4" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $443.59
  • 8P0136-150 1-1/2" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $555.59
  • 8P0136-200 2" Spring Return Valbia Pneumatic Actuator with Brass Full Port Ball Valve (Stainless Steel Ball & Stem) Low Stock - Chat or Call to check
    Qty. $687.35
Items:0  |  Total:$0.00

DESCRIPTION

The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Actuator Features

  • Hard anodized extruded aluminum body
  • Concentric spring sets
  • Die cast aluminum end caps
  • Solid steel barstock pinion (not casting)
  • 0°-90° rotation adjustment cam
  • 0°-90° rotation adjustment bolts
  • POM piston guides
  • Minimum air pressure rating: 80 psi
  • Maximum air pressure rating: 116 psi
  • Working temperature: -4°F - 302°F
  • No lubrication maintenance required for the entire actuator lifetime
  • 100% factory tested

Valve Features

  • Brass
  • Full Port, Sizes 1/4” to 2”
  • ISO 5211 pad and square stem
  • Pressure rating to 600 WOG
  • Low torque design
  • Double O-ring stem seal design for extended cycle life
  • 100% electronically tested in the open and closed position@80 Psi
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
