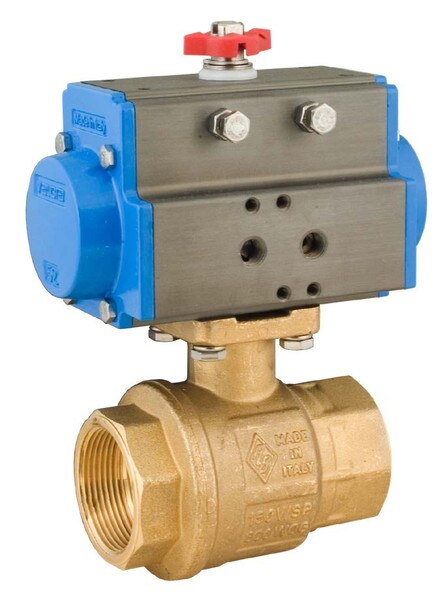

Spring Return Valbia Pneumatic Actuator with Lead Free Brass Full Port Ball Valve (Satinless Steel Ball/Stem)
SKU: 8P0136LF
Manufacturer: Valbia
Spring Return Pneumatic Actuator with 2-Way Lead-Free Brass Full Port Ball Valve Direct Mount - Made in Italy!
Bonomi North America series 8P0135LF lead-free brass automated ball valve package features a rugged NEMA 4 metal housing and a full port 600 psi lead-free brass ball valve.
Spring Return Valbia Pneumatic Actuator with Lead Free Brass Full Port Ball Valve (Satinless Steel Ball/Stem)
SKU: 8P0136LF
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Hard anodized extruded aluminum body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Mininum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrification maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- Lead-Free Brass
- Full Port, Sizes 1/4" to 4"
- ISO 5211 pad and square stem
- 253N LF - Stainless steel ball and stem
- Pressure rating to 600 WOG
- Temperature range -4°F to 366°F
- Low torque design with back up O-ring seats
- Double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position @ 80PSI
- NSF 61/372
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
