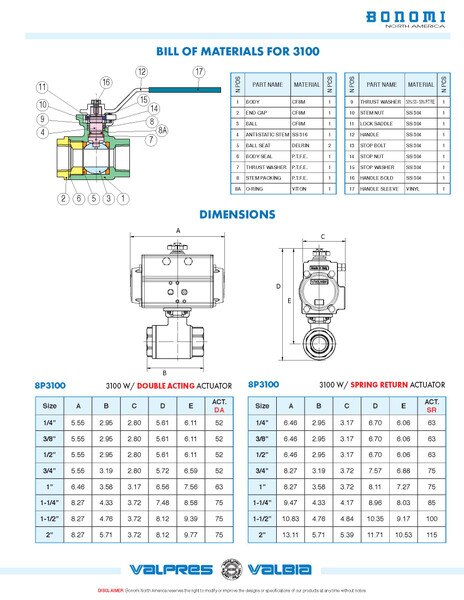

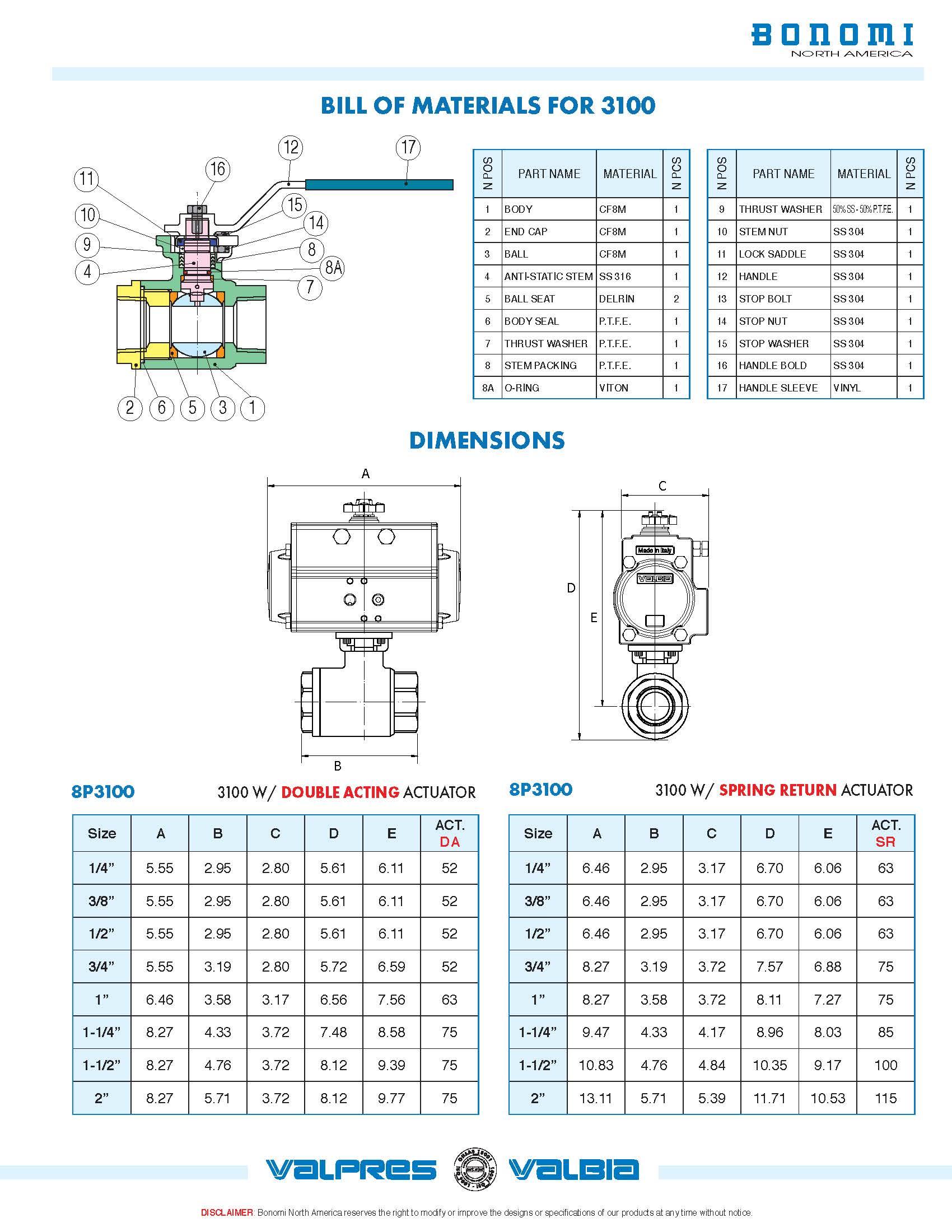

The Bonomi 8P3102 series pneumatic actuated package features a 3,000PSI investment cast ASTM A351-CF8M stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball & stem.

The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coat-ed end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302°F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Actuator Features

• Hard anodized extruded aluminum body
• Concentric spring sets
• Die cast aluminum end caps
• Solid steel barstock pinion (not casting)
• 0°-90° rotation adjustment cam
• 0°-90° rotation adjustment bolts
• POM piston guides
• Mininum air pressure rating: 80 psi
• Maximum air pressure rating: 116 psi
• Working temperature: -4°F - 302°F
• No lubrication maintenance required for the entire actuator lifetime
• 100% factory tested

Valve Features

• 2-piece CF8M body
• Full port, sizes 1/4” to 1-½”
• Reduced port, sizes 2”
• Blow out proof stem/anti-static design
• Pressure rating 3000 psi (100°F)
• Temperature range -20°F to 185°F
• ISO 5211 mounting pad
