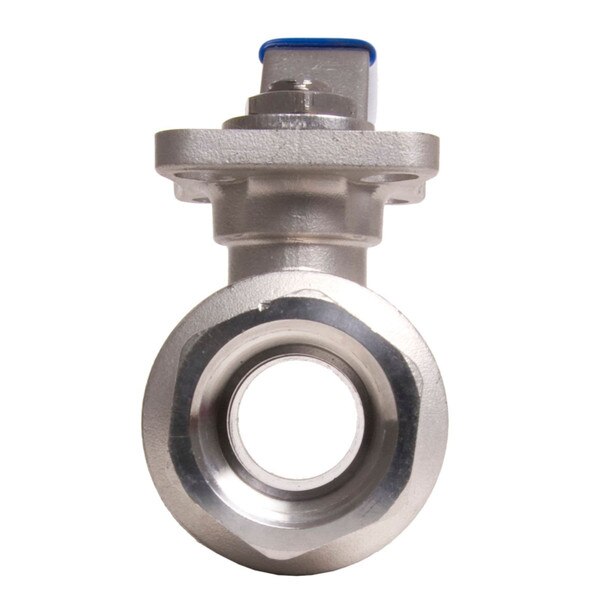

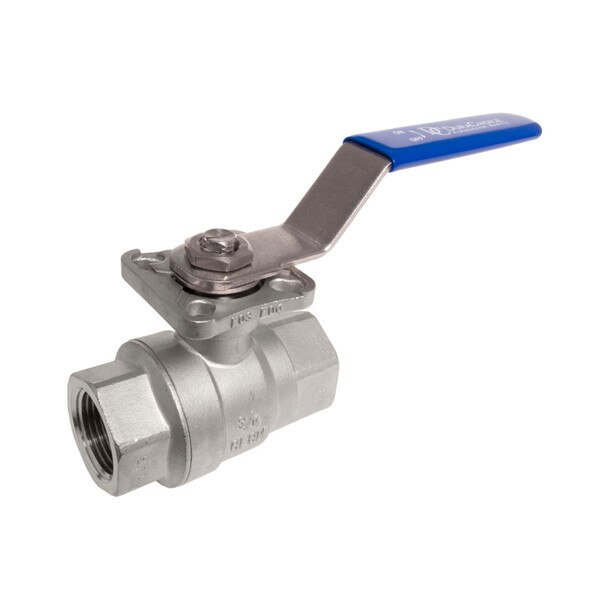

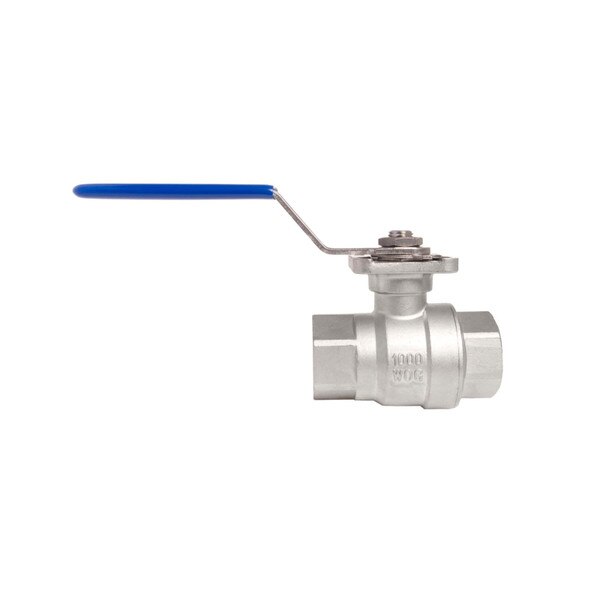

Stainless Steel (316) Ball Valve - 2 Piece, Full Port, with High Mounting Pad and Direct Mounting Pad, 1,000 PSI
• S.S. 316 investment cast full port body
• ISO-5211 square stem mounting pad for actuator
• Working on pressure of 1,000 PSI (WOG)
• Suitable for full range of liquids and gas
• PTFE seals and seats
• Temperature range: -40 to 400 Degrees F
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• Female x Female NPT threaded ends to ANSI B1.20.1
• Heavy duty locking handle with blue vinyl insulator
SS316 Ball Valve with High Platform and Direct Mounting Pad, 2 Piece Full Port,. 1,000 WOG, 14 NPT
Manufacturer: DuraChoice
DESCRIPTION
VBSP2H features an ISO-2011 with a high platform, direct mounting pad. The two-piece full port design allows for full flow and minimal material buildup.
- S.S. 316 investment cast full port body
- ISO-5211 square stem mounting pad for actuator
- Working pressure of 1,000 PSI (WOG)
- Suitable for full range of liquids and gas
- PTFE seals and seats
- Temperature range: -40 to 400 Degrees F
- Low operation torque
- 100% individually tested
- Blowout-proof stem
- Female x Female NPT threaded ends to ANSI B1.20.1
- Heavy duty locking handle with blue vinyl insulator

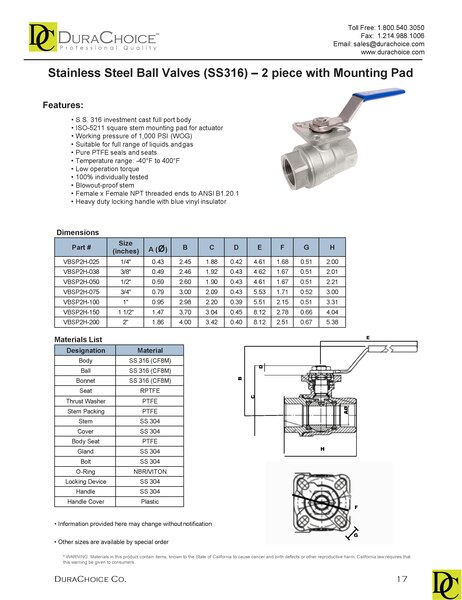

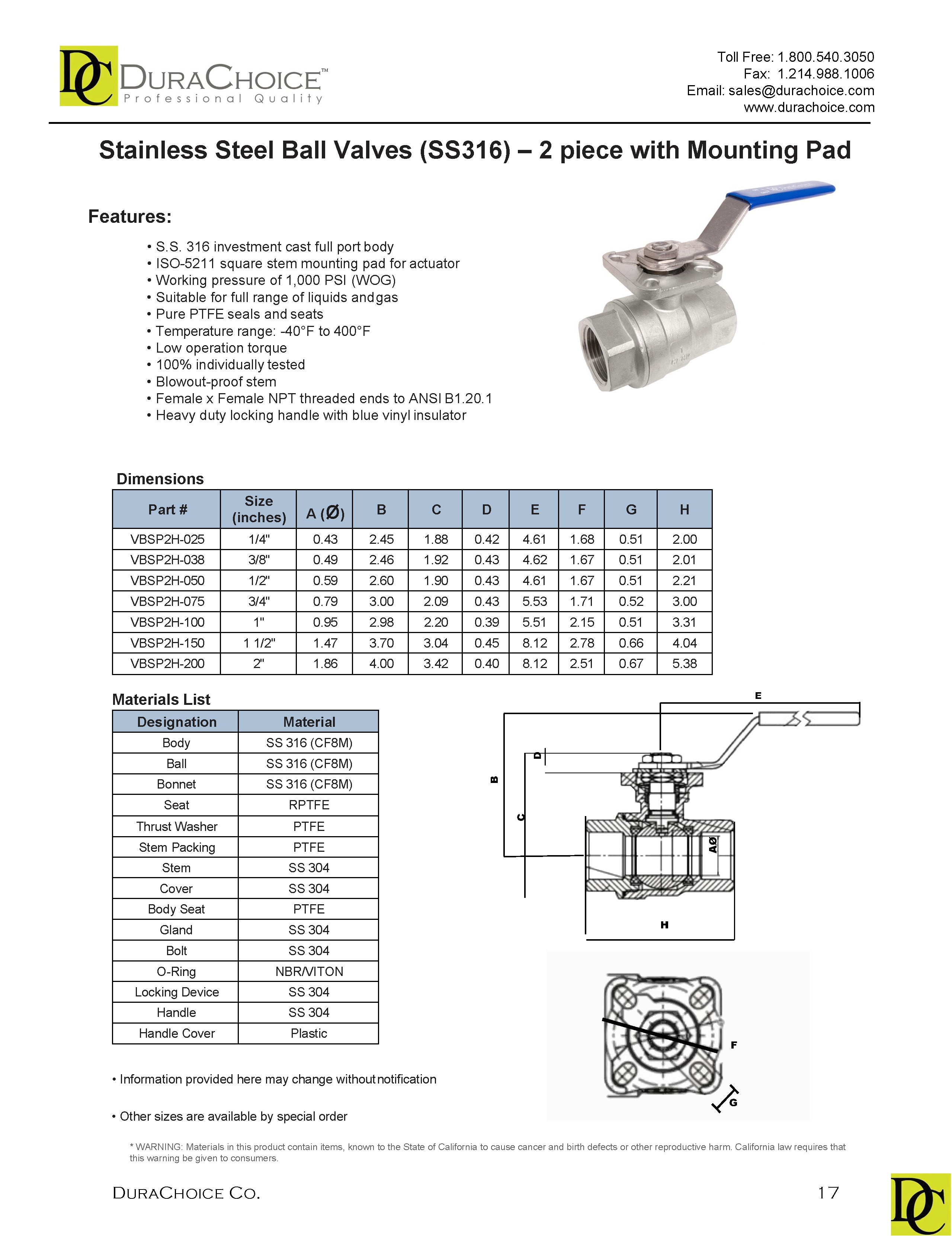

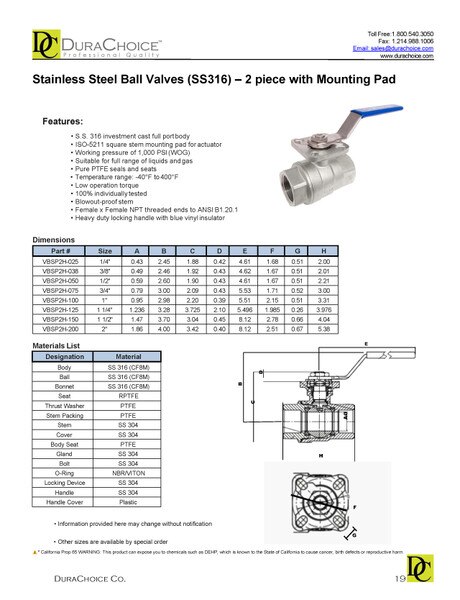

Description | Material |
Body | SS 316 (CF8M) |
Ball | SS 316 (CF8M) |
Bonnet | SS 316 (CF8M) |
Seat | RPTFE |
Thrust Waster | PTFE |
Stem Packing | PTFE |
Stem | SS 304 |
Cover | SS 304 |
Body Seat | PTFE |
Gland | SS 304 |
Bolt | SS 304 |
O-Ring | NBR/VITON |
Locking Device | SS 304 |
Handle | SS 304 |
Handle Cover | Plastic |
