  • Stainless Steel 304 Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle

Stainless Steel 304 Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle

SKU: VBS42GNL

Manufacturer: DuraChoice

1 Review
From: $10.60 to $77.12
  • VBS42GNL-025 1/4" Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
    Qty. $10.60
  • VBS42GNL-050 1/2" Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
    Qty. $11.88
  • VBS42GNL-075 3/4" Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
    Qty. $17.11
  • VBS42GNL-100 1" Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
    Qty. $25.04
  • VBS42GNL-200 2" Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
    Qty. $77.12
Items:0  |  Total:$0.00

DESCRIPTION

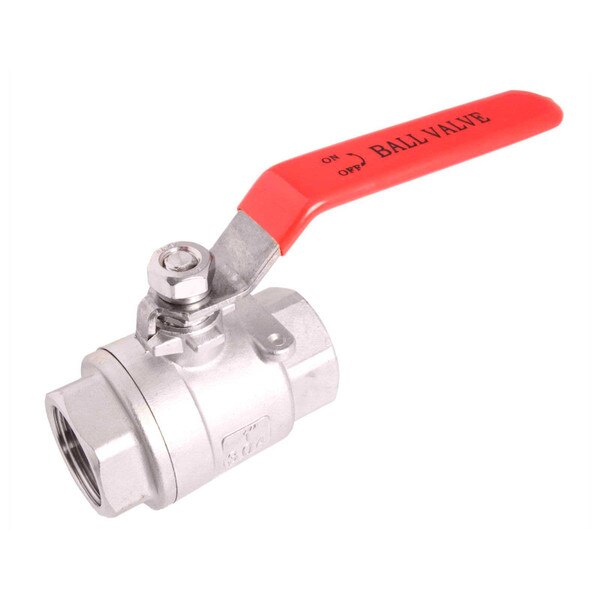

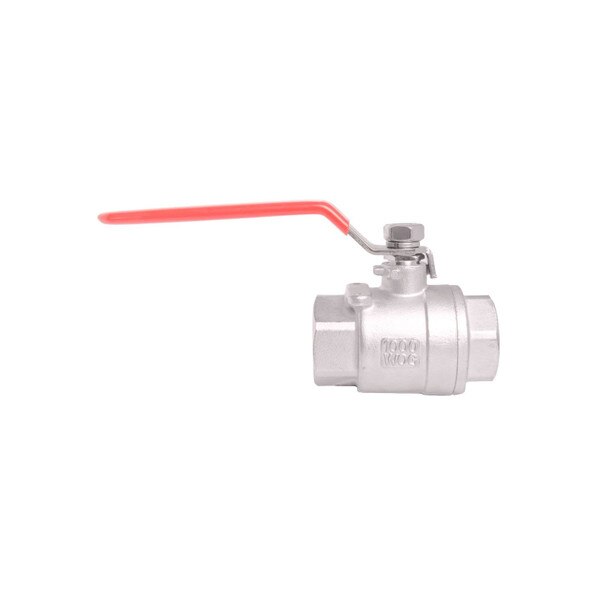

Stainless Steel (304) Ball Valve - Non-Locking Full Port 1,000 psi (WOG) w/ red handle
The valve's red handle has no logo, making the part well-suited for OEM applications. However, the logo-free handle and non-locking handle are the only differences between this valve and the VBS42.

  • S.S. 304 investment casting body
  • Working Pressure of 1,000 psi (WOG)
  • Minimal pressure drop due to large full-size ports
  • Suitable for full range of liquids and gas
  • Temperature range: -40°F to 400°F
  • Low operation torque
  • 100% individually tested
  • Blowout-proof stem
  • NPT threaded ends to ANSI B1.20.1
  • Heavy duty locking handles with red vinyl insulator

Designation

Material

Body

SS 304 (CF8)

Ball

SS 304 (CF8)

Cap

SS 304 (CF8)

Seat

RPTFE

Thrust Washer

SS 304 (CF8)

Stem Packing

PTFE

Stem

SS 304 (CF8)

Body Seal

PTFE

Gland Nut

SS 304 (CF8)

Stem Nut

SS 304 (CF8)

Stem Seal

PTFE

Handle

SS 304 (CF8)

Handle Cover

Plastic
