Stainless Steel (316) 3-Way Ball Valve - L Port or T Port - With Mounting Pad, 1000PSI

SKU: VBS3LT

Manufacturer: DuraChoice

5 Reviews
From: $43.47 to $282.45
  • VBS3L-025 1/4" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $43.47
  • VBS3L-038 3/8" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $43.47
  • VBS3L-050 1/2" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $44.90
  • VBS3L-075 3/4" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $59.34
  • VBS3L-100 1" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $89.02
  • VBS3L-125 1-1/4" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad 1000PSI
    Qty. $130.89
  • VBS3L-150 1-1/2" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad 1000PSI
    Qty. $177.08
  • VBS3L-200 2" Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad, 1000PSI
    Qty. $282.45
  • VBS3T-025 1/4" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $43.47
  • VBS3T-038 3/8" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $43.47
  • VBS3T-050 1/2" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $44.90
  • VBS3T-075 3/4" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $59.34
  • VBS3T-100 1" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $89.02
  • VBS3T-125 1-1/4" Stainless Steel (316) 3-Way Ball Valve - T Port With Mounting Pad 1000PSI
    Qty. $130.89
  • VBS3T-150 1-1/2" Stainless Steel (316) 3-Way Ball Valve - T Port With Mounting Pad 1000PSI
    Qty. $177.08
  • VBS3T-200 2" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI
    Qty. $282.45
Items:0  |  Total:$0.00

DESCRIPTION

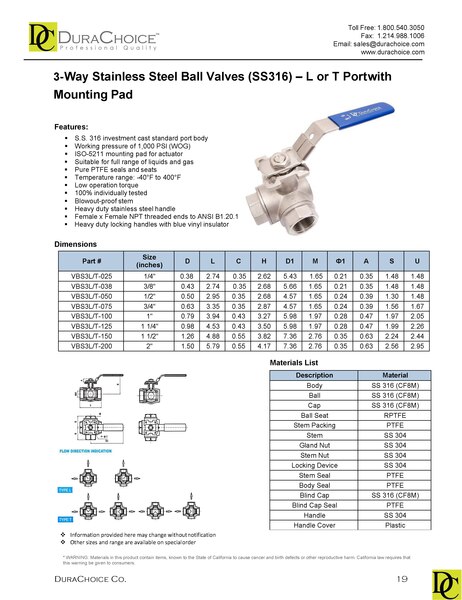

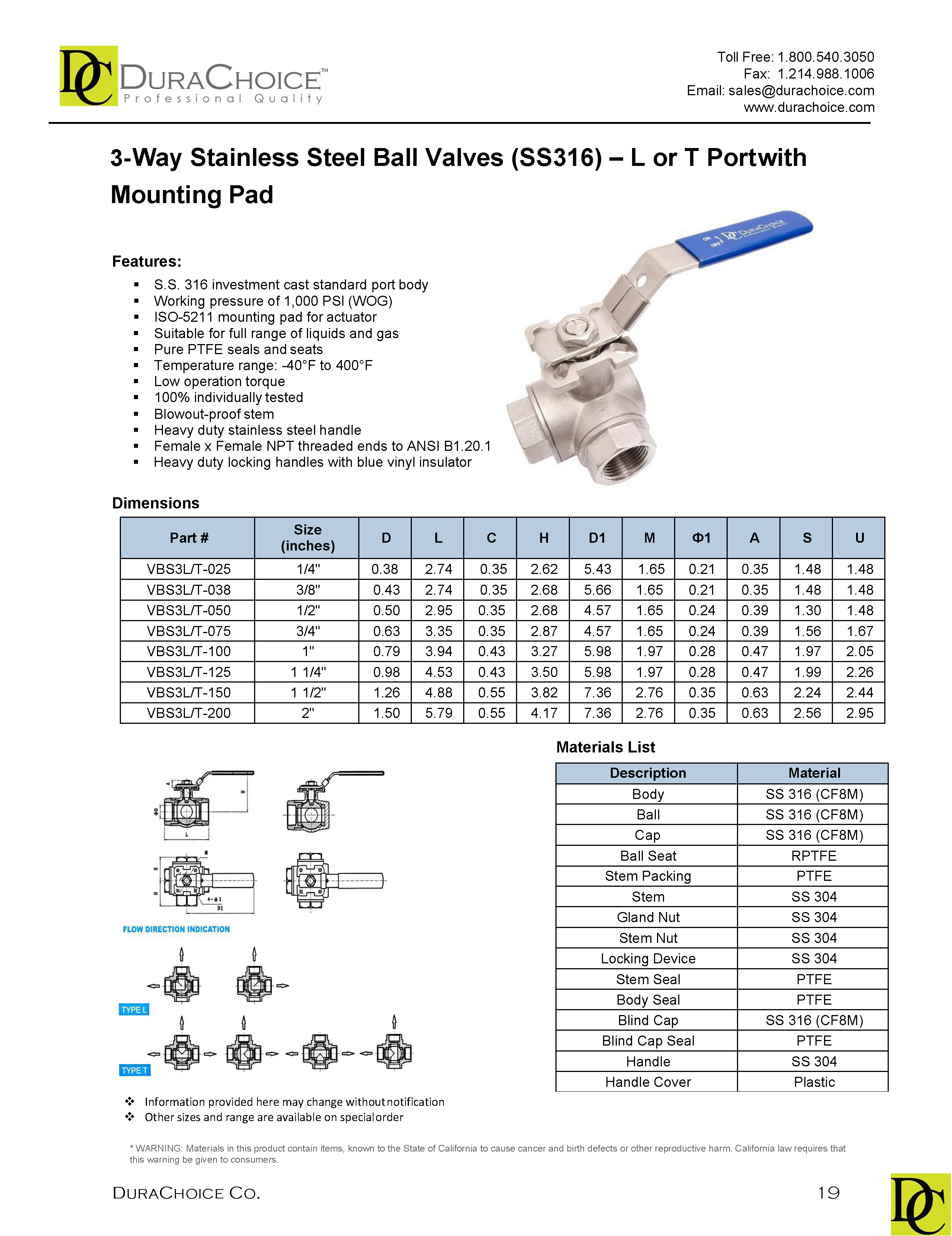

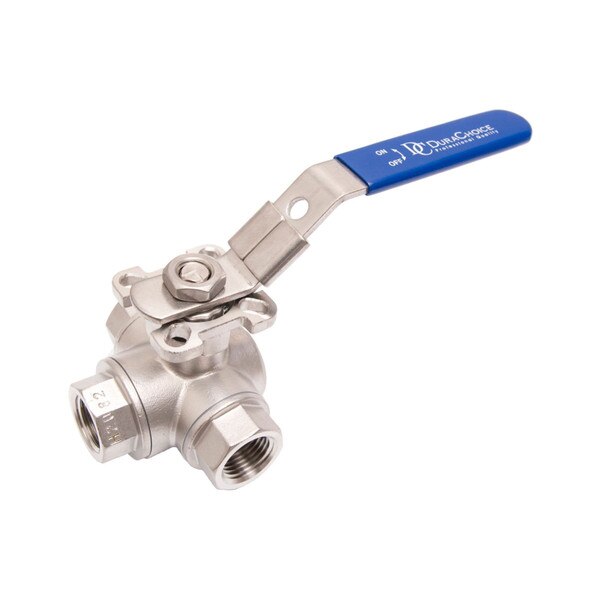

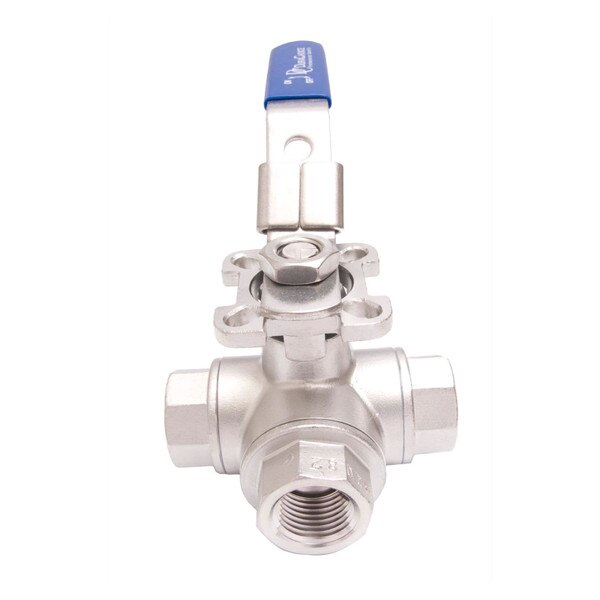

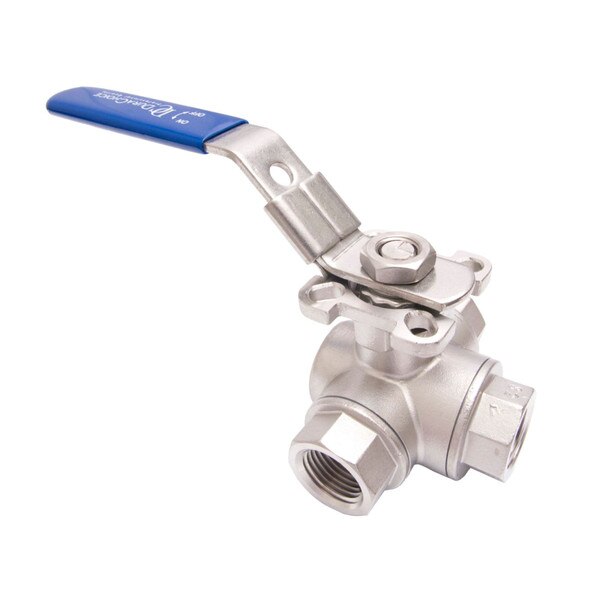

Stainless Steel (316) 3-Way Ball Valve - L Port or T Port - With Mounting Pad, 1000PSI

Three Way (3-way) Ball Valves, also known as directional ball valves, multi-port ball valves and diverting ball valves, are the easiest way to change the direction of flow in plumbing systems. Available in L-Port and T-Port configurations, the valves can switch flow from one line to another or open all three ports so that fluids or gas run from one line into two.



The T-port 3 way stainless steel ball valve (VBS3T) also serves as a mixing valve, bringing together two sources to be mixed in the outflow pipe. The L-port 3 way stainless steel ball valve (VBS3L) is a directional valve with a full shut-off capability, something the T-port does not do without modification.




  • Standard Port
  • 1,000 psi (WOG)
  • ISO-5211 Mounting pad for actuator
  • S.S. 316 Investment cast body
  • Suitable for full range of liquids and gas
  • Pure teflon seals and seats
  • Temperature range: -60 to 450 degree Fahrenheit
  • Low operation torque
  • 100% individually tested

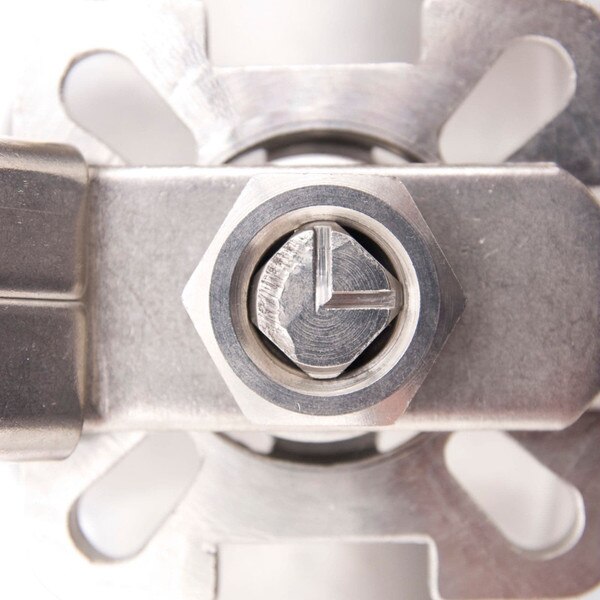

  • Blow-out proof stem
  • FxF NPT threaded ends to ANSI B1.20.1
  • Heavy duty locking handles with blue vinyl insulator



Materials List

DescriptionMaterial

BODYSS 316 (CF8M)

GLAND NUTSS 304

FLOW INDICATION PLATEALUMINUM

STEM NUTSS 304

LOCKINGSS 304

HANDLESS 304

HANDLE COVERPLASTIC

STEMSS 304

STEM PACKINGPTFE

STEM SEALPTFE

CAPSS 316 (CF8M)

BODY SEALPTFE

BALLSS 316 (CF8M)

BALL SEATRPTFE

BLIND CAPSS 316 (CF8M)

BLIND CAP SEALPTFE
