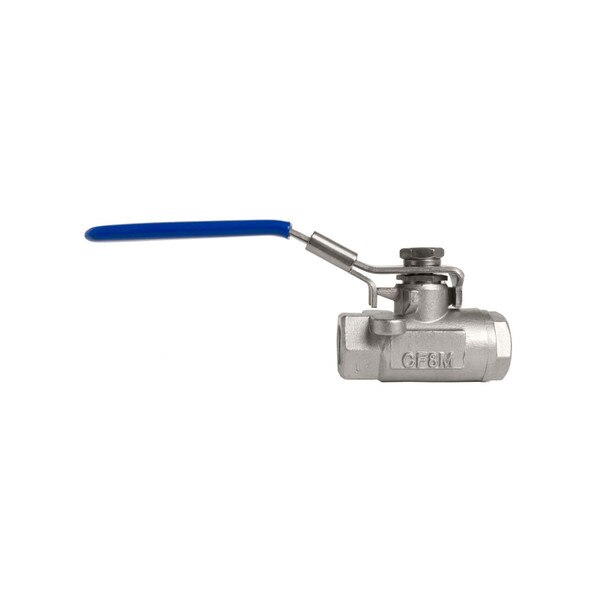

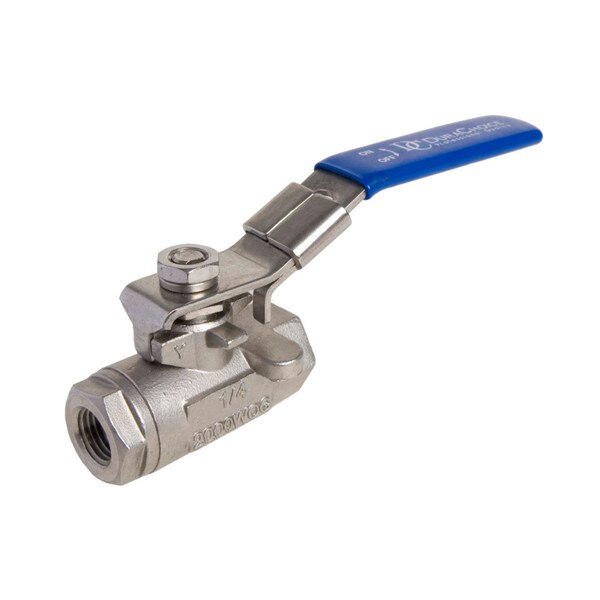

Heavy Duty Standard Port Stainless Steel 316 Ball Valve, 2 Piece - 2,000 PSI (WOG)
• SS 316 investment cast standard port body
• Working pressure of 2,000 PSI (WOG)
• Suitable for full range of liquids and gas
• PTFE seals and seats
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• Female x Female NPT Threaded ends (ANSI B1.20.1)
• Heavy duty locking handles with blue vinyl insulator
• Temperature range: -60 to 450 Degrees F
Heavy Duty Standard Port Stainless Steel 316 Ball Valve, 2 Piece - 2,000 PSI (WOG)
SKU: VBS2K
Manufacturer: DuraChoice
DESCRIPTION
This heavy duty, stainless steel, ball valve is pressure rated up to 2,000 PSI WOG. This standard port's design works great for most situations.
Features:
SS 316 investment cast standard port body
Working pressure of 2,000 PSI (WOG)
Suitable for full range of liquids and gas
PTFE seals and seats
Low operation torque
100% individually tested
Blowout-proof stem
Female x Female NPT Threaded ends (ANSI B1.20.1)
Heavy duty locking handles with blue vinyl insulator
Temperature range: -60 to 450 Degrees F
Materials List
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Cap - SS 316 (CF8M)
Seat - RPTFE
Thrust Washer - SS 304
Stem Packing - PTFE
Stem Seal - PTFE
Body Seal - PTFE
Gland Nut - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Cover - Plastic
Features:
SS 316 investment cast standard port body
Working pressure of 2,000 PSI (WOG)
Suitable for full range of liquids and gas
PTFE seals and seats
Low operation torque
100% individually tested
Blowout-proof stem
Female x Female NPT Threaded ends (ANSI B1.20.1)
Heavy duty locking handles with blue vinyl insulator
Temperature range: -60 to 450 Degrees F
Materials List
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Cap - SS 316 (CF8M)
Seat - RPTFE
Thrust Washer - SS 304
Stem Packing - PTFE
Stem Seal - PTFE
Body Seal - PTFE
Gland Nut - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Cover - Plastic
