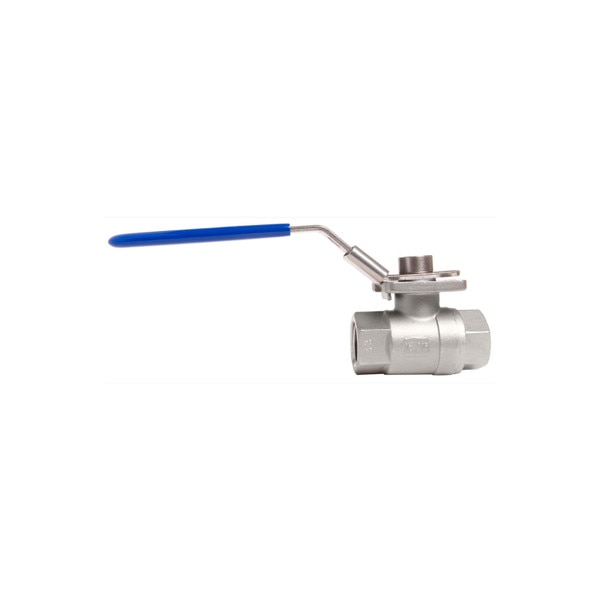

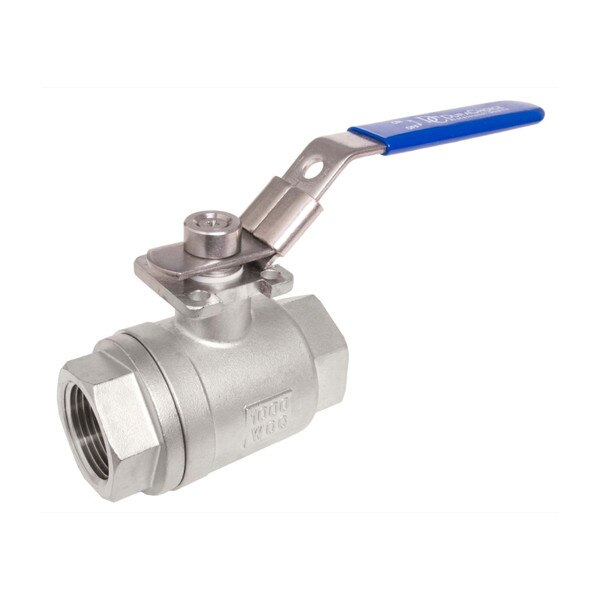

Stainless Steel (316) Ball Valve - 2 Piece w/ Mounting Pad, 1,000 PSI

SKU: VBSP2

Manufacturer: DuraChoice

From: $0.00 to $154.66
  • VBSP2-025 1/4" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $22.46
  • VBSP2-038 3/8" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $22.46
  • VBSP2-050 1/2" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $25.37
  • VBSP2-075 3/4" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $34.41
  • VBSP2-100 1" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $51.14
  • VBSP2-125 1-1/4" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI Low Stock - Chat or Call to check
    Qty. $68.73
  • VBSP2-150 1-1/2" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI Low Stock - Chat or Call to check
    Qty. $100.12
  • VBSP2-200 2" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI
    Qty. $154.66
  • VBSP2-300 3" Stainless Steel (316) Ball Valve - 2pc With Mounting Pad, 1000PSI Low Stock - Chat or Call to check
    Qty. $0.00
Items:0  |  Total:$0.00

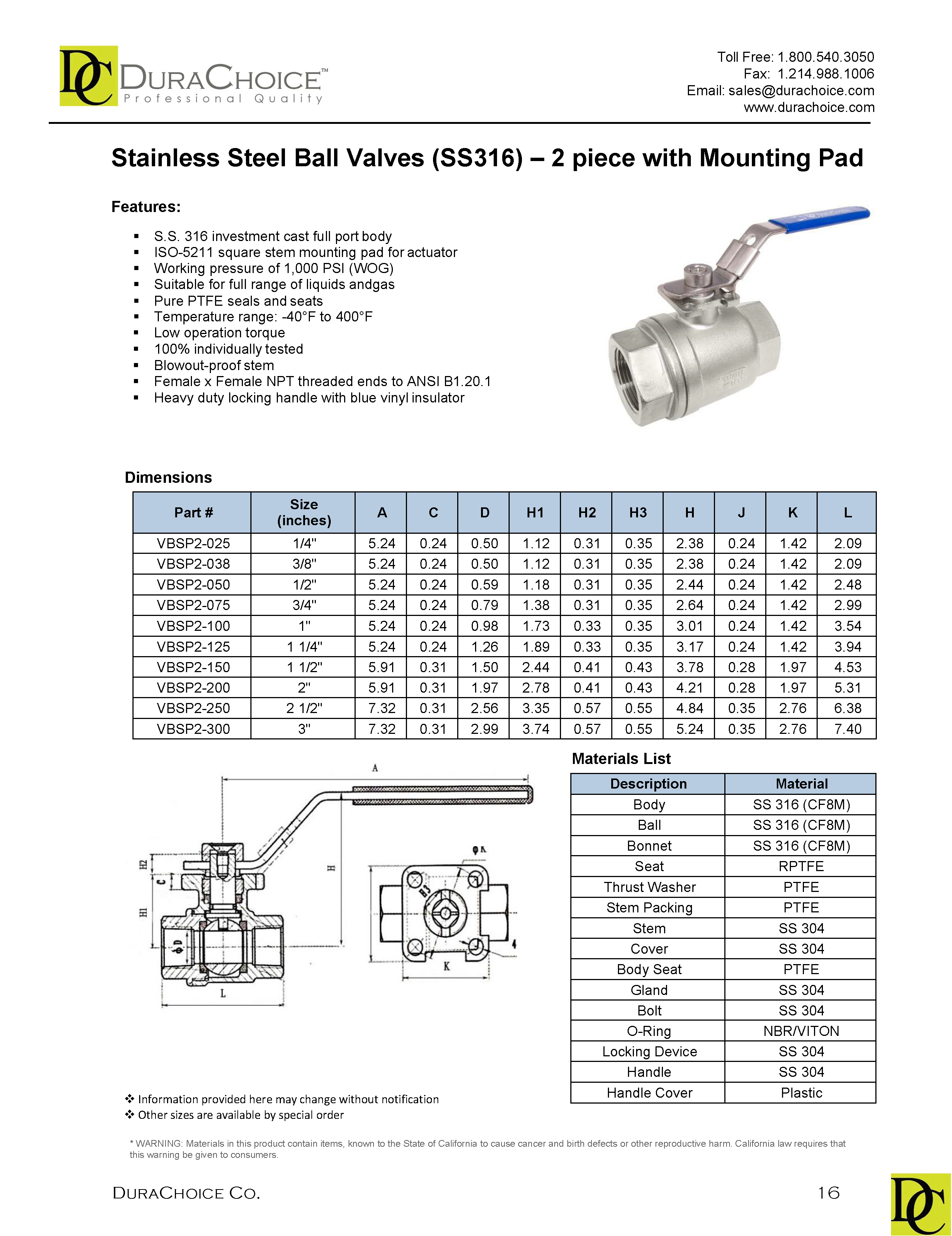

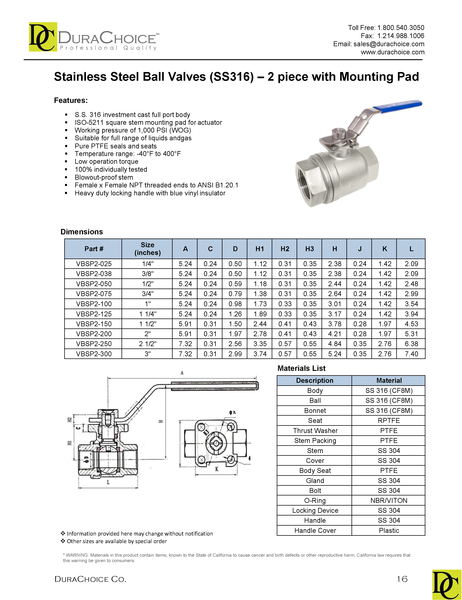

DESCRIPTION

Does your design call for an actuator-driven ball valve? DuraChoice has you covered with the VBSP2, featuring a ISO-2011 mounting pad. The two-piece full port design allows for full flow and minimal material buildup.

  • S.S. 316 investment casting body

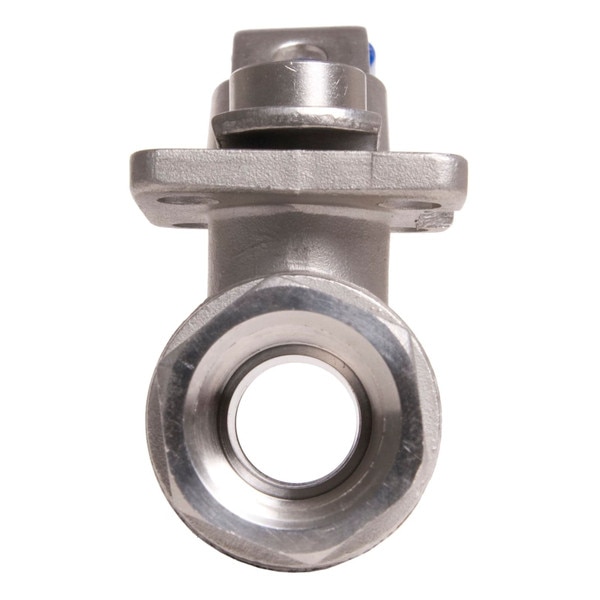

  • ISO-5211 square stem mounting pad for actuator
  • Working pressure of 1,000 PSI
  • Suitable for full range of liquids and gas (WOG)
  • Pure Teflon seals and seats
  • Temperature range: -40°F to 400°F
  • Low operation torque
  • 100% individually tested
  • Blowout-proof stem
  • Female x Female NPT threaded ends to ANSI B1.20.1
  • Heavy duty locking handles with blue vinyl insulator

Designation - Material
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Bonnet - SS 316 (CF8M)
Seat - RPTFE
Thrust Waster - PTFE
Stem Packing - PTFE
Stem - SS 304
Cover - SS 304
Body Seat - PTFE
Gland - SS 304
Bolt - SS 304
O-Ring - NBR/VITON
Locking Device - SS 304
Handle - SS 304
Handle Cover - Plastic
