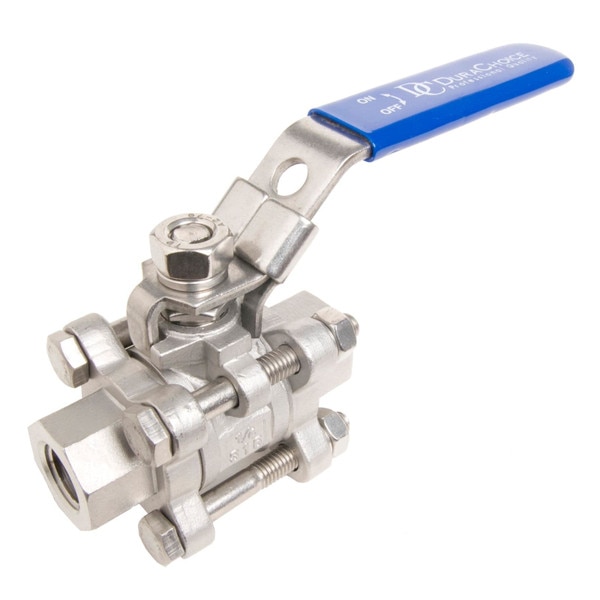

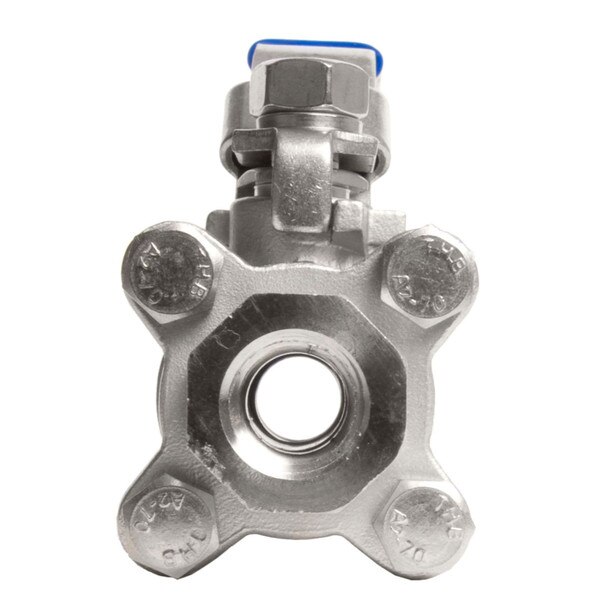

Stainless Steel (316) Ball Valve - 3-Piece Full Port Body, 1,000 PSI (WOG)

SKU: VBS03

Manufacturer: DuraChoice

2 Reviews
From: $20.74 to $781.69
  • VBS03-025 1/4" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $20.74
  • VBS03-038 3/8" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $20.74
  • VBS03-050 1/2" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $23.61
  • VBS03-075 3/4" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $32.17
  • VBS03-100 1" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $46.39
  • VBS03-125 1-1/4" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG Low Stock - Chat or Call to check
    Qty. $67.99
  • VBS03-150 1-1/2" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $92.58
  • VBS03-200 2" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $137.11
  • VBS03-250 2-1/2" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG Low Stock - Chat or Call to check
    Qty. $297.32
  • VBS03-300 3" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG Low Stock - Chat or Call to check
    Qty. $429.82
  • VBS03-400 4" Stainless Steel (316) Ball Valve - 3pc Body Full Port, 1000WOG
    Qty. $781.69
Items:0  |  Total:$0.00

DESCRIPTION

Three-piece ball valves like this one are great for disassembly, repair or cleaning in applications where cleanliness matters most. The 3-piece full port design allows for maximum flow and discourages fluid separation, while the S.S. 316 construction reduces contamination.




  • Working pressure of 1,000 PSI (WOG)
  • S.S. 316 investment casting body
  • Blowout-proof stem
  • Locking device handle
  • Casting Approved AD2000-Wo
  • Thread: ASME B1.20.1
  • Inspection Testing: API598

Description - Material
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Cap - SS 316 (CF8M)
Seat - RPTFE
Thrust Washers - PTFT/SS 304
Stem Packing - PTFT
Stem - SS 304
Bolt - SS 304
Nut - SS 304
Gland Nut - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Cover - Plastic
