  • Stainless Steel (316) Flange Ball Valve - 2 Piece, ANSI-Class 150 lb.

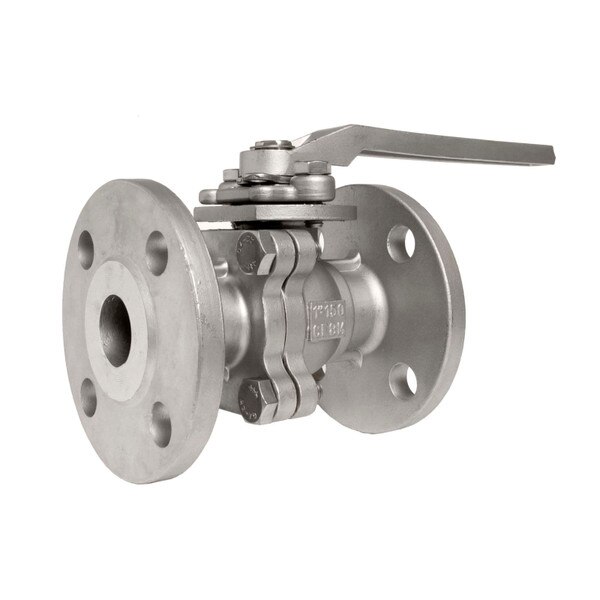

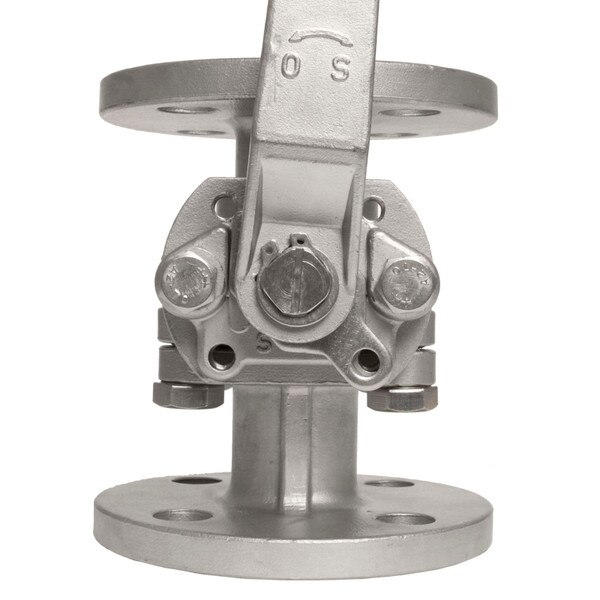

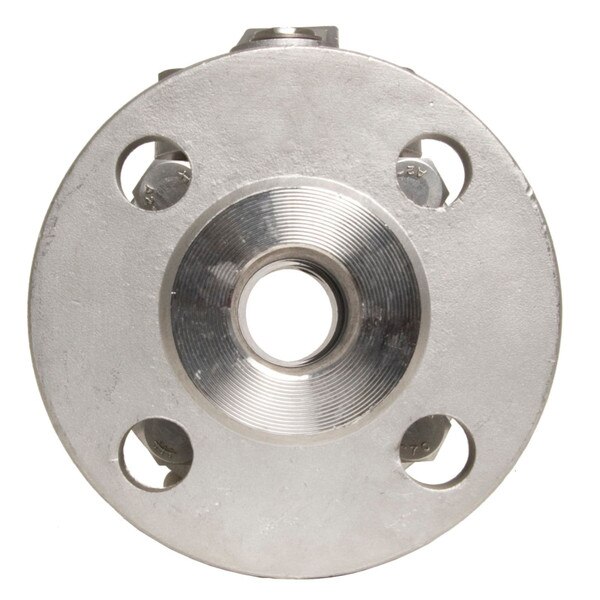

Stainless Steel (316) Flange Ball Valve - 2 Piece, ANSI-Class 150 lb.

SKU: VBSF1

Manufacturer: DuraChoice

From: $80.50 to $1,060.92
  • VBSF1-050 1/2" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $80.50
  • VBSF1-075 3/4" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $91.63
  • VBSF1-100 1" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $123.54
  • VBSF1-125 1-1/4" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $157.19
  • VBSF1-150 1-1/2" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $239.26
  • VBSF1-200 2" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $322.63
  • VBSF1-250 2-1/2" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $482.52
  • VBSF1-300 3" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $629.90
  • VBSF1-400 4" Stainless Steel (316) Flange Ball Valve - 2pc, 150LB
    Qty. $1,060.92
Items:0  |  Total:$0.00

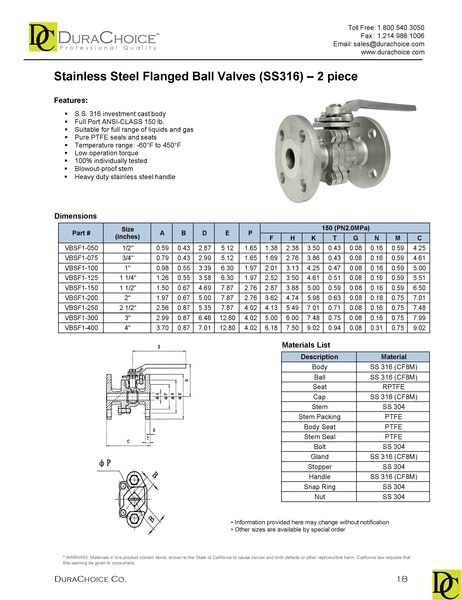

DESCRIPTION

Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, the valves allow for easier cleaning and replacement.

S.S. 316 investment casting body
Full Bore ANSI-CLASS 150 lb.

  • S.S. 316 investment cast body
  • Full Port ANSI-CLASS 150 lb.
  • Suitable for full range of liquids and gas
  • Pure Teflon seals and seats
  • Temperature range : -60 to 450 Degrees F
  • Low operation torque
  • 100% individually tested
  • Blowout-proof stem
  • Heavy duty stainless steel handle


Designation - Material
Body - SS 316/ CF8M
Ball - SS 316/ CF8M
Seat - RPTFE
Cap - SS 316/ CF8M
Stem - SS 304
Stem Packing - SS 304
Body Seal - PTFE
Stem Seal - PTFE
Bolt - SS 304
Gland - SS 316/ CF8M
Stopper - SS 304
Handle - SS 316/ CF8M
Snap Ring - SS 304
Nut - SS 304
