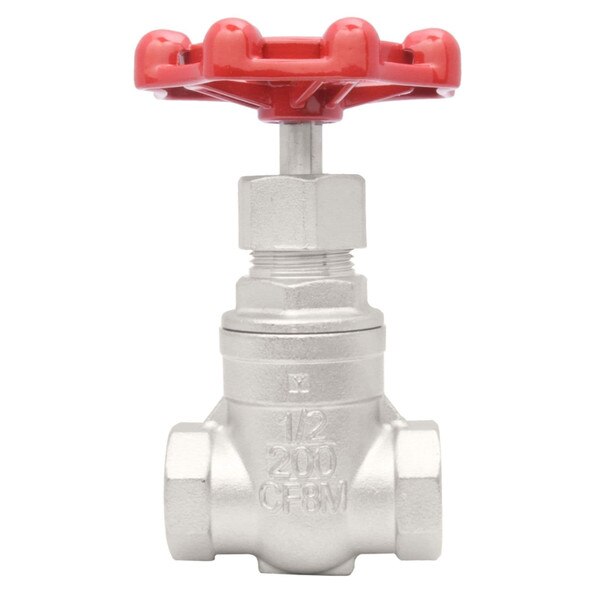

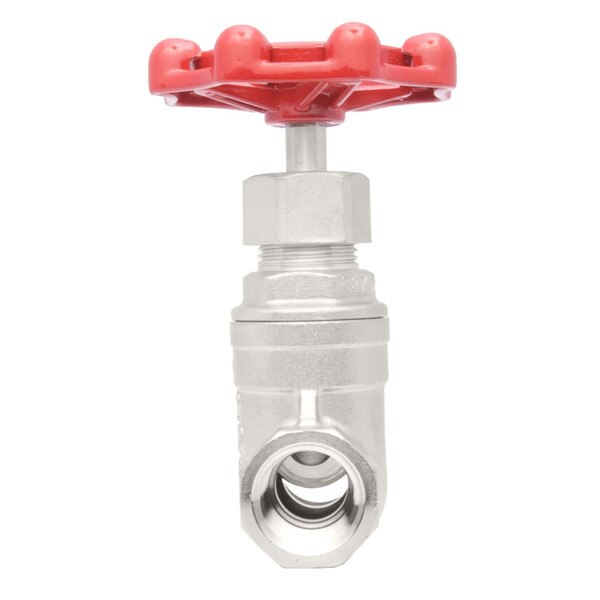

Stainless Steel (316) Gate Valve - 200 PSI (WOG)
- S.S. 316 investment casting body
- Working pressure of 200 PSI
- Suitable for full range of liquids and gas (WOG)
- Temperature range: -60 to 450 Degrees F
- 100% individually tested
- FxF NPT Threaded ends (ANSI B1.20.1)
Stainless Steel 316 Gate Valve - 200 PSI (WOG)
SKU: VGS01
Manufacturer: DuraChoice
DESCRIPTION
Gate Valves differ from ball valves because they can be opened incrementally by turning the aluminum hand wheel at the top.
Flow is controlled by an interior gate that can be raised or lowered to allow more or less liquid or gas through. Gate valves are also known as sluice valves.

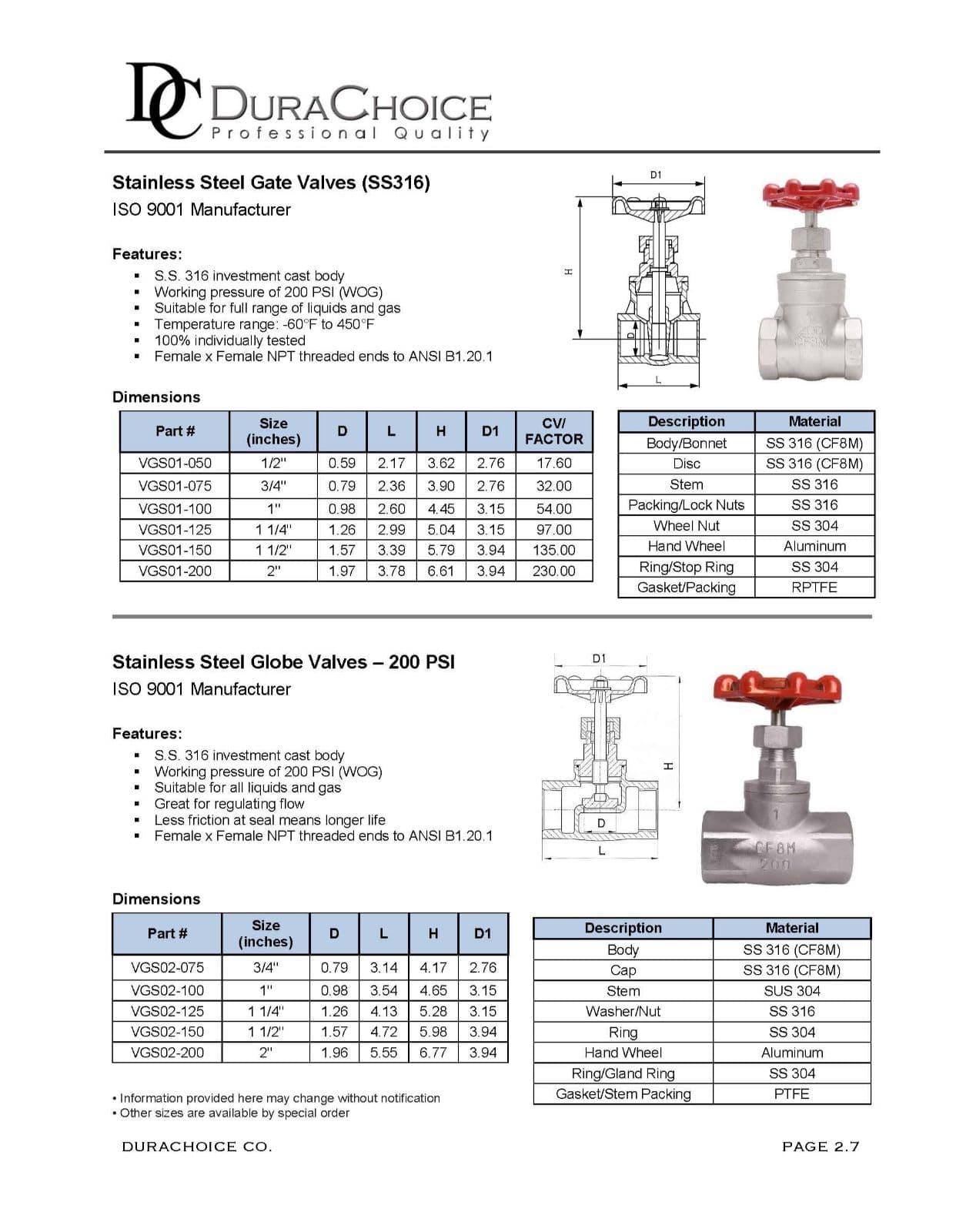

Designation - Material
Body/Bonnet - SS 316 (CF8M)
Disc - SS 316 (CF8M)
Stem - SS 316 (CF8M)
Packing/Lock Nuts - SS 316 (CF8M)
Wheel Nut - SS 304
Hand Wheel - Aluminum
Ring/Stop Ring - SS 304
Gasket/Packing - RPTFE
Flow is controlled by an interior gate that can be raised or lowered to allow more or less liquid or gas through. Gate valves are also known as sluice valves.
- SS 316 investment casting body
- Working pressure of 200 PSI
- Suitable for full range of liquids and gas (WOG)
- Temperature range: -60°F to 450°F
- 100% individually tested
- FxF NPT Threaded ends (ANSI B1.20.1)
Designation - Material
Body/Bonnet - SS 316 (CF8M)
Disc - SS 316 (CF8M)
Stem - SS 316 (CF8M)
Packing/Lock Nuts - SS 316 (CF8M)
Wheel Nut - SS 304
Hand Wheel - Aluminum
Ring/Stop Ring - SS 304
Gasket/Packing - RPTFE
