  • Stainless Steel (316) Needle Valves - 10,000 psi

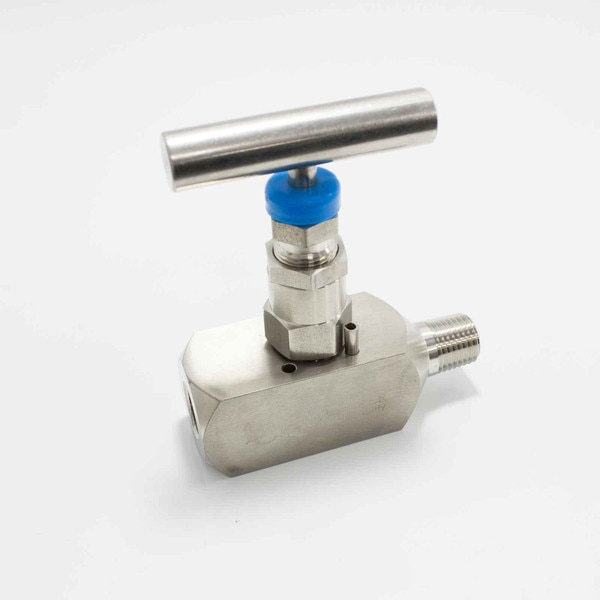

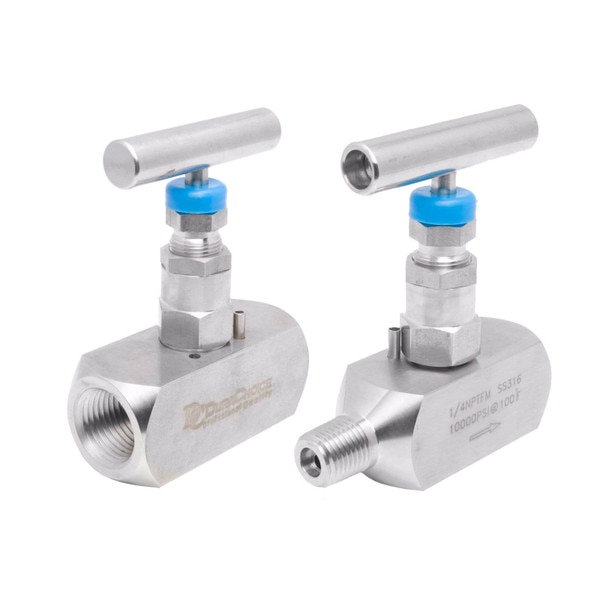

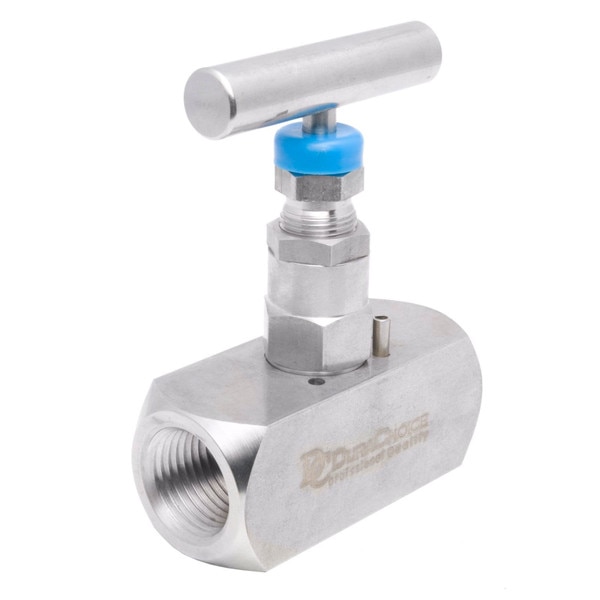

Stainless Steel (316) Needle Valves - 10,000 psi

SKU: VNS

Manufacturer: DuraChoice

1 Review

Stainless Steel (316) Needle Valves - 10,000 psi

10,000 PSI at -65 to 100F

Bubble-tight metal-to-metal seat for positive shut off

2 piece non-rotating hardened (17 -4PH) tip for first time seal and long service life

Pressure responsive multi-ring/piston acking for compression and pressure dynamic sealing

Metal-to-metal body bonnet seal for high pressure and high temperature sealing

Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration

Backing sealing stem to extend packing life

NPT threaded

100% Hydrostatic testing

Stainless Steel (316) Needle Valves - 10,000 psi

SKU: VNS

Manufacturer: DuraChoice

From: $56.28 to $147.39
  • VNS01-025 1/4" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $56.28
  • VNS01-038 3/8" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $56.28
  • VNS01-050 1/2" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $67.25
  • VNS01-075 3/4" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $89.77
  • VNS01-100 1" Stainless Steel (316) Needle Valve - Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $147.39
  • VNS02-025 1/4" Stainless Steel (316) Needle Valve - Packed Bonnet Male to Female NPT, 10,000 PSI
    Qty. $68.54
  • VNS02-050 1/2" Stainless Steel (316) Needle Valve - Packed Bonnet Male to Female NPT, 10,000 PSI
    Qty. $73.95
  • VNS02-038 3/8" Stainless Steel (316) Needle Valve - Packed Bonnet Male to Female NPT, 10,000 PSI
    Qty. $68.54
  • VNSP1 Stainless Steel (316) Needle Valve - Panel Mount, Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $81.63
  • VNSP1-025 1/4" Stainless Steel (316) Needle Valve - Panel Mount, Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $81.63
  • VNSP1-038 3/8" Stainless Steel (316) Needle Valve - Panel Mount, Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $81.63
  • VNSP1-050 1/2" Stainless Steel (316) Needle Valve - Panel Mount, Packed Bonnet FxF NPT, 10,000 PSI
    Qty. $97.98
Items:0  |  Total:$0.00

DESCRIPTION

DuraChoice Stainless Steel Needle Valves are made for a performance. With a pressure rating of 10,000 psi and features guaranteeing positive shut off, you can count on long life and stellar performance.

  • 10,000 psi at -65 to 100 F
  • Bubble-tight metal-to-metal seat for positive shut off
  • 2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
  • Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
  • Metal-to-metal body bonnet seal for high pressure and high temperature sealing
  • Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
  • Backing sealing stem to extend packing life
  • NPT threaded
  • 100% Hydrostatic testing



DescriptionMaterial
BodySS 316
BonnetSS 316
StemSS 316
Stem TipSS 316
GlandSS 316
Lock NutSS 316
Packing WasherSS 316
Lock PinSS 304
HandleSS
Set ScrewSS
PackingPTFE
Dust CapNylon
