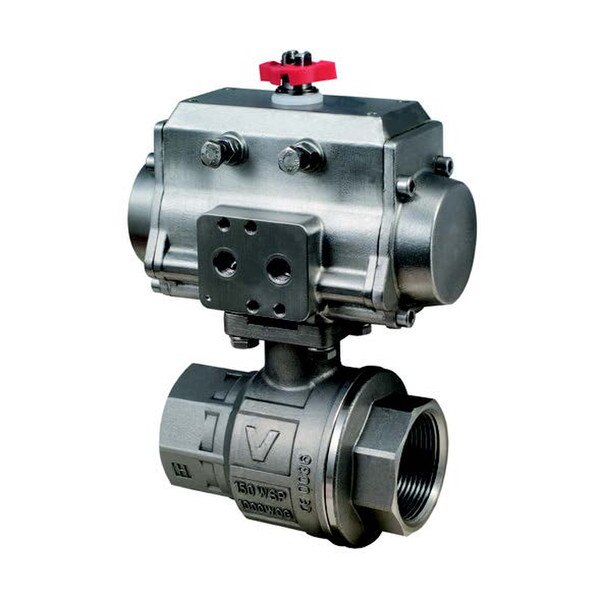

Stainless Steel Double Acting Valbia Pneumatic Actuator with Stainless Steel 2 Piece Full Port Ball Valve (1,000WOG)
Manufacturer: Valbia
Stainless Steel Double Acting Valbia Pneumatic Actuator with Stainless Steel 2 Piece Full Port Ball Valve (1,000WOG) - Made in Italy!
The Bonomi 8P0133SS series pneumatic actuated ball valve offers the smallest total envelope in our industry. This is due to the low torque design of the 700076 stainless steel full port ball valve with O-ring backed energized seats. Further the 700076 incorporates dual Viton O-ring stem seals for leak free and long-lasting performance
Stainless Steel Double Acting Valbia Pneumatic Actuator with Stainless Steel 2 Piece Full Port Ball Valve (1,000WOG)
Manufacturer: Valbia
DESCRIPTION
The Valbia pneumatic actuator comes with a stainless steel body. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302°F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Actuator Features
- Stainless steel body
- Concentric spring sets
- Die cast aluminum end caps
- Solid steel barstock pinion (not casting)
- 0°-90° rotation adjustment cam
- 0°-90° rotation adjustment bolts
- POM piston guides
- Mininum air pressure rating: 80 psi
- Maximum air pressure rating: 116 psi
- Working temperature: -4°F - 302°F
- No lubrication maintenance required for the entire actuator lifetime
- 100% factory tested
Valve Features
- CF8M Stainless Steel
- Full Port, Sizes 1/4” to 3”
- ISO 5211 pad
- Pressure rating to 1000 psi, 150 psi steam
- Temperature -4°F to 366°F
- Blow out proof stem
- P.T.F.E. seats with O-ring backing for low operating torque
- P.T.F.E. seals and Double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position@80 Psi
- Thermal Relief Protection
