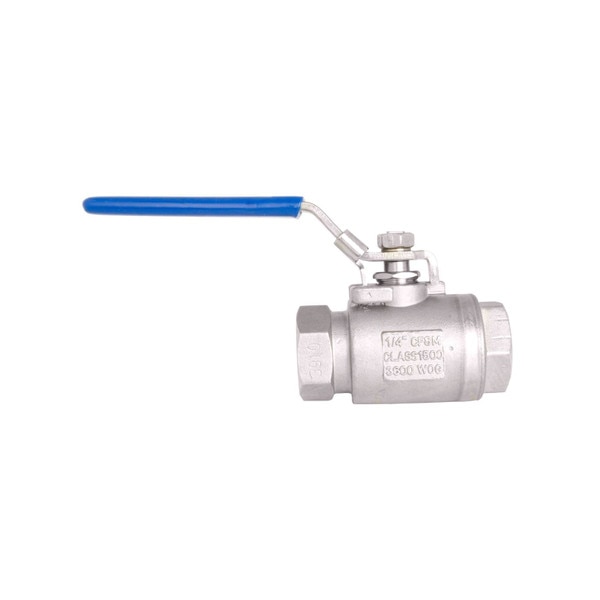

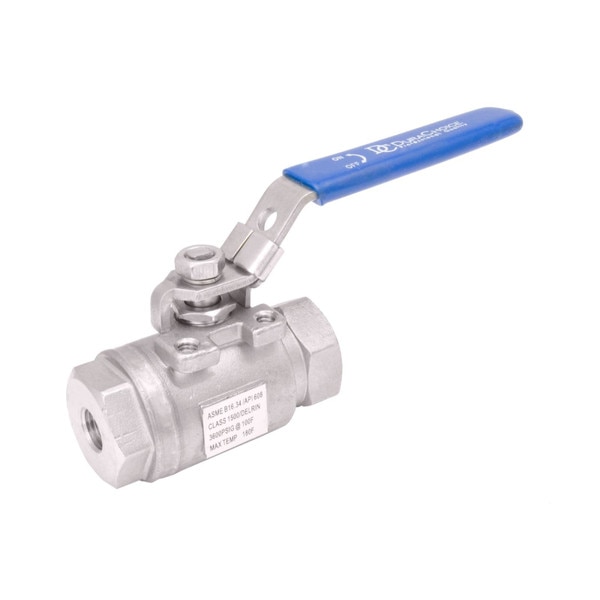

Stainless Steel Seal-Welded Full Port Ball Valve, 3,600 PSI

SKU: VBS3K

Manufacturer: DuraChoice

From: $61.01 to $395.98
  • VBS3K-025 1/4" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $61.01
  • VBS3K-038 3/8" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $61.01
  • VBS3K-050 1/2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $61.01
  • VBS3K-075 3/4" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $91.10
  • VBS3K-100 1" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $120.48
  • VBS3K-125 1-1/4"NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $176.42
  • VBS3K-150 1-1/2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $231.33
  • VBS3K-200 2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 3,600PSI
    Qty. $395.98
Items:0  |  Total:$0.00

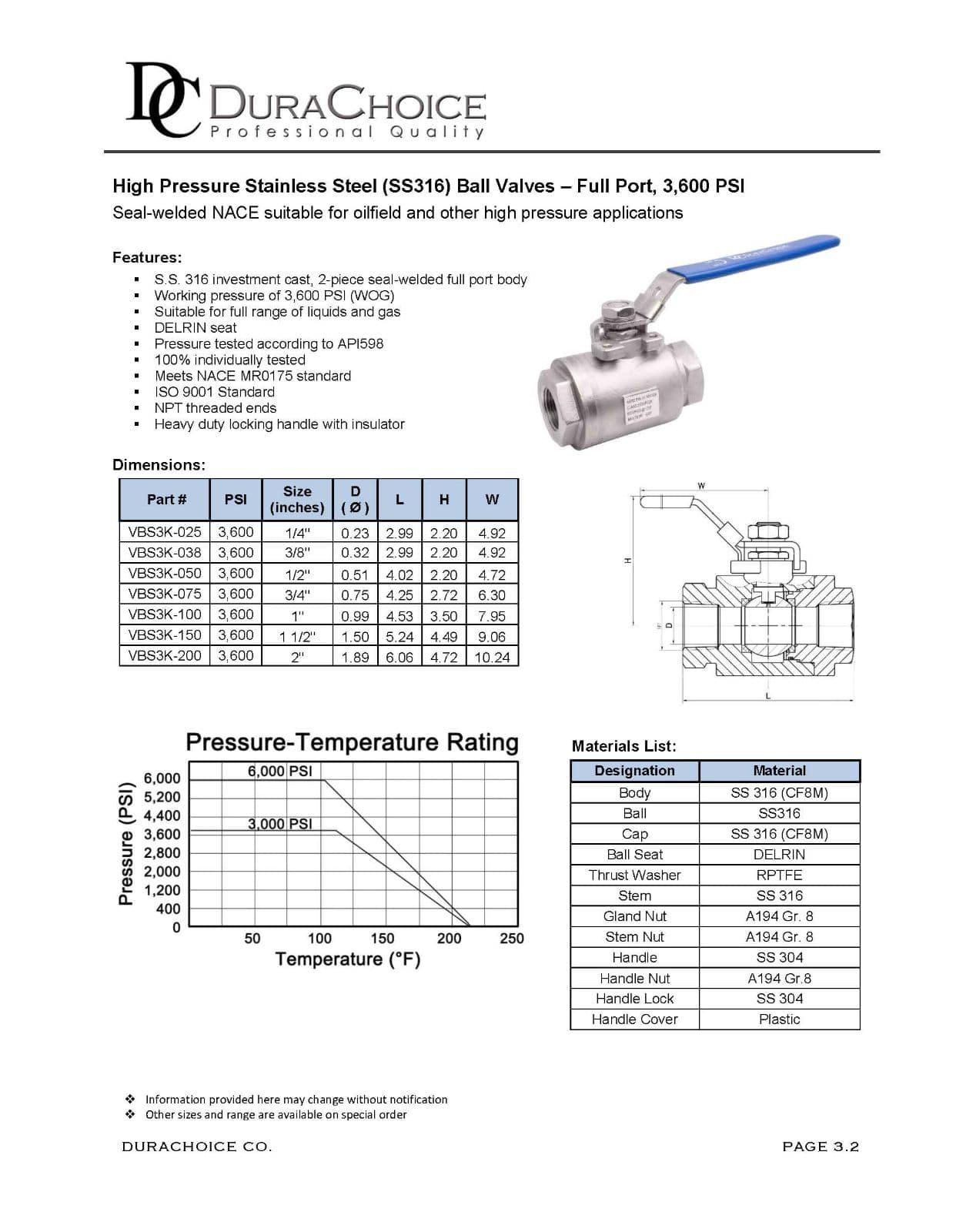

DESCRIPTION

High pressure valve with 3,600 PSI rating. Two-piece, stainless steel 316 body, seal-welded to improve strength.
The VBS3K line of high pressure valves is designed for work in the petroleum and natural gas industries, but will perform just as well in any other high pressure application. Rated at 3,600 PSI, the heavy duty ball valve is seal welded to improve structural integrity.


SS 316 investment casting , 2-piece full port body design
Seal welded for added strength
Working pressure of 3,600 psi (WOG)
Suitable for full range of liquids and gas
DELRIN seat
Pressure tested according to API598
100% individually tested
Meets NACE MR0175 standard
ISO 9001 Standard
NPT threaded ends
Heavy duty locking handle with insulator


Designation - Material
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Cap - SS 316 (CF8M)
Ball Seat - DELRIN
Thrust Washer - RPTFE
Stem - SS 316 (CF8M)
Gland Nut - A194 Gr. 8
Stem Nut - A194 Gr. 8
Handle - SS 304
Handle Nut - A194 Gr. 8
Handle Lock - SS 304
Handle Cover - Plastic


Torque List
VBS3K-0258 N.M71 in-lb
VBS3K-0389 N.M80 in-lb
VBS3K-05011 N.M97 in-lb
VBS3K-07520 N.M177 in-lb
VBS3K-10023 N.M204 in-lb
VBS3K-12535 N.M310 in-lb
VBS3K-15044 N.M389 in-lb
VBS3K-20052 N.M460 in-lb
