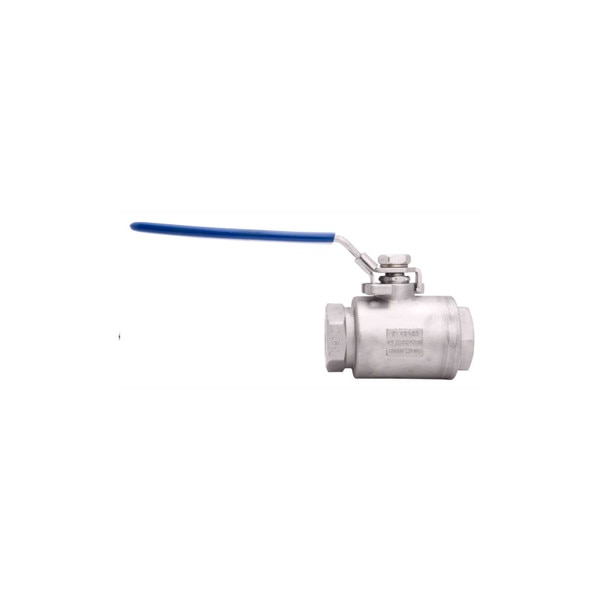

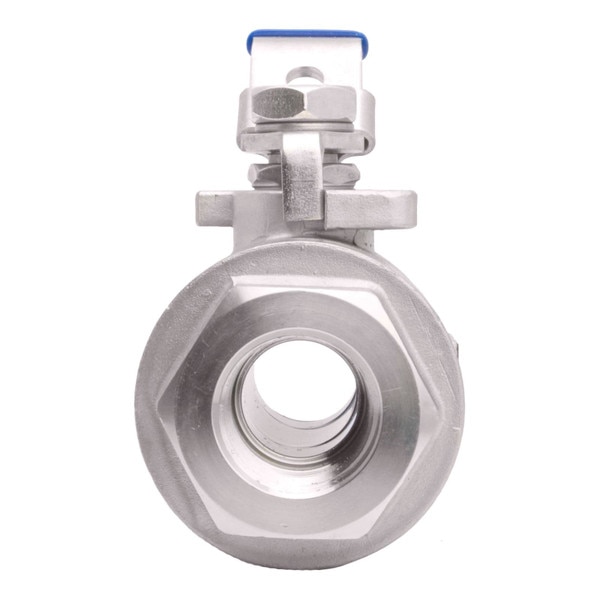

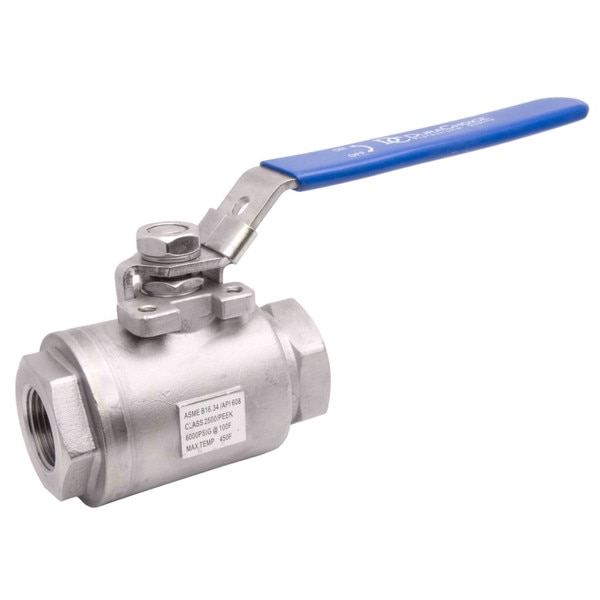

Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI

SKU: VBS6K

Manufacturer: DuraChoice

From: $70.54 to $469.26
  • VBS6K-025 1/4" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $70.54
  • VBS6K-038 3/8" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $70.54
  • VBS6K-050 1/2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $70.54
  • VBS6K-075 3/4" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $98.72
  • VBS6K-100 1" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $124.74
  • VBS6K-125 1-1/4"NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $193.05
  • VBS6K-150 1-1/2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $246.51
  • VBS6K-200 2" NPT Stainless Steel Seal-Welded Full Port Ball Valve, 6,000PSI
    Qty. $469.26
Items:0  |  Total:$0.00

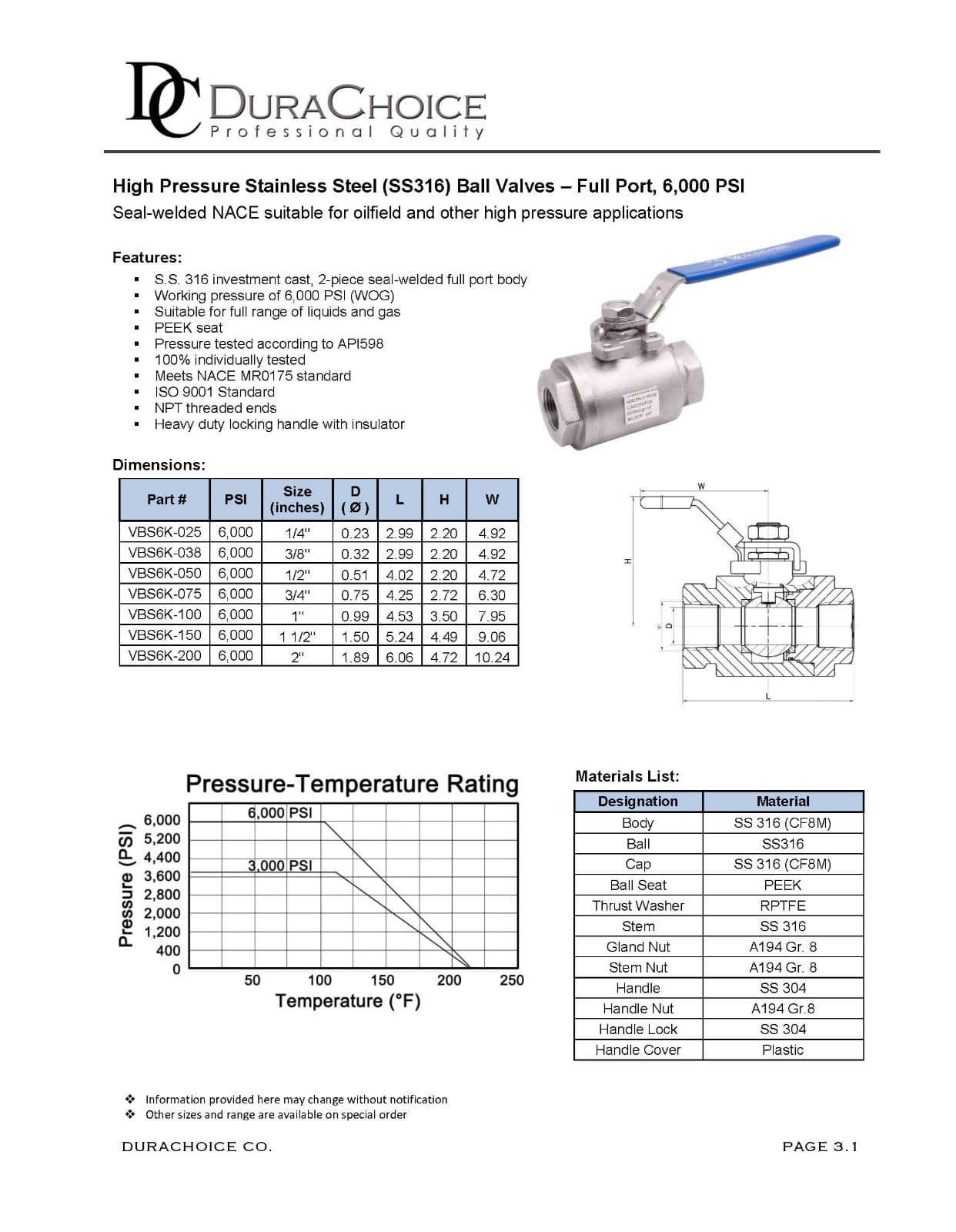

DESCRIPTION

High pressure valve with 6,000 PSI rating. Two-piece, stainless steel 316 body, seal-welded to improve strength.



  • 2-piece body wrought carbon full port design
  • Seal Welded for added structural stability
  • Working pressure of 6,000 psi (WOG)
  • Suitable for full range of liquids and gas
  • PEEK seat
  • Pressure tested according to API598
  • 100% individually tested
  • Meets NACE MR0175 standard
  • ISO 9001 standard
  • NPT threaded ends
  • Heavy duty locking handle with insulator
  • Temperature range: -40 to 400 degree Farenheit


DesignationMaterial

BodySS 316 (CF8M)

BallSS 316

CapSS 316 (CF8M)

Ball SeatPEEK

Thrust WasherRPTFE

StemSS 316

Gland NutA194 Gr. 8

Stem NutA194 Gr. 8

HandleSS 304

Handle NutA194 Gr.8

Handle LockSS 304

Handle CoverPlastic


Torque List

VBS6K-02518 N.M159 in-lb
VBS6K-03820 N.M177 in-lb
VBS6K-05021 N.M186 in-lb
VBS6K-07532 N.M283 in-lb
VBS6K-10040 N.M354 in-lb
VBS6K-12550 N.M442 in-lb
VBS6K-15055 N.M487 in-lb
VBS6K-200100 N.M885 in-lb
