  • 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount

2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount

SKU: PS254L

Manufacturer: DuraChoice

2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount

SKU: PS254L

Manufacturer: DuraChoice

From: $22.65 to $25.59
  • PS254L-015 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 15PSI
    Qty. $22.65
  • PS254L-030 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 30PSI
    Qty. $22.65
  • PS254L-060 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 60PSI
    Qty. $22.65
  • PS254L-100 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 100PSI
    Qty. $25.59
  • PS254L-160 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 160PSI
    Qty. $22.65
  • PS254L-200 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 200PSI
    Qty. $22.65
  • PS254L-300 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 300PSI
    Qty. $22.65
  • PS254L-400 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 400PSI
    Qty. $22.65
  • PS254L-600 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 600PSI
    Qty. $22.65
  • PS254L-K01 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 1000PSI
    Qty. $22.65
  • PS254L-K02 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 2000PSI
    Qty. $22.65
  • PS254L-K03 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 3000PSI
    Qty. $22.65
  • PS254L-K05 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 5000PSI
    Qty. $22.65
  • PS254L-K06 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 6000PSI
    Qty. $22.65
  • PS254L-K10 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 10000PSI
    Qty. $24.94
  • PS254L-K15 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 15000PSI
    Qty. $24.94
  • PS254L-V00 2-1/2" All Stainless Steel Oil Filled Vacuum Pressure Gauge - 1/4" NPT Lower Mount, -30HG/0PSI
    Qty. $24.94
  • PS254L-500 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 500PSI
    Qty. $22.65
  • PS254L-K015 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 1500PSI
    Qty. $22.65
  • PS254L-K04 2-1/2" All Stainless Steel Oil Filled Pressure Gauge - 1/4" NPT Lower Mount 4000PSI
    Qty. $22.65
  • PS254L-V15 2-1/2" All Stainless Steel Oil Filled Vacuum Pressure Gauge - 1/4" NPT Lower Mount, -30HG/15PSI
    Qty. $24.94
  • PS254L-V30 2-1/2" Oil Filled Vacuum Pressure Gauge - ALL SS 1/4" NPT Lower Mount -30HG/30PSI
    Qty. $24.94
  • PS254L-V60 2-1/2" Oil Filled Vacuum Pressure Gauge - ALL SS 1/4" NPT Lower Mount -30HG/60PSI
    Qty. $24.94
Items:0  |  Total:$0.00

DESCRIPTION

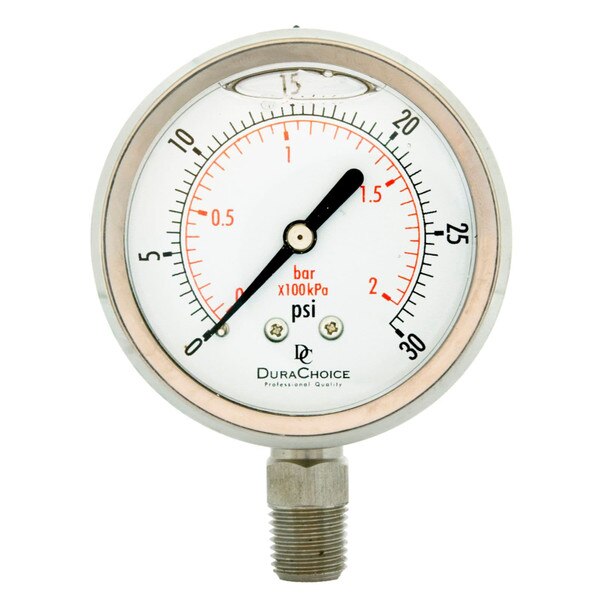

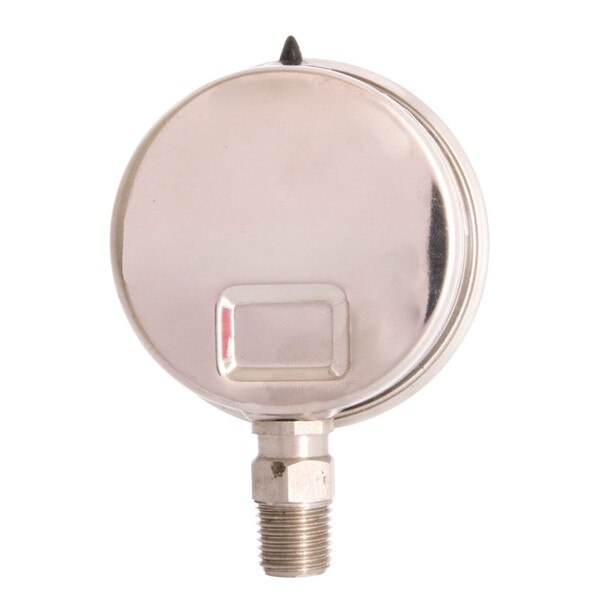

Our all stainless steel 2 1/2" liquid filled pressure gauges are some of the highest quality gauges on the market. Featuring a 1/4" NPT stainless steel lower mount connection, bourdon tube and movement, they are even more resistant to corrosion than their brass connection counterparts. The gauges are cased in stainless steel and filled with glycerin oil to help correct the effects of vibration and pulsation.


Pressure ranges available from vacuum to 15000 PSI. Good for use with water, oil, gas (WOG) and diesel. IP66 Rating

Dial Size:2-1/2" Dial Size (Crimped Casing)
Accuracy:+/- 2/1/2%
Scale:Dual Scale - PSI / Bar
Movement:Stainless Steel
Bourdon Tube:Stainless Steel
Window:Polycarbonate
Case:Stainless Steel case for protection in harsh environments
Connection:Stainless Steel Lower Mount; 1/4" NPT (for 2-1/2" dial)
Normal Ambient Temp.:-4F to +140F (-20C to +60C)
Liquid Filling:Glycerin oil filled to enhance the reliability and integrity;
 helps dampen the effect of vibration and pulsation;
 lubricates the movement and extends the life of gauge.
