  • 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

SKU: PB254B

Manufacturer: DuraChoice

8 Reviews
From: $9.49 to $10.21
  • PB254B-015 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-15PSI
    Qty. $9.49
  • PB254B-030 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-30PSI
    Qty. $9.49
  • PB254B-060 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-60PSI
    Qty. $9.49
  • PB254B-100 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-100PSI
    Qty. $9.49
  • PB254B-160 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-160PSI
    Qty. $9.49
  • PB254B-200 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-200PSI
    Qty. $9.49
  • PB254B-300 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-300PSI
    Qty. $9.49
  • PB254B-400 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-400PSI
    Qty. $9.49
  • PB254B-500 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-500PSI
    Qty. $9.49
  • PB254B-600 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-600PSI
    Qty. $9.49
  • PB254B-K01 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-1000PSI
    Qty. $9.49
  • PB254B-K015 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-1500PSI Low Stock - Chat or Call to check
    Qty. $9.49
  • PB254B-K02 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-2000PSI
    Qty. $9.49
  • PB254B-K03 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-3000PSI
    Qty. $9.49
  • PB254B-K04 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-4000PSI
    Qty. $9.49
  • PB254B-K05 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-5000PSI
    Qty. $9.49
  • PB254B-K06 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-6000PSI
    Qty. $9.49
  • PB254B-K10 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-10000PSI
    Qty. $10.21
  • PB254B-K15 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-15000PSI
    Qty. $10.21
  • PB254B-V00 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/0
    Qty. $10.21
  • PB254B-V15 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/15PSI
    Qty. $10.21
  • PB254B-V160 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/160PSI Low Stock - Chat or Call to check
    Qty. $10.21
  • PB254B-V30 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/30PSI
    Qty. $10.21
  • PB254B-V60 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/60PSI
    Qty. $10.21
  • PB254B-K075 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-7,500PSI
    Qty. $10.21
Items:0  |  Total:$0.00

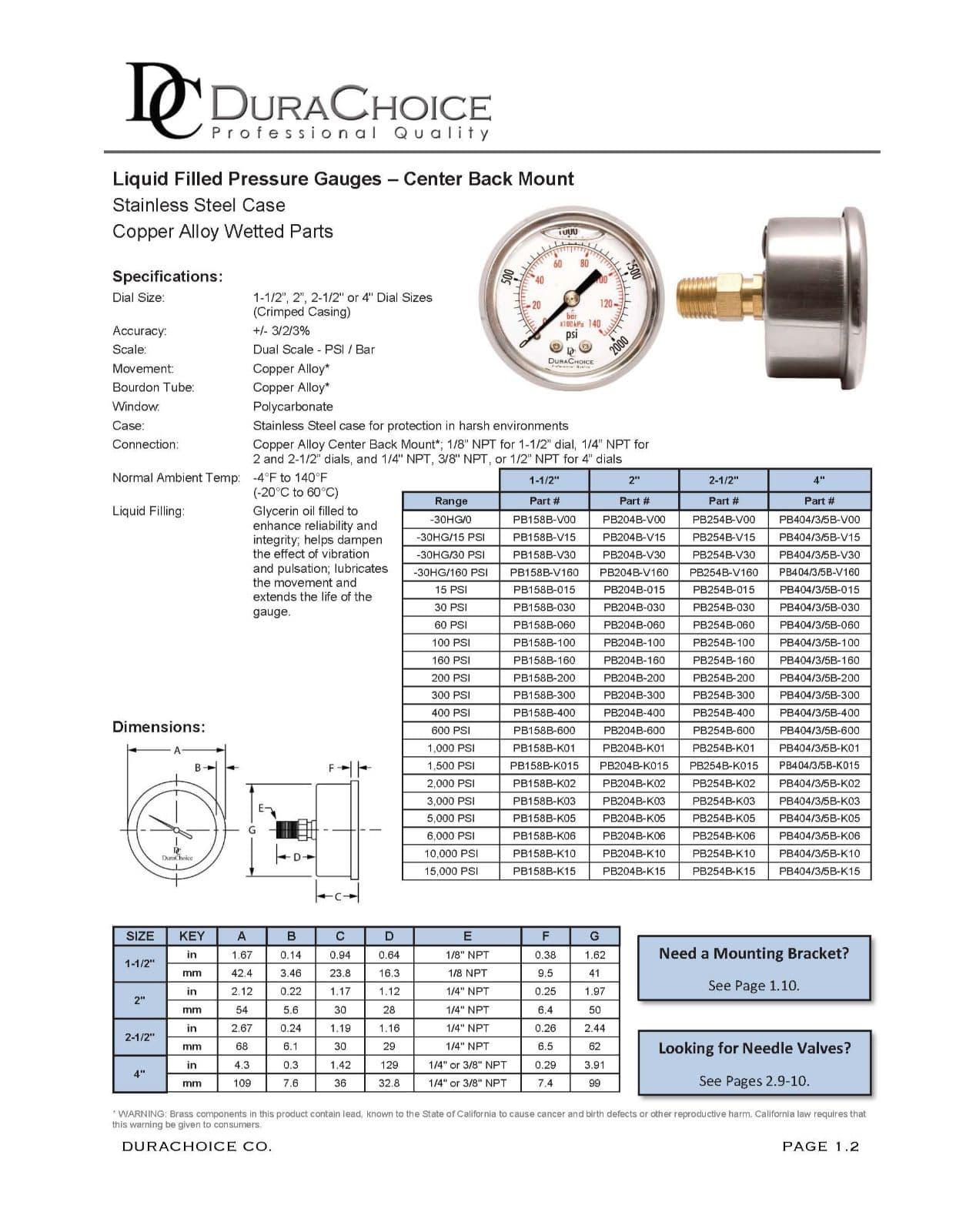

DESCRIPTION

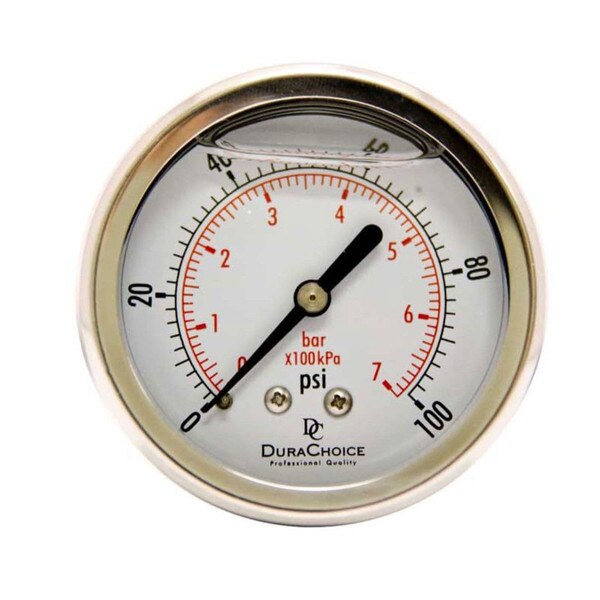

2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection
Please note: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers
One of our best selling gauges, these DuraChoice 2 1/2" stainless steel and brass manometers are liquid filled for longer service life. The filling helps protect against condensation, vibration and pulsation.
These oil filled pressure gauges have 1/4" copper alloy (brass) connections, movements and bourdon tubes inside stainless steel cases. The stainless steel casing helps protect the gauges against the elements.
Pressure ranges from vacuum to 15,000 psi, are available. Measures pressure in water, oil, gas and diesel, as well as other media.

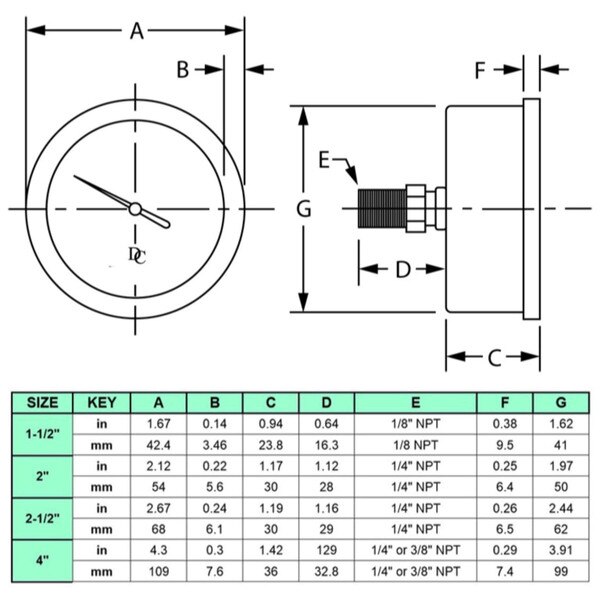

Dial Size:2-1/2" Dial Size (Crimped Casing)
Accuracy:+/- 3/2/3%
Scale:Dual Scale - PSI / Bar
Movement:Copper Alloy
Bourdon Tube: Copper Alloy
Window:Polycarbonate
Case:Stainless Steel case for protection in harsh environments

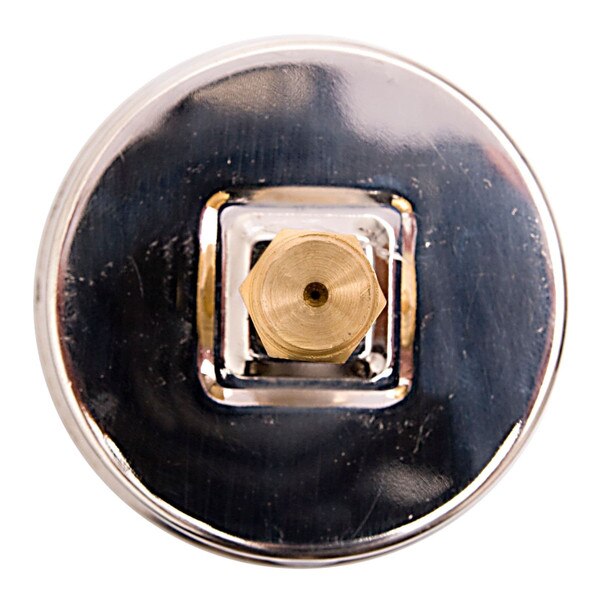

Connection:Copper Alloy Center Back Mount; 1/4" NPT (for 2-1/2" dial)
Normal Ambient
Temp.:-4F to +140F (-20C to +60C)
Liquid Filling:Glycerin oil filled to enhance the reliability and integrity;
 helps dampen the effect of vibration and pulsation;
 lubricates the movement and extends the life of gauge.



Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
