  • 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

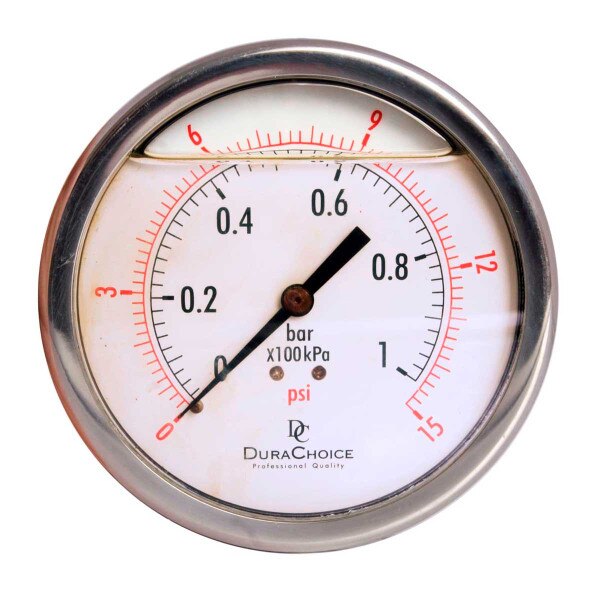

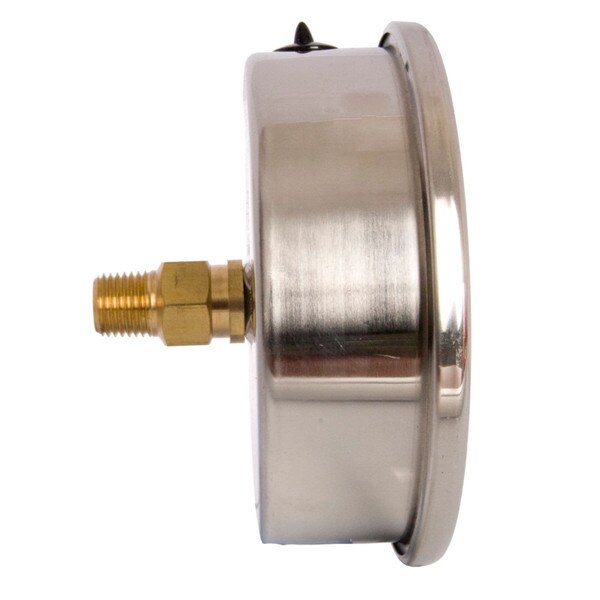

4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

SKU: PB404B

Manufacturer: DuraChoice

From: $28.52 to $32.27
  • PB404B-015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-15PSI
    Qty. $28.52
  • PB404B-030 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-30PSI
    Qty. $28.52
  • PB404B-060 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-60PSI
    Qty. $28.52
  • PB404B-100 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-100PSI
    Qty. $28.52
  • PB404B-160 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-160PSI
    Qty. $28.52
  • PB404B-200 4" Oil Filled Pressure Gauge - SS/Br 1/4" NPT Center Back 200PSI
    Qty. $28.52
  • PB404B-300 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-300PSI
    Qty. $28.52
  • PB404B-400 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-400PSI
    Qty. $28.52
  • PB404B-500 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-500PSI
    Qty. $28.52
  • PB404B-600 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-600PSI
    Qty. $28.52
  • PB404B-K01 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-1000PSI
    Qty. $28.52
  • PB404B-K015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-1500PSI
    Qty. $28.52
  • PB404B-K02 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-2000PSI
    Qty. $28.52
  • PB404B-K03 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-3000PSI
    Qty. $28.52
  • PB404B-K04 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-4000PSI
    Qty. $28.52
  • PB404B-K05 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-5000PSI
    Qty. $28.52
  • PB404B-K06 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-6000PSI
    Qty. $28.52
  • PB404B-K10 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-10000PSI
    Qty. $32.27
  • PB404B-K15 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection 0-15000PSI
    Qty. $32.27
  • PB404B-V00 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/0PSI
    Qty. $32.27
  • PB404B-V15 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/15PSI
    Qty. $32.27
  • PB404B-V30 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/30PSI
    Qty. $32.27
  • PB404B-V160 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/160PSI
    Qty. $32.27
  • PB404B-V60 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/60PSI
    Qty. $32.27
Items:0  |  Total:$0.00

DESCRIPTION

This 4" center back mount liquid filled gauge is great for large projects. The dial is legible from a distance and the stainless steel case is made for duty in harsh environments. The gauge has a 1/4" NPT brass connection as well as a brass bourdon tube and movement.

Liquid-filled pressure gauges resist vibration and pulsation better than dry gauges. Gauges are available in ranges from Vacuum to 0-15,000 PSI and can measure a variety of media, including water, oil, gas (WOG) or diesel.

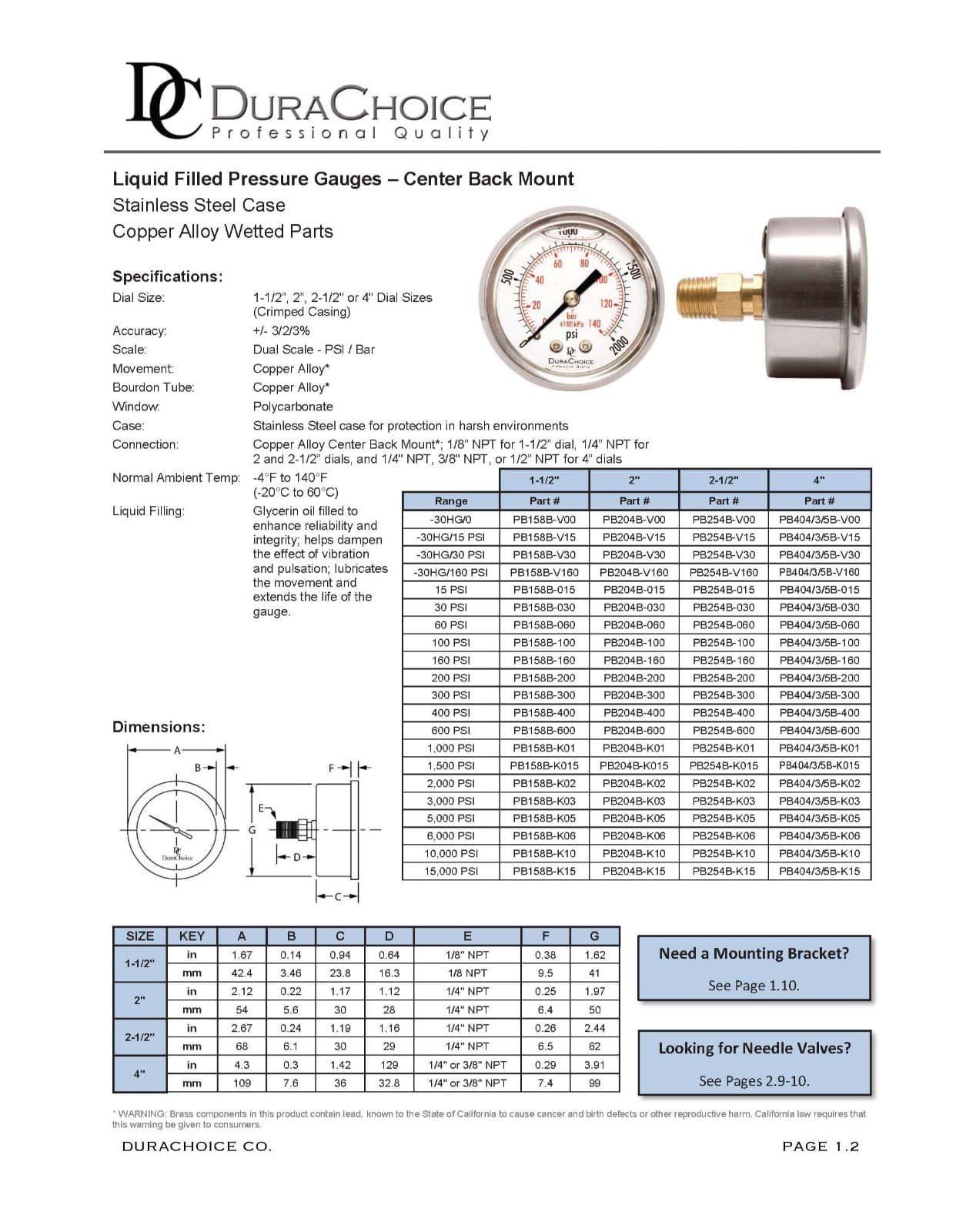

Features

Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)

Accuracy: +/- 3/2/3%

Scale: Dual Scale - PSI/Bar

Movement: Copper Alloy*

Bourdon Tube: Copper Alloy*

Window: Poly Carbonate

Case: Stainless Steel case for protection in harsh environments

Connection: Copper Alloy Center Back Mount*; 1/8" NPT for 1-1/2" dial, 1/4" NPT for 2" and 2-1/2" dials, and 1/4" NPT, 3/8 NPT, or 1/2" NPT for 4" dials.

Normal Ambient Temp: -4F to +140F (-20C to +60C)

Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of the gauge.

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
