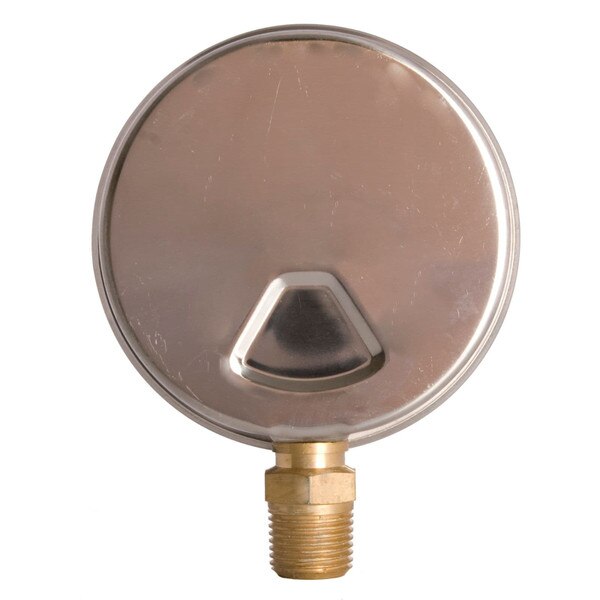

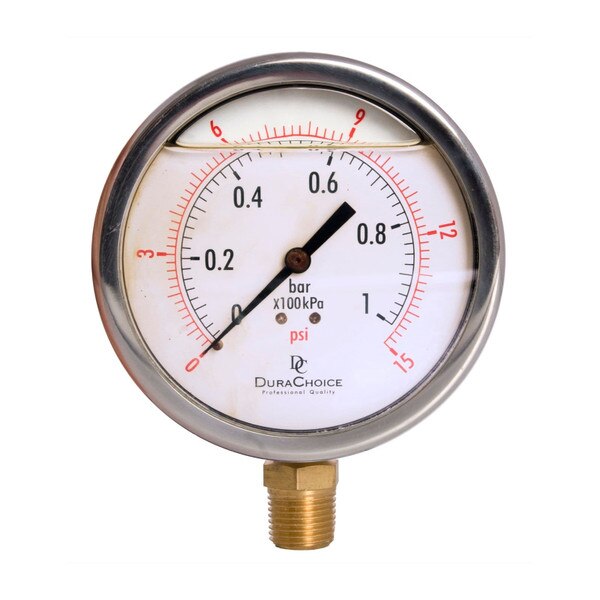

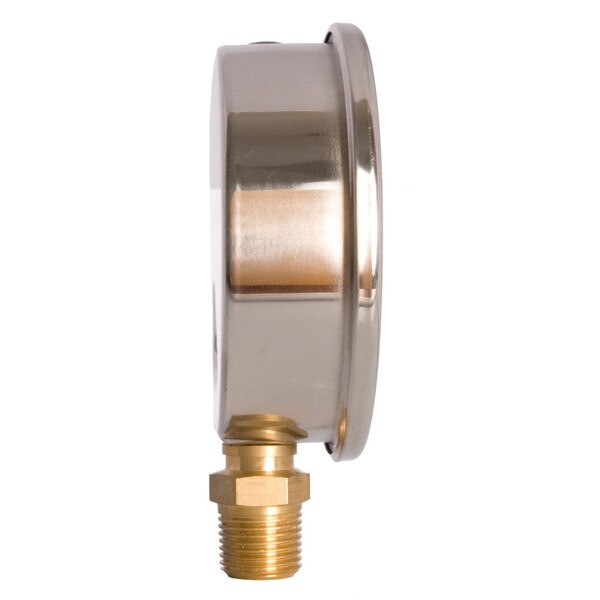

4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection

SKU: PB405L

Manufacturer: DuraChoice

From: $27.63 to $31.01
  • PB405L-015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-15PSI
    Qty. $27.63
  • PB405L-030 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-30PSI
    Qty. $27.63
  • PB405L-060 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-60PSI
    Qty. $27.63
  • PB405L-100 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-100PSI
    Qty. $27.63
  • PB405L-160 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-160PSI
    Qty. $27.63
  • PB405L-200 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-200PSI
    Qty. $27.63
  • PB405L-300 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-300PSI
    Qty. $27.63
  • PB405L-400 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-400PSI
    Qty. $27.63
  • PB405L-500 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-500PSI
    Qty. $27.63
  • PB405L-600 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-600PSI
    Qty. $27.63
  • PB405L-K01 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-1000PSI
    Qty. $27.63
  • PB405L-K015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-1500PSI
    Qty. $27.63
  • PB405L-K02 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-2000PSI
    Qty. $27.63
  • PB405L-K03 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-3000PSI
    Qty. $27.63
  • PB405L-K04 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-4000PSI
    Qty. $27.63
  • PB405L-K05 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-5000PSI
    Qty. $27.63
  • PB405L-K06 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-6000PSI
    Qty. $27.63
  • PB405L-K10 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-10000PSI
    Qty. $31.01
  • PB405L-K15 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, 0-15000PSI
    Qty. $31.01
  • PB405L-V00 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, -30HG/0PSI
    Qty. $31.01
  • PB405L-V15 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, -30HG/15PSI
    Qty. $31.01
  • PB405L-V160 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, -30HG/160PSI
    Qty. $31.01
  • PB405L-V30 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, -30HG/30PSI
    Qty. $31.01
  • PB405L-V60 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/2" NPT, Lower Mount Connection, -30HG/60PSI
    Qty. $31.01
Items:0  |  Total:$0.00

DESCRIPTION

These 4" liquid filled pressure gauges have large dials for easy readability. A protective stainless steel case with 1/2" bottom mount brass connections, bourdon tubes and movements make them useful in water, oil, gas (WOG) and hydraulic applications. Glycerin oil lengthens the life of the manometer by reducing internal vibration and lubricating the gauge's internals.

Manufactured by DuraChoice, these gauges are available in ranges from vacuum to 15,000 PSI, they are good for many media, including water, oil, diesel or gas.

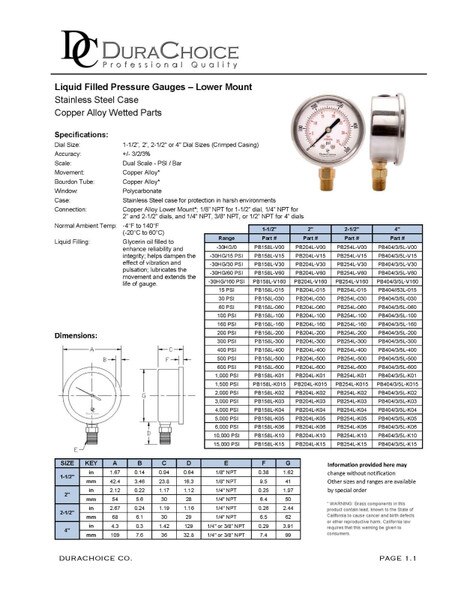

Features:
Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/Bar
Movement: Copper Alloy*
Tube: Copper Alloy*
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount*; 1/8" NPT for 1-1/2" dial, 1/4" NPT for 2" and 2-1/2" dials, and 1/4" NPT, 3/8" NPT, or 1/2" for 4" dials
Normal Ambient Temp: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation, lubricates the movement and extends the life of gauge .
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
