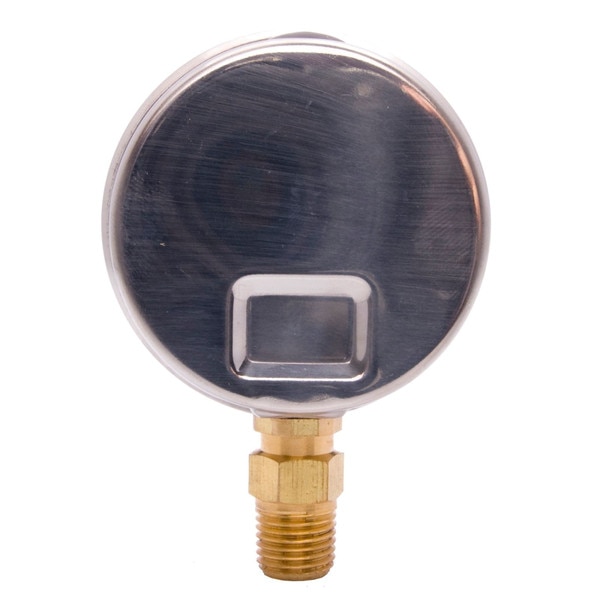

2-1/2" Liquid Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection
Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/Bar
Movement: Copper Alloy*
Bourdon Tube: Copper Alloy*
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount*; 1/8" NPT for 1-1/2" dial, 1/4" NPT for 2" and 2-1/2" dials, and 1/4" NPT, 3/8" NPT, or 1/2" NPT for 4" dials
Normal Ambient Temp: -4 to +140 Degrees F (-20 to +60 Degrees C)
Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge
Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection
Manufacturer: DuraChoice
DESCRIPTION
This is one of our best selling gauges. The 2-1/2" dial on these DuraChoice liquid filled pressure gauges is readable from a considerable distance. The stainless steel case protects against harsh environments and the glycerin filling promotes longer service life because it helps dampen vibration and pulsation. The glycerin also discourages condensation from forming and obscuring the readout.
As far as manometers go, this is a great choice for water, oil, gas (WOG), diesel or other hydraulic applications. This model is available in pressure ranges from vacuum to 15000 psi, as well as boost gauge models.
| Dial Size: | 2-1/2" Dial Size (Crimped Casing) | ||||
| Accuracy: | +/- 3/2/3% | ||||
| Scale: | Dual Scale - PSI / Bar | ||||
| Movement: | Copper Alloy | ||||
| Bourdon Tube: | Copper Alloy | ||||
| Window: | Polycarbonate | ||||
| Case: | Stainless Steel case for protection in harsh environments | ||||
| Connection: | Copper Alloy Lower Mount; 1/4" NPT (for 2-1/2" dial) | ||||
| Normal Ambient Temp.: | -4F to +140F (-20C to +60C) | ||||
| Liquid Filling: | Glycerin oil filled to enhance the reliability and integrity; | ||||
| helps dampen the effect of vibration and pulsation; | |||||
| lubricates the movement and extends the life of gauge. | |||||
Ratings & Reviews
1 review
high quality, very s
by Rod W
high quality, very satisfied
