2" Liquid Filled Pressure Gauges for water, oil, and gas (WOG) and diesel - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

• Dial Size:2" Dial Size (Crimped Casing)
• Accuracy: +/- 3/2/3%
• Scale: Dual Scale - PSI / Bar
• Movement: Copper Alloy
• Bourdon Tube: Copper Alloy
• Window: Poly-carbonate
• Case: Stainless Steel case for protection in harsh environments

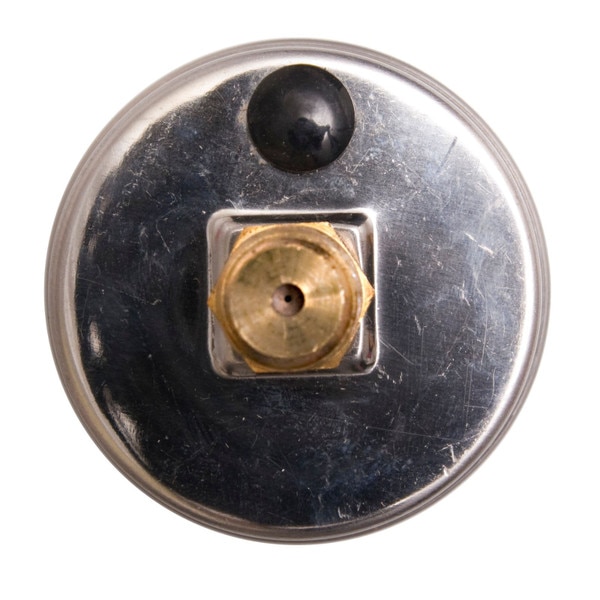

• Connection: Copper Alloy Center Back Mount; 1/4" NPT (for 2" dial)
• Normal Ambient Temp.: -4F to +140F (-20C to +60C)
• Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.

2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

SKU: PB204B

Manufacturer: DuraChoice

From: $10.15 to $10.15

PB204B-015 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-15PSI
Qty. $10.15
PB204B-030 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-30PSI
Qty. $10.15
PB204B-060 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-60PSI
Qty. $10.15
PB204B-100 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-100PSI
Qty. $10.15
PB204B-160 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-160PSI
Qty. $10.15
PB204B-200 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-200PSI
Qty. $10.15
PB204B-300 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-300PSI
Qty. $10.15
PB204B-400 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-400PSI
Qty. $10.15
PB204B-500 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-500PSI
Qty. $10.15
PB204B-600 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-600PSI
Qty. $10.15
PB204B-K01 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-1000PSI
Qty. $10.15
PB204B-K02 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-2000PSI
Qty. $10.15
PB204B-K03 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-3000PSI
Qty. $10.15
PB204B-K04 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-4000PSI
Qty. $10.15
PB204B-K05 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-5000PSI
Qty. $10.15
PB204B-K06 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-6000PSI
Qty. $10.15
PB204B-K10 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-10000PSI
Qty. $10.15
PB204B-K15 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-15000PSI
Qty. $10.15
PB204B-V00 2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/0
Qty. $10.15
PB204B-V15 2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/15PSI
Qty. $10.15
PB204B-V160 2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/160PSI
Qty. $10.15
PB204B-V30 2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/30PSI
Qty. $10.15
PB204B-V60 2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/60PSI
Qty. $10.15
PB204B-K015 2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-1500PSI
Qty. $10.15

Items:0 | Total:$0.00

DESCRIPTION

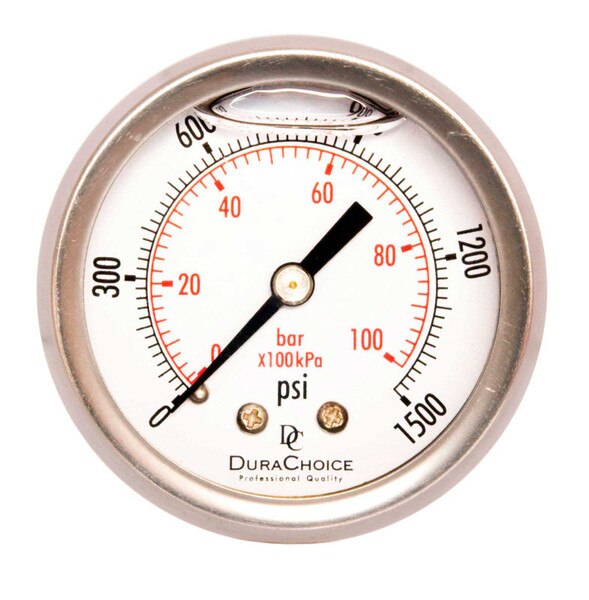

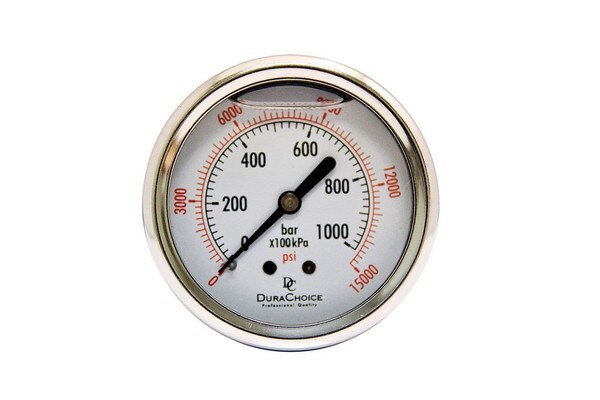

DuraChoice's 2" center back mount liquid filled gauge is made for work in harsh environments. This DuraChoice 2" center back mount liquid filled gauge is cased in stainless steel with a poly-carbonate window. Each gauge has a 1/4" brass connection, bourdon tube and movement.

Glycerin oil improves gauge life by reducing vibration and condensation, while the stainless steel case provides greater protection in adverse conditions. These oil-filled pressure gauges are available in ranges from Vacuum to 15,000 PSI. They are good for water,oil, gas (WOG) and diesel.

Features
Dial Size: 2" Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Poly-carbonate
Case: Stainless Steel case for projection in harsh environments
Connection: Copper Alloy Center Back Mount; 1/4" NPT (for 2" dial)
Normal Ambient Temp: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation, lubricates the movement and extends the life of gauge.

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
