1-1/2" Utility Pressure Gauge for water, oil, and gas (WOG) - Black Steel 1/8" NPT Center Back Mount

SKU: PA158B

Manufacturer: DuraChoice

3 Reviews

1-1/2" Utility Pressure Gauge for water, oil, and gas (WOG) - Black Steel 1/8" NPT Center Back Mount

SKU: PA158B

Manufacturer: DuraChoice

From: $3.97 to $4.22
  • PA158B-015 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-15PSI
    Qty. $4.02
  • PA158B-030 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-30PSI
    Qty. $4.02
  • PA158B-060 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-60PSI
    Qty. $4.02
  • PA158B-100 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-100PSI
    Qty. $4.02
  • PA158B-160 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-160PSI
    Qty. $4.02
  • PA158B-200 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-200PSI
    Qty. $4.02
  • PA158B-300 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-300PSI Low Stock - Chat or Call to check
    Qty. $4.02
  • PA158B-400 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-400PSI
    Qty. $3.97
  • PA158B-500 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-500PSI
    Qty. $4.02
  • PA158B-600 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-600PSI
    Qty. $4.02
  • PA158B-K01 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-1000PSI
    Qty. $4.02
  • PA158B-K03 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-3000PSI
    Qty. $4.02
  • PA158B-K04 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-4000PSI
    Qty. $4.02
  • PA158B-K05 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-5000PSI
    Qty. $4.02
  • PA158B-K06 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-6000PSI
    Qty. $4.02
  • PA158B-V00 1-1/2" Utility Vacuum Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, -30HG/0PSI
    Qty. $4.22
  • PA158B-V30 1-1/2" Utility Vacuum Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, -30HG/30PSI
    Qty. $4.22
  • PA158B-K02 1-1/2" Utility Pressure Gauge, WOG, Black Steel Case, 1/8" NPT, Center Back Mount, 0-2000PSI
    Qty. $4.02
Items:0  |  Total:$0.00

DESCRIPTION

DuraChoice Brand Dry Utility Gauges are some of the best in the business. Wrapped in a black steel case and featuring a glass window, these dry gauges are as rugged as any in the market today at a fraction of the cost. Our selection ranges from vacuum to 6,000 PSI (WOG). These gauges can be used to measure pressure in water, oil, gas and diesel, among other media. DuraChoice dry gauges are designed with visibility in mind. The dual scale gauges are highly legible, with black and red numbering on a white face.

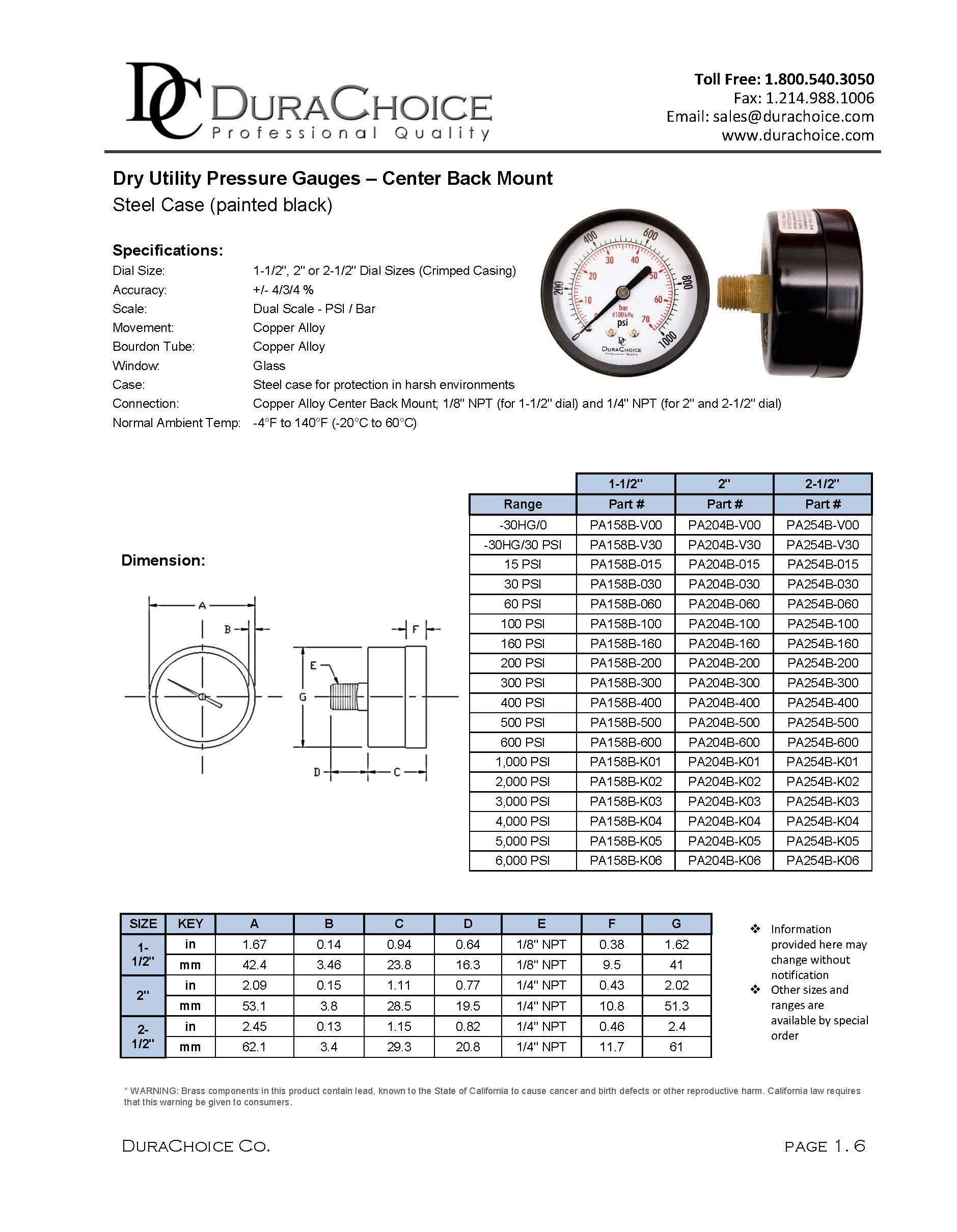

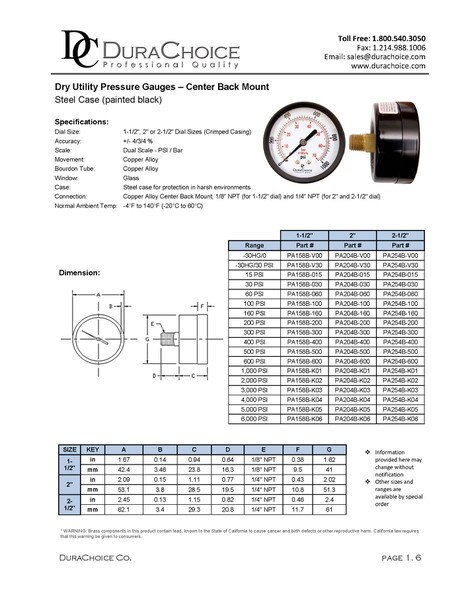

Features

Dial Size: 1-1/2", 2", 2-1/2" Dial Sizes (Crimped Casing)

Accuracy: +/- 4/3/4%

Scale: Dual Scale - PSI/Bar

Movement: Copper Alloy

Bourdon Tube: Copper Alloy

Window: Glass

Case: Steel case for protection in harsh environments

Connection: Copper Alloy Center Back Mount; 1/8" NPT (for 1-1/2" dial) and 1/4" NPT (for 2" and 2-1/2" dial)

Normal Ambient Temp: -4F to 140F (-20C to +60C)

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
