• Working pressure of 1,000 PSI (WOG)
• ISO-5211 mounting pad for actuator
• Suitable for full range of liquids and gas
• PTFE seals and seats
• Temperature range: -40 to 400 Degrees F
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• Heavy duty stainless steel handle
• Female x Female NPT threaded ends to ANSI B1.20.1
• Heavy duty locking handles with blue vinyl insulator
Torque Data (Size, Torque NM)
1/4”, 5-8 NM
3/8”, 5-8 NM
1/2”, 5-8 NM
3/4”, 9-12 NM
1”, 14-18 NM
1 1/4”, 15-23 NM
1 1/2”, 25-32 NM
2”, 35-44 NM

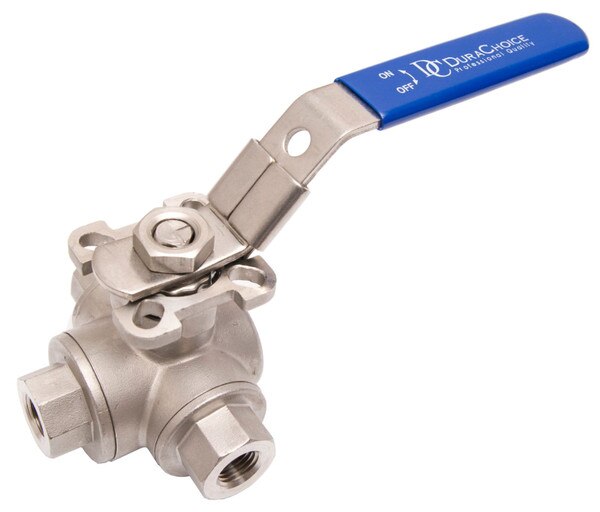

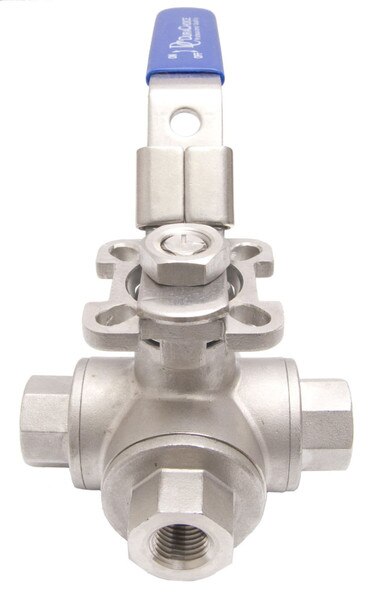

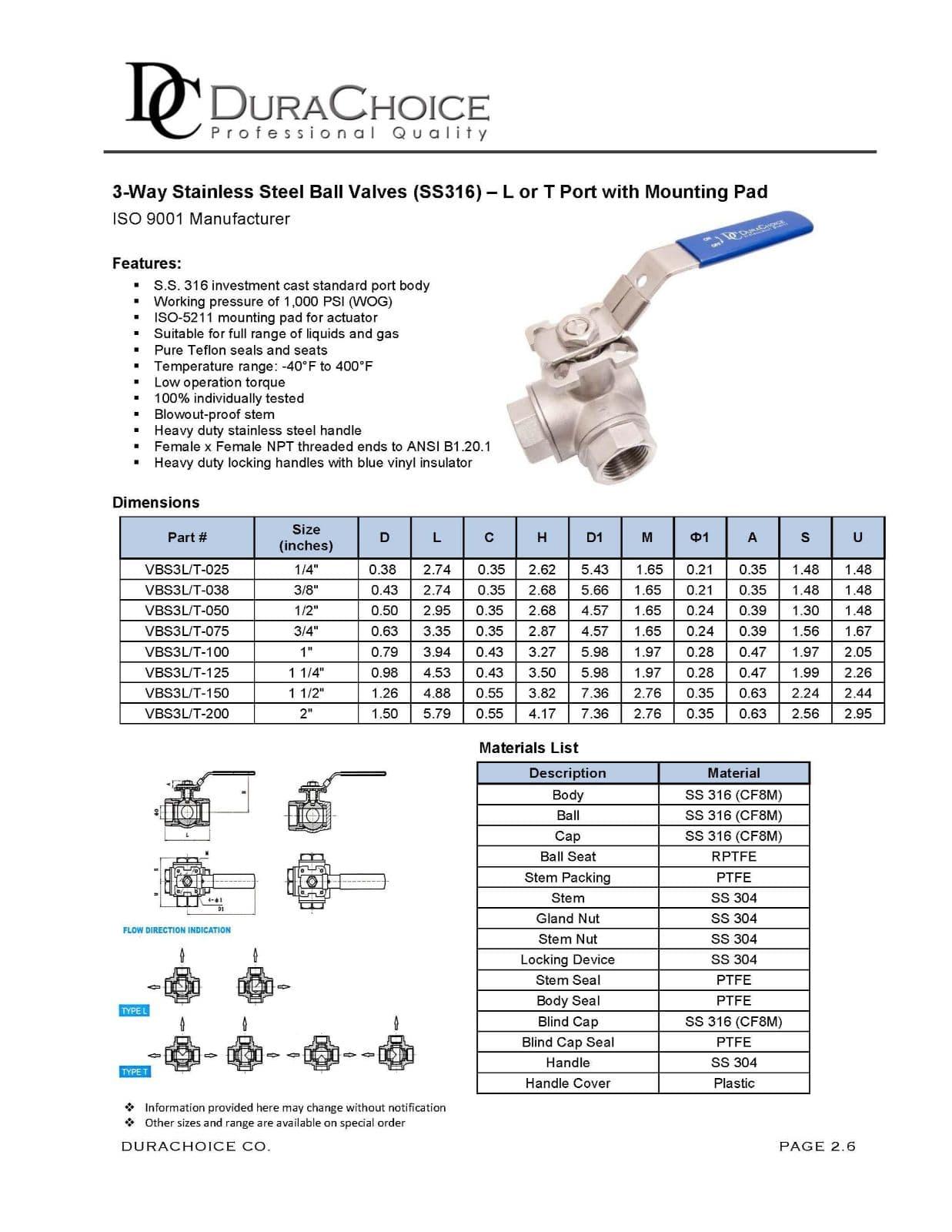

Stainless Steel (316) 3-Way Ball Valve - L Port With Mounting Pad - 1,000 PSI (WOG)
Manufacturer: Durachoice
DESCRIPTION
Three Way (3-way) Ball Valves, also known as directional ball valves, multi-port ball valves and diverting ball valves, are the easiest way to change the direction of flow in plumbing systems. Available in L-Port and T-Port configurations, the valves can switch flow from one line to another or open all three ports so that fluids or gas run from one line into two.
The T-port 3 way stainless steel ball valve (VBS3T) also serves as a mixing valve, bringing together two sources to be mixed in the outflow pipe. The L-port 3 way stainless steel ball valve (VBS3L) is a directional valve with a full shut-off capability, something the T-port does not do without modification.
Torque Data (Size, Torque NM)
1/4”, 5-8 NM
3/8”, 5-8 NM
1/2”, 5-8 NM
3/4”, 9-12 NM
1”, 14-18 NM
1 1/4”, 15-23 NM
1 1/2”, 25-32 NM
2”, 35-44 NM
