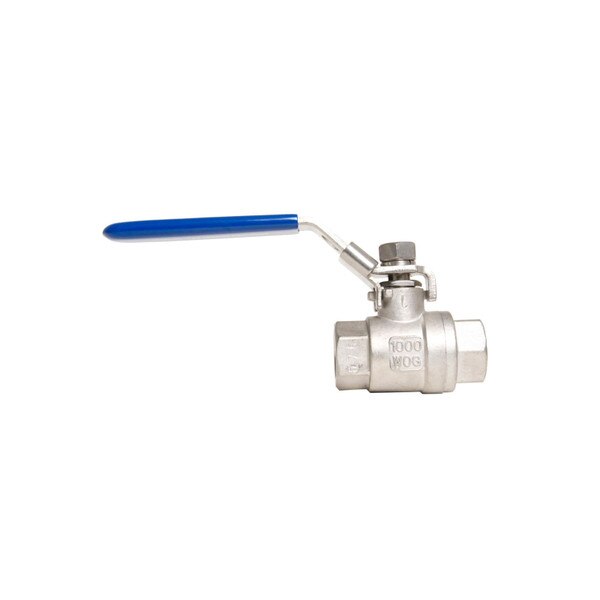

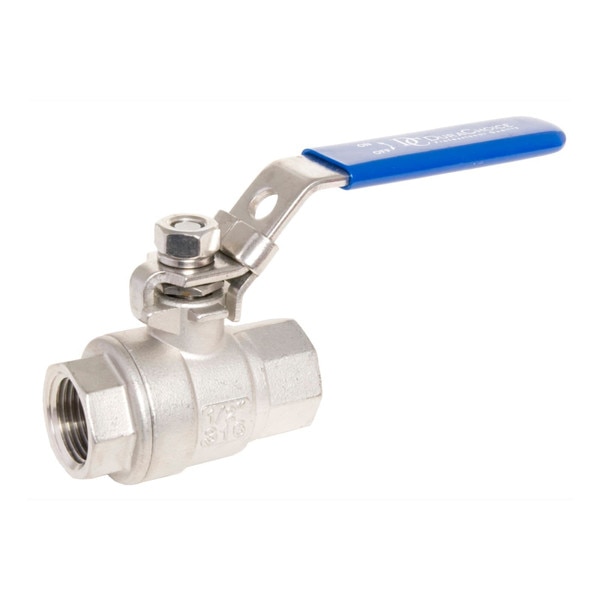

Stainless Steel (316) Ball Valve - Full Port Body, 1,000 PSI (WOG)

SKU: VBS02

Manufacturer: DuraChoice

From: $16.45

3 Reviews

Stainless Steel (316) Ball Valve - Full Port, 1,000 PSI (WOG)

• Two-Piece Investment cast body S.S. 316

• Working Pressure 1,000 PSI (WOG)

• Minimal pressure drop due to large full size ports

• Suitable for full range of liquids and gas

• Temperature range : -40 to 400 degree Fahrenheit

• Low operation torque

• 100% individually tested

• Blowout-proof stem

• FxF NPT Threaded ends to ANSI B1.20.1

• Heavy duty locking handles with blue vinyl insulator

Stainless Steel (316) Ball Valve - Full Port Body, 1,000 PSI (WOG)

Manufacturer: DuraChoice

DESCRIPTION

One of the most popular stainless steel 316 valves that we offer is the VBS02. This full port two-piece design offers maximum flow to reduce cavitation.

The valve is used in a variety of industries because of its design and stainless steel makeup.

This valve works well in virtually all applications up to 1000 psi.

Two-Piece Investment cast body SS316
Working Pressure 1,000 psi (WOG)
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
100% individually tested
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles with blue vinyl insulator

Designation	Material
Body	SS 316 (CF8M)
Ball	SS 316 (CF8M)
Cap	SS 316 (CF8M)
Seat	RPTFE
Thrust Washer	304
Stem Packing	PTFE
Stem	SS 316
Body Seal	PTFE
Gland Nut	SS 304
Stem Nut	SS 304
Stem Seal	PTFE
Handle	SS 304
Handle Cover	Plastic
