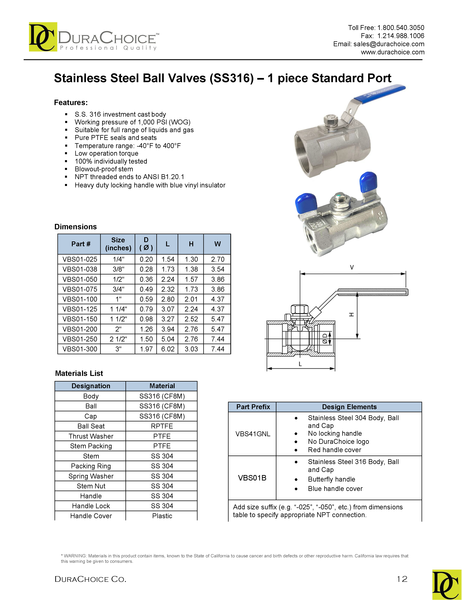

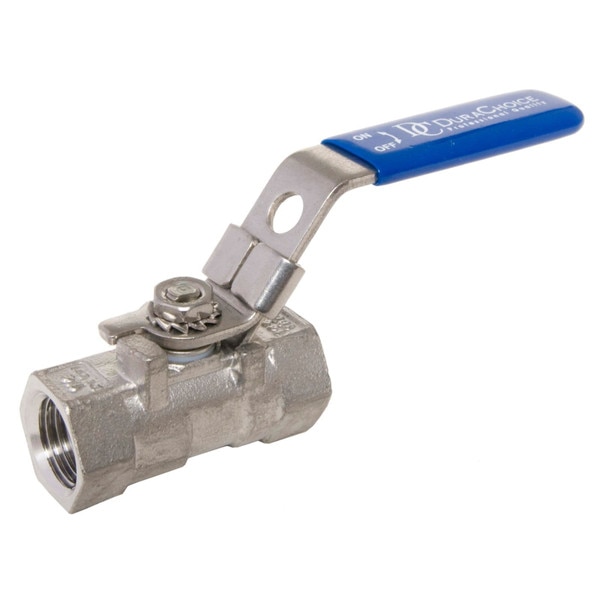

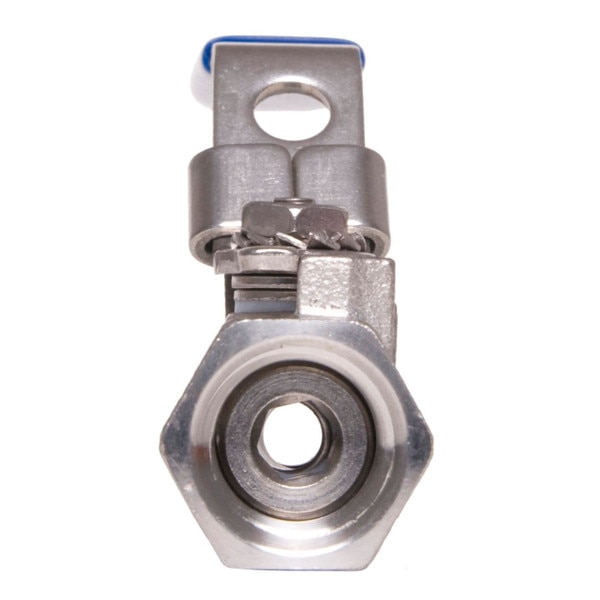

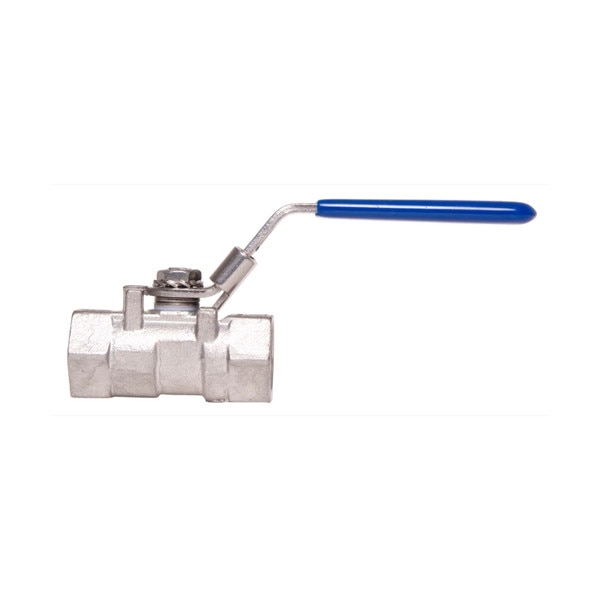

Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (WOG)
• S.S. 316 Investment Casting Body
• Working Pressure 1,000 PSI (WOG)
• PTFE seals and seats
• Suitable for full range of liquids and gas
• Temperature range: -60 to 450 degree Fahrenheit
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• FxF NPT Threaded ends (ANSI B1.20.1)
• Heavy duty locking handles with blue vinyl insulator
Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (WOG)
SKU: VBS01
Manufacturer: DuraChoice
DESCRIPTION
Our Stainless Steel (316) Standard Port Ball Valve, VBS01 line, is ready for action, with a 1,000 PSI rating, pure PTFE seats and seals, and a locking handle for added safety. Works with a wide variety of liquids and gasses.
• SS316 Investment Casting Body
• Working Pressure 1,000 PSI (WOG)
• PTFE seals and seats
• Suitable for full range of liquids and gas
• Temperature range: -60 to 450 degree Fahrenheit
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• FxF NPT Threaded ends (ANSI B1.20.1)
• Heavy duty locking handles with blue vinyl insulator
Description - Material
Body - SS316 (CF8M)
Ball - SS316 (CF8M)
Cap - SS316 (CF8M)
Ball Seat - RPTFE
Thrust Washer - PTFE
Stem Packing - PTFE
Stem - SS 304
Packing Ring - SS 304
Spring Washer - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Lock - SS 304
Handle Cover - Plastic
Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
• SS316 Investment Casting Body
• Working Pressure 1,000 PSI (WOG)
• PTFE seals and seats
• Suitable for full range of liquids and gas
• Temperature range: -60 to 450 degree Fahrenheit
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• FxF NPT Threaded ends (ANSI B1.20.1)
• Heavy duty locking handles with blue vinyl insulator
Description - Material
Body - SS316 (CF8M)
Ball - SS316 (CF8M)
Cap - SS316 (CF8M)
Ball Seat - RPTFE
Thrust Washer - PTFE
Stem Packing - PTFE
Stem - SS 304
Packing Ring - SS 304
Spring Washer - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Lock - SS 304
Handle Cover - Plastic
Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
