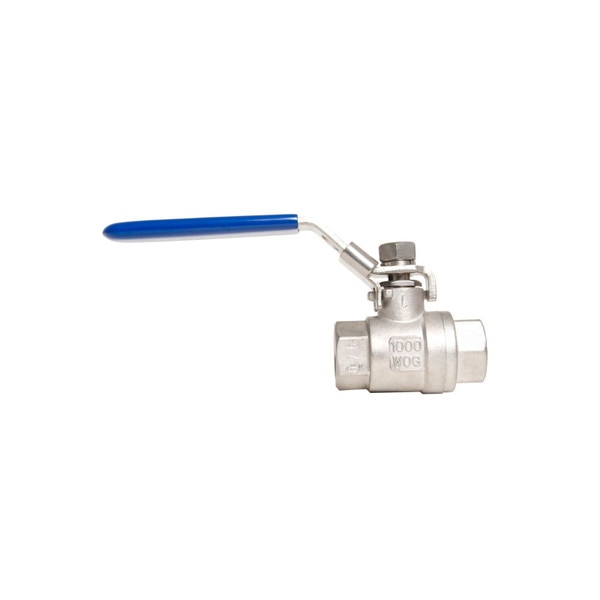

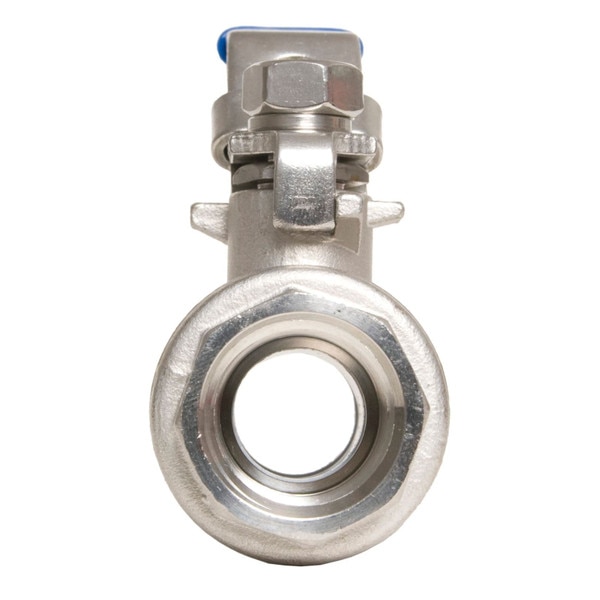

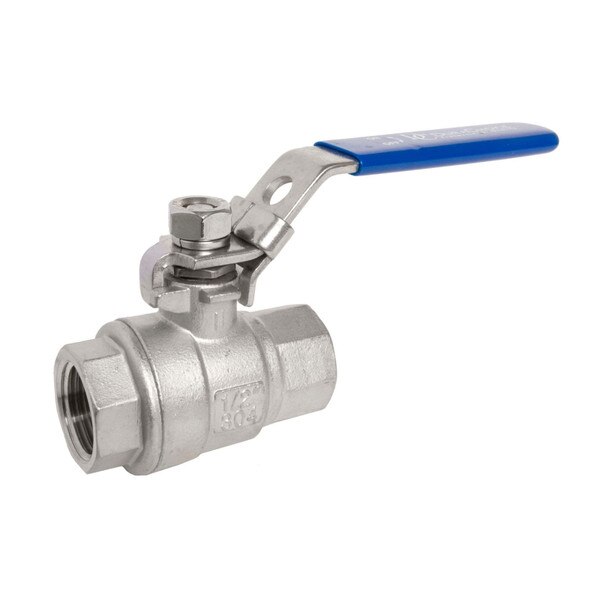

DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG Heavy Duty for Water, Oil, and Gas with Blue Locking Handles, NPT.

SKU: VBS42

Manufacturer: DuraChoice

8 Reviews
From: $8.97 to $637.10
  • VBS42-025 1/4" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $9.98
  • VBS42-038 3/8" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $9.98
  • VBS42-050 1/2" DuraChoice SS 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $8.97
  • VBS42-075 3/4" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $19.25
  • VBS42-100 1" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $21.03
  • VBS42-125 1-1/4"DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $39.45
  • VBS42-150 1-1/2" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $57.22
  • VBS42-200 2" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $69.82
  • VBS42-250 2-1/2" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection Low Stock - Chat or Call to check
    Qty. $219.83
  • VBS42-300 3" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection
    Qty. $278.85
  • VBS42-400 4" DuraChoice 304 Stainless Steel Ball Valve - Full Port, 1000 WOG for Water, Oil, and Gas with Blue Locking Handles, NPT Connection Low Stock - Chat or Call to check
    Qty. $637.10
Items:0  |  Total:$0.00

DESCRIPTION

The same style and specifications as the VBS02 in Stainless Steel 304. The two-piece full port design allows for unimpeded flow, minimal pressure drop and less fluid separation.

S.S. 304 investment casting body
Working Pressure of 1,000 PSI (WOG)
Minimal pressure drop due to large full-size ports
Suitable for full range of liquids and gas
Temperature range: -40°F to 400°F
Low operation torque
100% individually tested
Blowout-proof stem
NPT threaded ends to ANSI B1.20.1
Heavy duty locking handles with blue vinyl insulator


Designation - Material
Body - SS 304/ CF8
Ball - SS 304/ CF8
Cap - SS 304/ CF8
Seat - RPTFE
Thrust Washer - SS 304/ CF8
Stem Packing - PTFE
Stem - SS 304/ CF8
Body Seal - PTFE
Gland Nut - SS 304/ CF8
Stem Nut - SS 304/ CF8
Stem Seal - PTFE
Handle - SS 304/ CF8
Handle Cover - Plastic
