Stainless Steel 316 In Line Spring Check Valve - 150 lb Class

SKU: VCSL1

Manufacturer: DuraChoice

4 Reviews
From: $22.54 to $297.68
  • VCSL1-025 1/4" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $22.54
  • VCSL1-038 3/8" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $22.54
  • VCSL1-050 1/2" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $22.54
  • VCSL1-075 3/4" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $29.08
  • VCSL1-100 1" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $37.62
  • VCSL1-125 1-1/4" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $52.47
  • VCSL1-150 1-1/2" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $65.52
  • VCSL1-200 2" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $92.11
  • VCSL1-250 2-1/2" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $108.39
  • VCSL1-300 3" Stainless Steel (316) In Line Spring Check Valve - 150 LB Class
    Qty. $203.18
  • VCSL1-400 4" Stainless Steel (316) In Line Spring Check Valve - 150LB Class
    Qty. $297.68
Items:0  |  Total:$0.00

DESCRIPTION

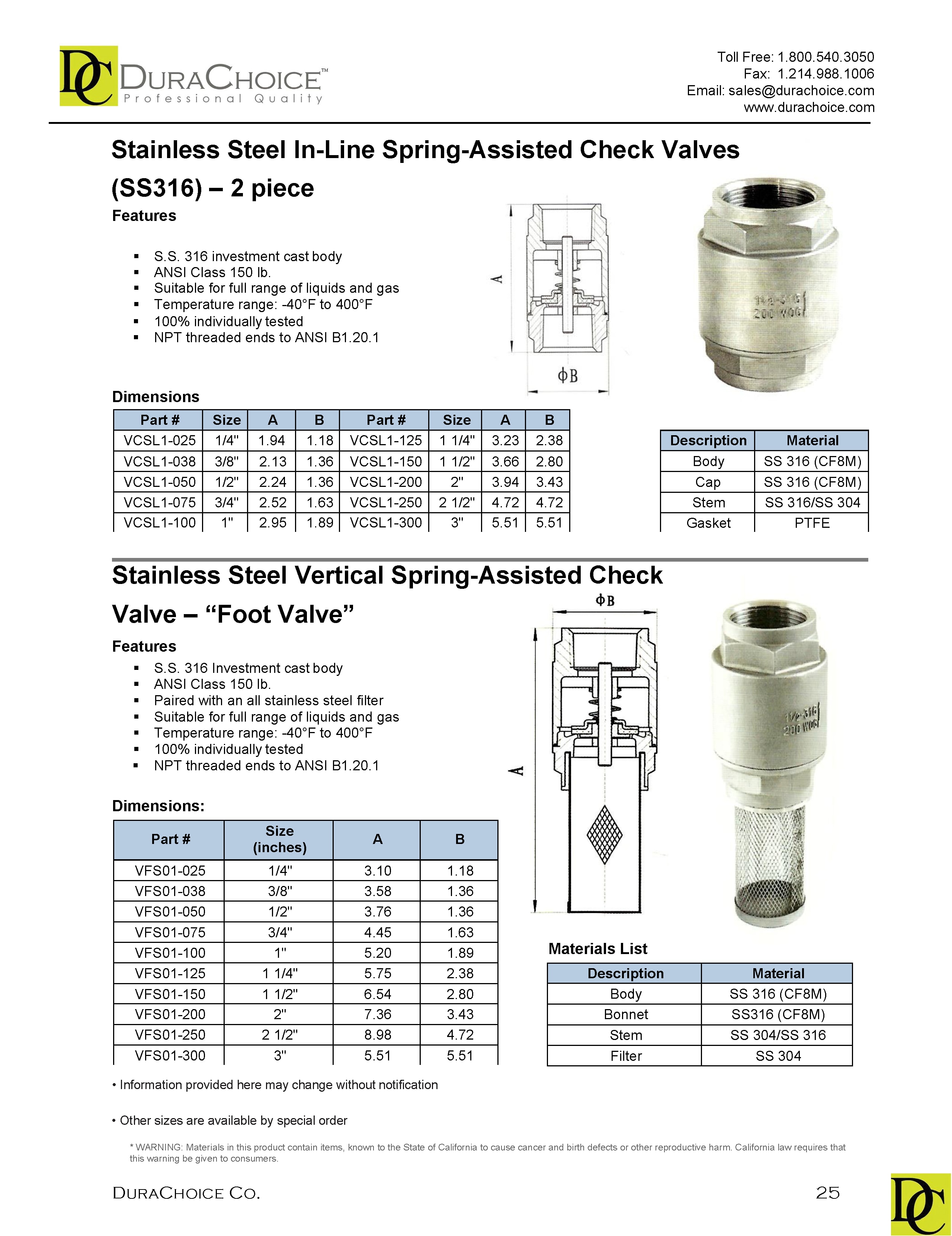

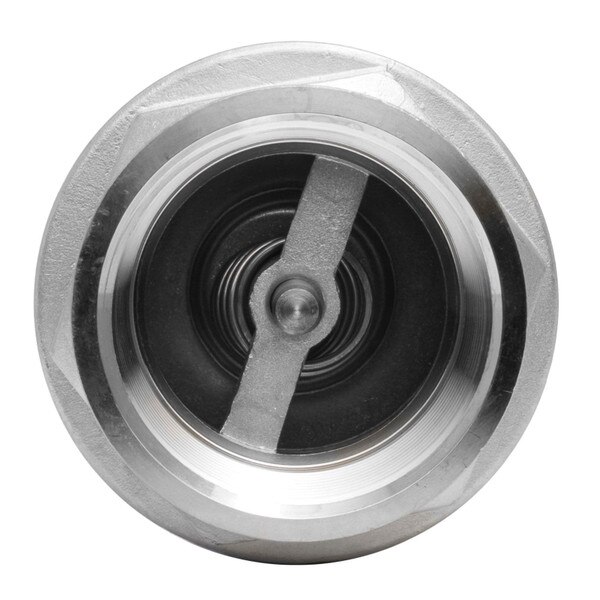

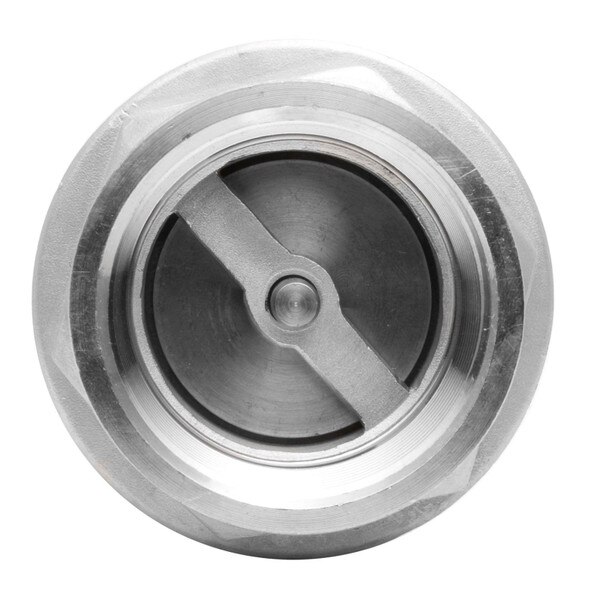

Stainless Steel (316) In Line Spring Check Valve - 150 lb. Class
The DuraChoice line of Stainless Steel In-Line Spring Assisted Check Valves are made for backflow prevention. The internal spring creates a fast and firm seal, while regulating the valves cracking pressure at 3-5 lbs. The valve itself is rated at ANSI Class 150 lb. This type of valve is also known as a disc check, silent check or nozzle check valve.


Two-piece S.S. 316 investment casting body
ANSI Class 150 lb.; 200 PSI/WOG
Suitable for full range of liquids and gas (WOG)
Temperature range: -40°F to 400°F
100% individually tested
NPT threaded ends to ANSI B1.20.1


Designation - Material
Body - SS 316/ CF8M
Cap - SS 316/ CF8M
Stem - SS 316/SS 304
Gasket - PTFE
